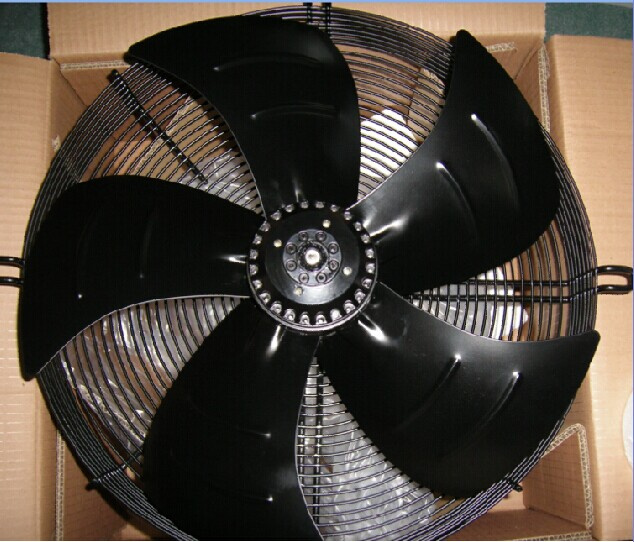

Ywf4e-450 220V CE Approved Axial Fan Motor

Name: Ywf4e-450 220V CE Approved Axial Fan Motor
Brand: all-electronics-online.com
SKU: 661826572
Availability: InStock
Rating: 4.4 (28 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB
Min Order:	300/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YWF4E-450
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	450mm
Voltage:	220V
Frequency:	50Hz
Certificate:	CE, CCC
Application:	Household Appliances
Operating Speed:	Adjust Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Starting Mode:	Direct on-line Starting
Species:	Evaporator
Brand:	Retekool

Product Description

Ywf4e-450 220V CE Approved Axial Fan Motor

Axial fan, Axial fan motor(external fan motor), fan motor, axial fan, axial motor.
Voltage: 220V/380V
Frequency: 50Hz/60Hz
Dia: 200mm-700mm

The insulation level of the axial fan is B or F
The standard length of the electrical wire on the fan is 1.5m
The average service life of motors is over 30, 000 hours
All motors got CE approved
For industrial use

The fan rotor is directly welded by rotor and blade, it adopts double-sided dynamic balance, and the dynamic balance achieved G6.3.
The fan blade, rotor and grid are all powder sprayed, the surface is smooth, bright and corrosion-resistant. The motor cover is also special handled, which helps the cover free from oxidized.
Fan normal ambient temperature:-25°C~+60°C.
The current insulation grades supplied are B-class, F-class and H-class, and protection class is IP54.

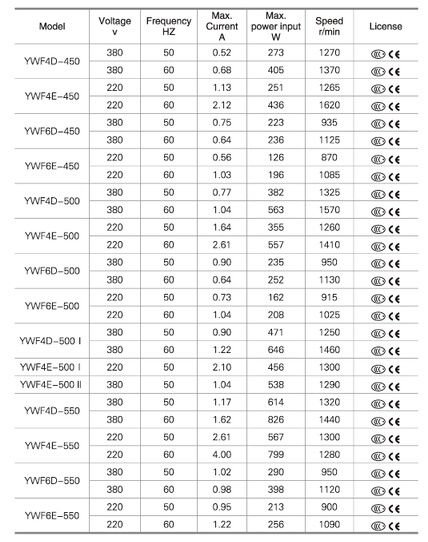

Technical Data about 450mm Axial Fan

Model	Voltage	Frequency	Current	Input power	Speed	Noise	Capacitor	Air volume
	V	Hz	A	W	r/min	dB	μF	m³/h
YWF4D-450	380	50	0.55	250	1360	70	-
YWF4D-450	400	60	0.7	350	1500	72	-	4900
YWF4E-450	220	50	1.15	250	1380	70	8
YWF4E-450	230	60	1.8	400	1500	72	10
YWF6D-450	380	50	0.75	150	950	55	-	3480
YWF6D-450	400	60	0.58	175	1100	58	-
YWF6E-450	220	50	0.45	105	920	55	4
YWF6E-450	230	60	1.05	180	1100	58	4

Customization

1).We can provide you with motors of special requirements: special voltage, double or three speed etc.
2).The cable can be directly leaded out, and we can provide water-proof junction box for your selection.
3). We can supply the fan of working environment temperature:-40°C~+60°C and -25°C~+80°C. All fans can install thermal protection.
4).we have various grilles, blade shapes and colors.

More information please email us, we will reply as soon as possible.
