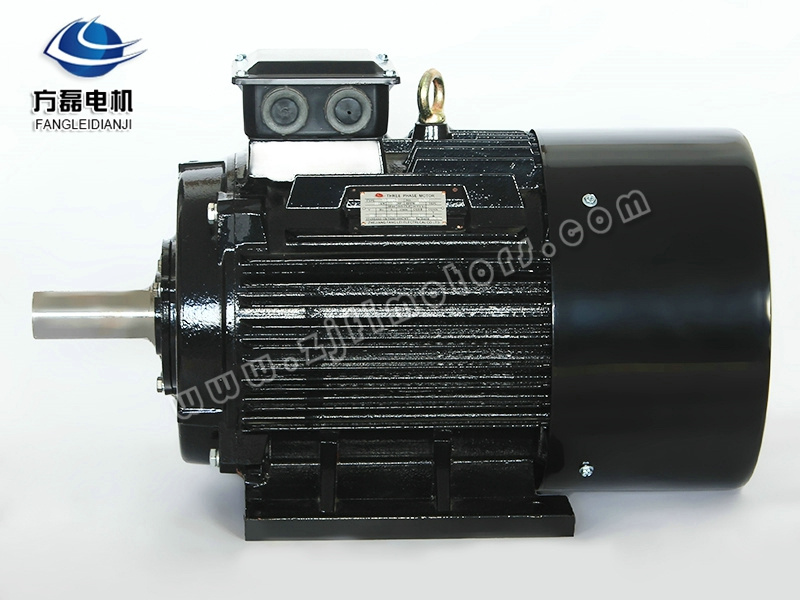

Yx3 Three Phase Cr800 Asynchronous Induction Motor

Name: Yx3 Three Phase Cr800 Asynchronous Induction Motor
Brand: all-electronics-online.com
SKU: 621266404
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	US $ 30.8-35/Box
Min Order:	1/Box
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YX3
Material:	Cast Iron&Aluminum Body
Stator Material:	195&800 Stator
Number Of Stator:	Three-Phase
Function:	Control
Number Of Poles:	2-8

Product Description

Detailed Info

YX3 its high-efficiencythree-phase asynchronous motors appearance,high efficiency,efficiency in line with GB18613-2012 the provisions of three energy efficiency, F class insulation, protection class IP55.Motor low noise,vibration small, reliable operation.For applications that requirecontinuous operationof the generalenergy-saving options,such asfans, pump sand the like.

Technical Parameters

YX3 SeriesTechnical Information
No.	model	power	Rotating speed	Electric current	effectiveness	Power Factor	Stall torque/rated torque	Stall current/rated current	Maximumtorque/ Ratedtorque	noise	Voltage
No.	model	kW	r/min	A	%	Cosφ	LRT/RLT	LRA/RLA	BDT/RLT	LwdB(A)	V
1	YX3-80M1-2	0.75	2860	1.77	77.5	0.83	2.3	6.8	2.3	62	380
2	YX3-80M2-2	1.1	2880	2.43	82.8	0.83	2.3	7.3	2.3	62	380
3	YX3-90S-2	1.5	2890	3.23	84.1	0.84	2.3	7.6	2.3	67	380
4	YX3-90L-2	2.2	2890	4.59	85.6	0.85	2.3	7.8	2.3	67	380
5	YX3-100L-2	3	2890	6.04	86.7	0.87	2.3	8.1	2.3	74	380
6	YX3-112M-2	4	2910	7.88	87.6	0.88	2.3	8.3	2.3	77	380
7	YX3-132S1-2	5.5	2910	10.7	88.6	0.88	2.2	8	2.3	79	380
8	YX3-132S2-2	7.5	2910	14.3	89.5	0.89	2.2	7.8	2.3	79	380
9	YX3-160M1-2	11	2940	20.8	90.5	0.89	2.2	7.9	2.3	81	380
10	YX3-160M2-2	15	2940	28	91.3	0.89	2.2	8	2.3	81	380
11	YX3-160L-2	18.5	2940	34.4	91.8	0.89	2.2	8.1	2.3	81	380
12	YX3-180M-2	22	2950	40.7	92.2	0.89	2.2	8.2	2.3	83	380
13	YX3-200L1-2	30	2960	55.1	92.9	0.89	2.2	7.5	2.3	84	380
14	YX3-200L2-2	37	2960	67.7	93.3	0.89	2.2	7.5	2.3	84	380
15	YX3-225M-2	45	2960	82	93.7	0.89	2.2	7.6	2.3	86	380
16	YX3-250M-2	55	2970	100	94	0.89	2.2	7.6	2.3	89	380
17	YX3-280S-2	75	2970	135	94.6	0.89	2	6.9	2.3	91	380
18	YX3-280M-2	90	2970	162	95	0.89	2	7	2.3	91	380
19	YX3-315S-2	110	2970	195	95	0.9	2	7.1	2.2	92	380
20	YX3-315M-2	132	2970	234	95.4	0.9	2	7.1	2.2	92	380
21	YX3-315L1-2	160	2970	280.1	95.4	0.91	2	7.1	2.2	92	380
22	YX3-315L2-2	200	2970	350	95.4	0.91	2	7.1	2.2	92	380
23	YX3-355M-2	250	2980	436	95.8	0.91	2	7.1	2.2	100	380
24	YX3-355L-2	315	2980	549	95.8	0.91	2	7.1	2.2	100	380
25	YX3-80M1-4	0.55	1430	1.38	80.7	0.75	2.3	6.3	2.3	56	380
26	YX3-80M2-4	0.75	1430	1.85	82.3	0.75	2.3	6.5	2.3	56	380
27	YX3-90S-4	1.1	1430	2.66	83.8	0.75	2.3	6.6	2.3	59	380
28	YX3-90L-4	1.5	1430	3.58	85	0.75	2.3	6.9	2.3	59	380
29	YX3-100L1-4	2.2	1450	4.78	86.4	0.81	2.3	7.5	2.3	64	380
30	YX3-100L2-4	3	1450	6.36	87.4	0.82	2.3	7.6	2.3	64	380
31	YX3-112M-4	4	1450	8.39	88.3	0.82	2.3	7.7	2.3	65	380
32	YX3-132S-4	5.5	1450	11.4	89.2	0.82	2	7.5	2.3	71	380
33	YX3-132M-4	7.5	1450	15.2	90.1	0.83	2	7.4	2.3	71	380
34	YX3-160M-4	11	1470	21.6	91	0.85	2.2	7.5	2.3	73	380
35	YX3-160L-4	15	1470	28.9	91.8	0.86	2.2	7.5	2.3	73	380
36	YX3-180M-4	18.5	1470	35.4	92.2	0.86	2.2	7.7	2.3	76	380
37	YX3-180L-4	22	1470	42	92.6	0.86	2.2	7.8	2.3	76	380
38	YX3-200L-4	30	1470	56.9	93.2	0.86	2.2	7.2	2.3	76	380
39	YX3-225S-4	37	1480	69.8	93.6	0.86	2.2	7.3	2.3	78	380
40	YX3-225M-4	45	1480	84.7	93.9	0.86	2.2	7.4	2.3	78	380
41	YX3-250M-4	55	1480	103	94.2	0.86	2.2	7.4	2.3	79	380
42	YX3-280S-4	75	1480	137	94.7	0.88	2.2	6.7	2.3	80	380
43	YX3-280M-4	90	1480	164	95	0.88	2.2	6.9	2.3	80	380
44	YX3-315S-4	110	1480	199	95.4	0.88	2.2	6.9	2.2	88	380
45	YX3-315M-4	132	1480	239	95.4	0.88	2.2	6.9	2.2	88	380
46	YX3-315L1-4	160	1480	286	95.4	0.89	2.2	6.9	2.2	88	380
47	YX3-315L2-4	200	1480	358	95.4	0.89	2.2	6.9	2.2	88	380
48	YX3-355M-4	250	1490	441	95.8	0.9	2.2	6.9	2.2	95	380
49	YX3-355L-4	315	1490	555	95.8	0.9	2.2	6.9	2.2	95	380
50	YX3-90S-6	0.75	940	2.04	77.7	0.72	2.1	5.8	2.1	57	380
51	YX3-90L-6	1.1	940	2.87	79.9	0.73	2.1	5.9	2.1	57	380
52	YX3-100L-6	1.5	940	3.78	81.5	0.74	2.1	6	2.1	61	380
53	YX3-112M-6	2.2	950	5.42	83.4	0.74	2.1	6	2.1	65	380
54	YX3-132S-6	3	960	7.26	84.9	0.74	2	6.2	2.1	69	380
55	YX3-132M1-6	4	970	9.54	86.1	0.74	2	6.8	2.1	69	380
56	YX3-132M2-6	5.5	970	12.7	87.4	0.75	2	7.1	2.1	69	380
57	YX3-160M-6	7.5	970	16.4	89	0.78	2.1	6.7	2.1	73	380
58	YX3-160L-6	11	970	23.5	90	0.79	2.1	6.9	2.1	73	380
59	YX3-180L-6	15	980	30.9	91	0.81	2	7.2	2.1	73	380
60	YX3-200L1-6	18.5	980	37.9	91.5	0.81	2.1	7.2	2.1	73	380
61	YX3-200L2-6	22	980	44.3	92	0.82	2.1	7.3	2.1	73	380
62	YX3-225M-6	30	980	60.1	92.5	0.82	2	7.1	2.1	74	380
63	YX3-250M-6	37	980	72	93	0.84	2.1	7.1	2.1	76	380
64	YX3-280S-6	45	980	85	93.5	0.86	2.1	7.2	2	78	380
65	YX3-280M-6	55	980	104	93.8	0.86	2.1	7.2	2	78	380
66	YX3-315S-6	75	990	142	94.2	0.85	2	6.7	2	83	380
67	YX3-315M-6	90	990	172	94.5	0.84	2	6.7	2	83	380
68	YX3-315L1-6	110	990	207	95	0.85	2	6.7	2	83	380
69	YX3-315L2-6	132	990	245	95	0.86	2	6.7	2	83	380
70	YX3-355M1-6	160	990	294	95	0.87	2	6.7	2	85	380
71	YX3-355M2-6	200	990	368	95	0.87	2	6.7	2	85	380
72	YX3-355L-6	250	990	460	95	0.87	2	6.7	2	85	380

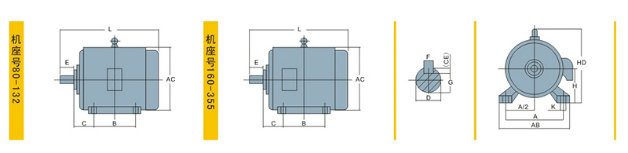

Shape and installation dimensions(IMB35)
Shape and installation dimensions(IMB35)
FRAME SIZE	POLES	A	A/2	B	C	D	E	F	G	H	K	M	N	P	S	T	Flange	AB	AC	AD	HD	L	DH*
FRAME SIZE	POLES	A	A/2	B	C	D	E	F	G	H	K	M	N	P	S	T	Number of holes	AB	AC	AD	HD	L	DH*
80M	2 4 6	125	62.5	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	4	165	158	140	220	300	M6x16
90S	2 4 6	140	70	100	56	24	50	8	20	90	10	165	130	200	12	3.5	4	180	177	160	245	330	M8x19
90L	2 4 6	140	70	125	56	24	50	8	20	90	10	165	130	200	12	3.5	4	180	177	160	245	360	M8x19
100L	2 4 6	160	80	140	63	28	60	8	24	100	12	215	180	250	15	4	4	205	198	172	270	400	M10x22
112M	2 4 6	190	95	140	70	28	60	8	24	112	12	215	180	250	15	4	4	230	220	190	300	435	M10x22
132S	2 4 6	216	108	140	89	38	80	10	33	132	12	265	230	300	15	4	4	270	259	210	345	470	M12x28
132M	2 4 6	216	108	178	89	38	80	10	33	132	12	265	230	300	15	4	4	270	259	210	345	510	M12x28
160M	2 4 6	254	127	210	108	42	110	12	37	160	15	300	250	350	19	5	4	320	315	255	420	615	M16x36
160L	2 4 6	254	127	254	108	42	110	12	37	160	15	300	250	350	19	5	4	320	315	255	420	660	M16x36
180M	2 4 6	279	139.5	241	121	48	110	14	42.5	180	15	300	250	350	19	5	4	355	355	280	455	700	M16x36
180L	2 4 6	279	139.5	279	121	48	110	14	42.5	180	15	300	250	350	19	5	4	355	355	280	455	740	M16x36
200L	2 4 6	318	159	305	133	55	110	16	49	200	19	350	300	400	19	5	4	395	397	305	505	770	M20x42
225S	4	356	178	286	149	60	140	18	53	225	19	400	350	450	19	5	8	435	445	335	560	815	M20x42
225M	2	356	178	311	149	55	110	16	49	225	19	400	350	450	19	5	8	435	445	335	560	820	M20x42
225M	4 6	356	178	311	149	60	140	18	53	225	19	400	350	450	19	5	8	435	445	335	560	845	M20x42
250M	2	406	203	349	168	60	140	18	53	250	24	500	450	550	19	5	8	490	485	370	615	920	M20x42
250M	4 6	406	203	349	168	65	140	18	58	250	24	500	450	550	19	5	8	490	485	370	615	920	M20x42
280S	2	457	228.5	368	190	65	140	18	58	280	24	500	450	550	19	5	8	550	547	410	680	995	M20x42
280S	4 6	457	228.5	368	190	75	140	20	67.5	280	24	500	450	550	19	5	8	550	547	410	680	995	M20x42
280M	2	457	228.5	419	190	65	140	18	58	280	24	500	450	550	19	5	8	550	547	410	680	1045	M20x42
280M	4 6	457	228.5	419	190	75	140	20	67.5	280	24	500	450	550	19	5	8	550	547	410	680	1045	M20x42
315S	2	508	254	406	216	65	140	18	68	315	28	600	550	660	24	6	8	635	620	530	845	1185	M20x42
315S	4 6	508	254	406	216	80	170	22	71	315	28	600	550	660	24	6	8	635	620	530	845	1220	M20x42
315M	2	508	254	457	216	65	140	18	58	315	28	600	550	660	24	6	8	635	620	330	845	1290	M20x42
315M	4 6	508	254	457	216	80	170	22	71	315	28	600	550	660	24	6	8	635	620	530	845	1325	M20x42
315L	2	508	254	508	216	65	140	18	58	315	28	600	550	660	24	6	8	635	620	530	845	1290	M20x42
315L	4 6	508	254	508	216	80	170	22	71	315	28	600	550	660	24	6	8	635	620	530	845	1325	M20x42
355M	2	610	305	560	254	75	140	20	67.5	355	28	740	680	800	24	6	8	730	698	655	1010	1500	M20x42
355M	4 6	610	305	560	254	95	170	25	86	355	28	740	680	800	24	6	8	730	698	655	1010	1530	M20x42
355L	2	610	305	630	254	75	140	20	67.5	355	28	740	680	800	24	6	8	730	698	655	1010	1500	M20x42
355L	4 6	610	305	630	254	95	170	25	86	355	28	740	680	800	24	6	8	730	698	655	1010	1530	M20x42

Bearing specifications

Non-shaft end

YX3 Bearing specifications
YX3 Bearing specifications
Dimensions	series	Shaft extension
80	2-4	6204-2RZ	6204-2RZ
90	2-6	6205-2RZ	6205-2RZ
100	2-6	6206-2RZ	6206-2RZ
112	2-6	6306-2RZ	6306-2RZ
132	2-6	6308-2RZ	6308-2RZ
160	2-6	6309-2RZC3	6309-2RZC3
180	2-6	6311C3	6311C3
200	2-6	6312C3	6312C3
225	2-6	6313C3	6313C3
250	2-6	6314C3	6314C3
280	2	6314C3	6314C3
280	4-6	6317C3	6317C3
315	2	6317C3	6317C3
315	4-6	NU319C3	6319C3
355	2	6319C3	6319C3
355	4-6	NU322C3	NU322C3

The main dimensions ofthe junction box

The mainterminal boxdata
The mainterminal boxdata
Junction boxBinning	Baserange	Maximumfull load current	Linepore size
1	H80	2.6	2×M20×15
2	H90-100	6.8	2×M25×1.5
3	H112-132	15.4	2×M35×1.5
4	H160-180	42.5	2×M40×1.5
5	H200-225	84.2	2×M50×1.5
6	H250-280	166.6	2×M63×1.5
7	H315	358	2×M63×1.5
8	H355	546	2×M63×1.5

FAQ:

Q: What is the payment terms?

A: 30% T/T in advance, 70% before shipment, L/C at sight, Western Union or Paypel

Q: What is your delivery time?

A: Within 25-30 days after receiving deposit.

Q: Do you offer OEM service?

A: Yes. We accept OEM service.

Q: What is your MOQ of this item ?

A: 5 PCS per item.

Q: Can we type our brand on it?

A: Yes of course.

Q: Where is your loading port ?

A:Ningbo Port, zhejiang, China.

Q: What is your production capacity?

A: About 300 PCS per day.

Zhejiang Fanglei Machine & Electric Co., Ltd. is located in Zhejiang, East China Sea in Taizhou. Ointly established the production of small and medium-sized production base for kinds of electric motors. The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor

History: 25 years experience of manufacturing stator, motor, water pumps;

Scale: Covers working area of 6, 000 square meters. Have more than 200 employees;

Technology: A group of professional technical engineers and a strong R&D team;

Management: Scientific management and strict quality control system;

Equipments: Advanced automatic production line and test equipment;

Innovation: Continuously diversify products range to satisfy customers'needs, Production capacity: 30, 000 PCS/month;

Marketing network: Europe, Asia, Africa, America, etc;

Certificate: CE, GS, RoHS, IS09001: 2008,

The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system
