Shandong New Luxing Cable Co., Ltd. >> Yy Control Flexible Cable

Yy Control Flexible Cable

Yy Control Flexible Cable
Price: US $ 0.1-5/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: YY Control Flexible Cable
Product Name: Yy Control Flexible Cable
Rated Voltage: 450/750V 0.6/1 Kv
Conductor: Copper
Insulation: PVC
Sheath: PVC
Core Color: Red Yellow Blue Green Black or as Your Requirement
Shield: Copper Wire / Copper Tape / Steel Tape
Packaging: Packed in Roll or Wooden Drum
Shipping: 3-10 Working Days
MOQ: 100 Meter
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: PVC
Certification: VDE
Application: Instrument
Model: Various Control Cable
Brand: Chang Qing Teng

Product Description

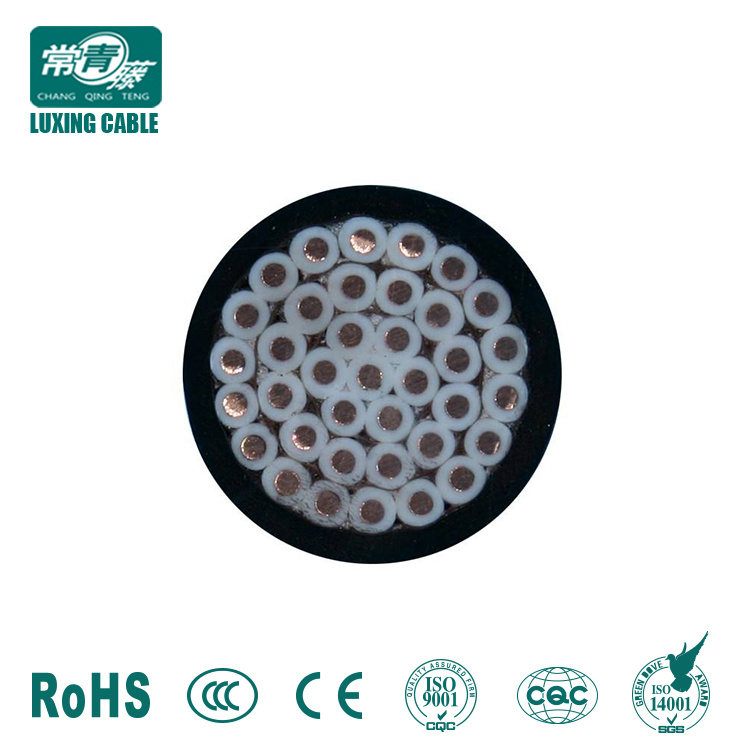

ITERM NAME : YY Control Flexible Cable



Specification

pvc insulated electric wire single core
1, Standard: 227IEC06,227IEC02
2, Certificate: CE ROHS KEMA
3.Complete quality test



Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage:300/500 V, 300/300V, 450/750V

Max. Conductor Temp. in normal use: 70°C or 90°C



Certificates

CE, RoHS, CCC, KEMA and more others at request.

Code Designation

Voltage

Products Name

60227 IEC 01

450/750 V

Single-core non-sheathed cable with rigid conductor for general purposes

60227 IEC 02

450/750 V

Single-core non-sheathed cable with flexible conductor for general purposes

60227 IEC 05

300/500 V

Single-core non-sheathed cable with solid conductor

for internal wiring for a conductor temperature of 70 °C

60227 IEC 06

300/500 V

Single-core non-sheathed cable with flexible conductor

for internal wiring for a conductor temperature of 90 °C

60227 IEC 07

300/500 V

Single-core non-sheathed cable with solid conductor

for internal wiring for a conductor temperature of 90 °C

60227 IEC 08

300/500 V

Single-core non-sheathed cable with flexible conductor

for internal wiring for a conductor temperature of 90 °C

60227 IEC 10

300/500 V

Light PVC Sheathed Cable

60227 IEC 52

300/300 V

Light PVC Sheathed Cord

60227 IEC 53

300/500 V

Ordinary PVC Sheathed Cord


VARIOUS TYPES FOR YOU TO CHOOSE

  Type

Description

Rated Voltage

 Conductor Size

KVV

(ZR/NH-KVV)

PVC insulated PVC sheathed
(flame retardant or fire resistance) control cable

450/750V

2~61 cores

0.75~10mm2

KVVP

(ZR/NH-KVVP)

PVC insulated PVC sheathed copper wire braid shielded
(flame retardant or fire resistance) control cable

KVVP2

(ZR/NH-KVVP2)

PVC insulated PVC sheathed copper tape shielded
(flame retardant or fire resistance) control cable

KVV22

(ZR/NH-KVV22)

PVC insulated PVC sheathed steel tape armored
(flame retardant or fire resistance) control cable

KVV32

(ZR-KVV32)

PVC insulated PVC sheathed steel wire armored
(flame retardant) control cable

KVVR

(ZR-KVVR)

PVC insulated PVC sheathed
(flame retardant) flexible control cable

KVVRP

(ZR-KVVRP)

PVC insulated PVC sheathed copper wire braid shielded
(flame retardant) flexible control cable

KYJV

(ZR/NH-KYJV)

XLPE insulated PVC sheathed
(flame retardant or fire resistance) control cable

0.6/1kV

2~61 cores

0.75~10mm2

KYJVP

(ZR/NH-KYJVP)

XLPE insulated PVC sheathed copper wire braid shielded
(flame retardant or fire resistance) screen control cable

KYJVP2

(ZR/NH-KYJVP2)

XLPE insulated PVC sheathed copper tape shielded
(flame retardant or fire resistance) control cable

KYJV22

(ZR/NH-KYJV22)

XLPE insulated PVC sheathed steel tape armored
(flame retardant or fire resistance) control cable

ZR-KYJS-C

XLPE insulated LSHF sheathed flame retardant control cable

0.6/1kV

2~61 cores

0.75~10mm2

ZR-KYJSP-C

XLPE insulated LSHF sheathed copper wire braid shielded flame retardant control cable

ZR-KYJS P2-C

XLPE insulated LSHF sheathed copper tape shielded flame retardant control cable

ZR-KYJSP3-C

XLPE insulated LSHF sheathed aluminum tape shielded flame retardant control cable

ZR-KYJS22-C

XLPE insulated LSHF sheathed steel tape armored flame retardant control cable

ZR-KYJSR-C

XLPE insulated LSHF sheathed flame retardant flexible control cable

ZR-KYJSRP-C

XLPE insulated LSHF sheathed copper wire braid shielded flame retardant flexible control cable


Packaging & Shipping

ITERM NAME : YY Control Flexible Cable

Packing

Standard Export package:

100m/roll,500m/roll,1000m/roll on the pallet or wooden drum

Delivery

Within :5-10 working Days once Order Confirmed

Port: Tianjin, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.

Packaging Details: 1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
 2. According to customer requirement.
Shipping Details: 5-10 working days after payment.

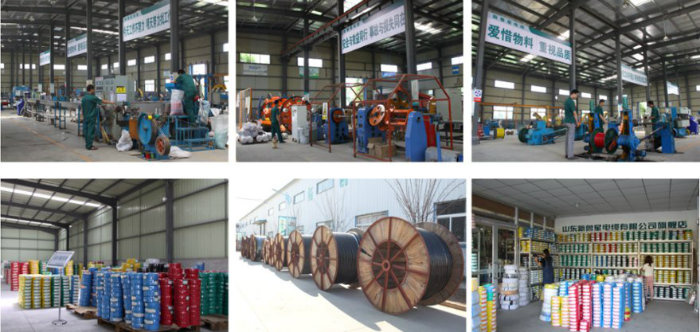

Company Information

Our company-Shandong New Luxing Cable Co.,Ltd establish in the year of 1999 , so until now we have been in this line for more than 18 years .at present ,we have 150 empoyees in total , and annual sales volume is about 8 billion .our headquarter in Jinan City , the capital in shandong province . and our factory located in Dezhou City , Covering an area of more than 60 acres .

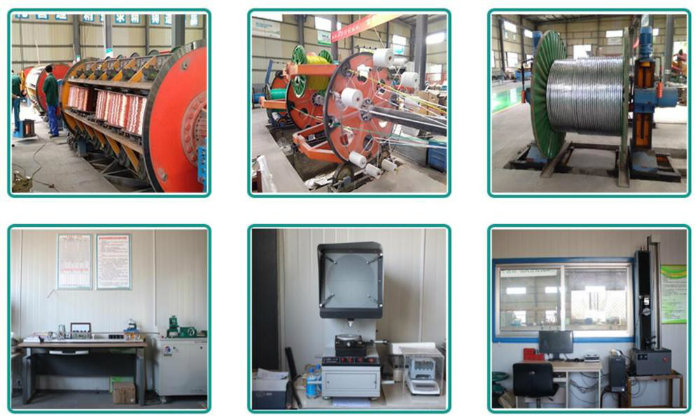

Strict Quality Test ( Raw Material & Finished Cable )

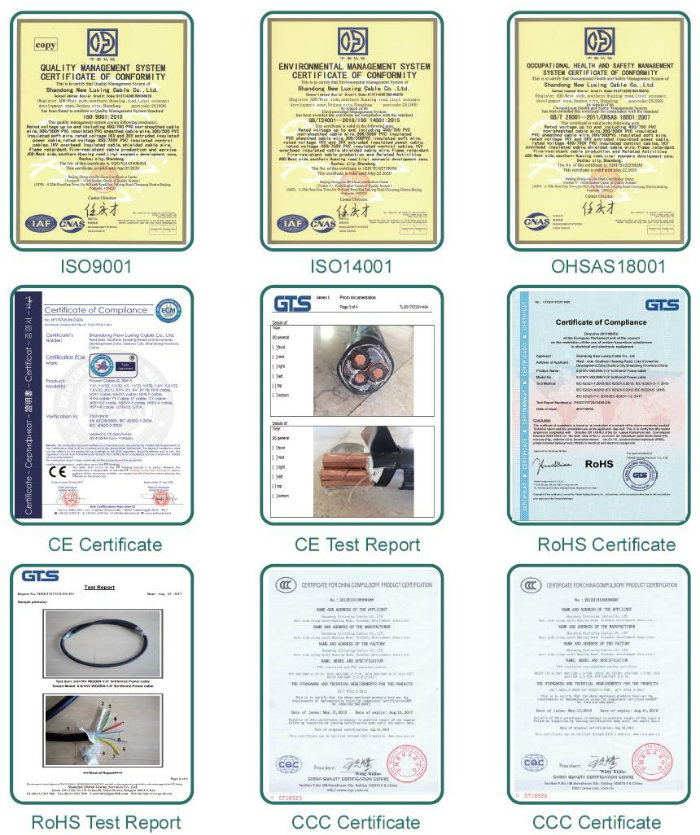

Certificates ( ISO CE CCC ROHS GB/T )

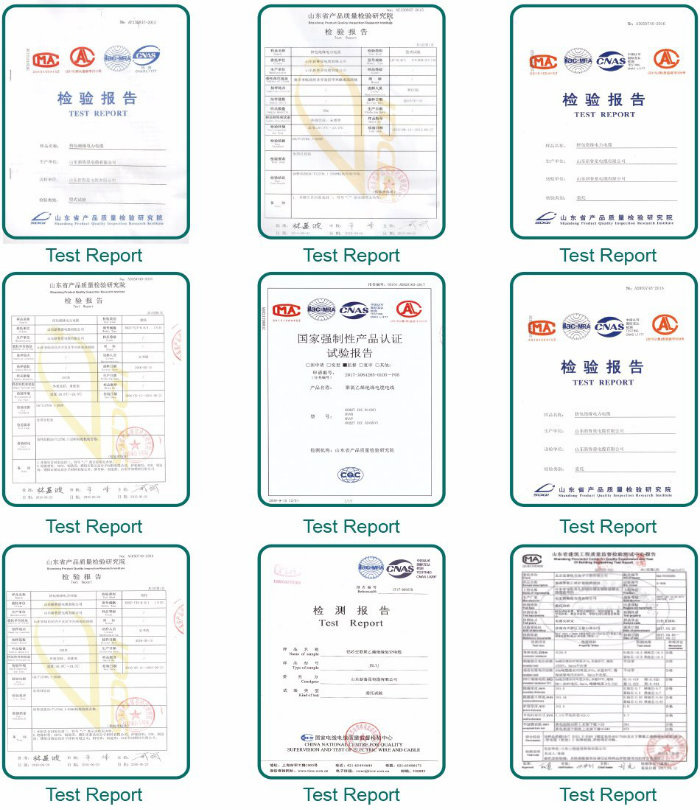

Type Test Report


We Mainly Produce the Following Products

300/500V 450/750V electrical wire AAC conductor
600/1000V PVC insulated cableAAAC conductor
600/1000V XLPE insulated cableACSR conductor
1.8/3KV to 26/35KV power cable OPGW
Armored underground cableABC cable
Control cable and instrumentation cables Rubber cable

More Hot Sale Products for you to choose


Contact Information




1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
