Yy (DO2/JX) Series Single Phase Induction Motor

Name: Yy (DO2/JX) Series Single Phase Induction Motor
Brand: all-electronics-online.com
SKU: 707889352
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	US $ 40-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	H56~71
Rated Power:	0.04~1.1kw
Rated Voltage:	220V
Frequency:	50Hz ;60Hz
Protection Class:	IP44;IP54;IP55
Insulation Class:	B;E;F
Ambient Temperature:	-20~+40 °c
Altitude:	≤1000m
Number Of Stator:	Three-Phase
Function:	Control
Brand:	Hongma

Product Description

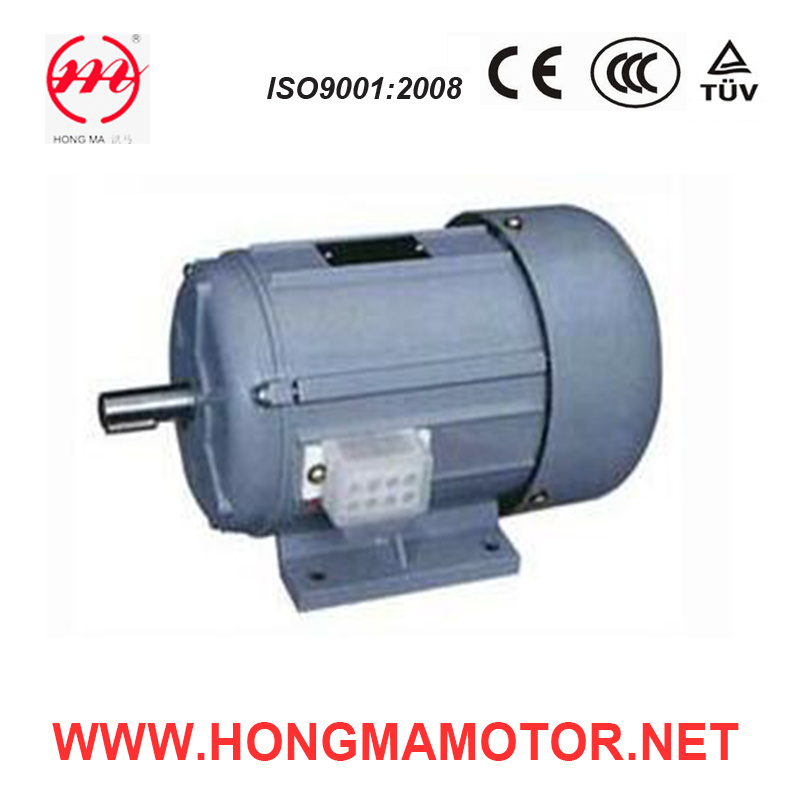

Product Description of YY( DO2/JX) Series Single Phase Induction Motor

YY(DO2/JX)Series Single-Phase Asynchronous Motor is designed to nation standard and are of good performance, low noise, small size, light weight, easy maintenance. Features designed to Protection Class IP44, IP54 and higher up to IP55; Cooling Method IC411; Rated Voltages 380V, 400V and 415V; Frequency 50HZ or 60HZ. It is widely used in mechanism equipment with single phase voltage. YU(BO2/JZ),YC(CO2/JY),YY(DO2/JX)Series Single Phase Micropower Asynchronous

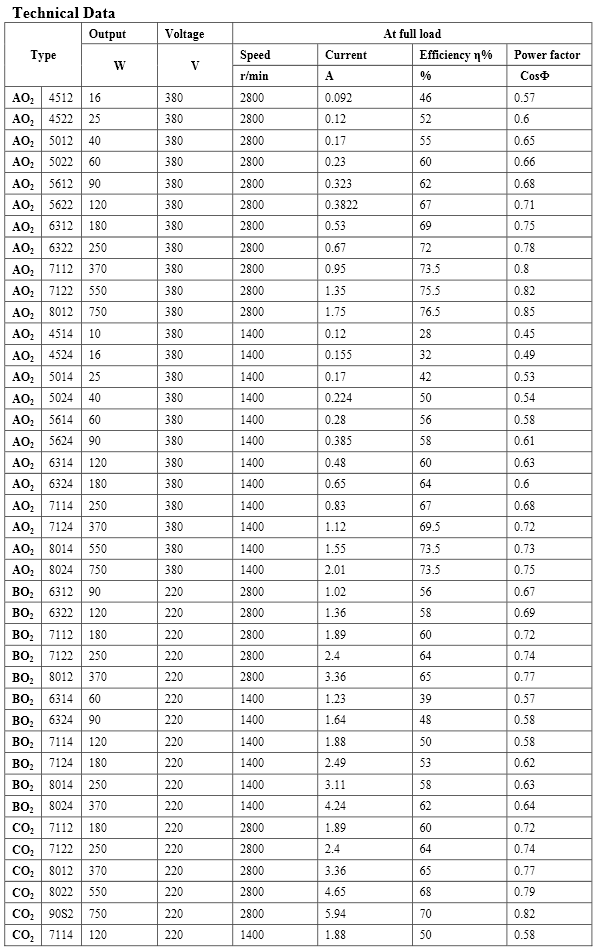

Frame Size: H45~80mm

Power: 6~1100W
Synchronous Speed: 50HZ: 3000; 1500; 1000RPM
60HZ: 3600; 1800, 1200RPM
Voltage: 220/240V, 220V, 380V
Frequency: 50HZ, 60HZ
Protection Class: IP44, IP54, IP55, IP56
Insulation Class B; F; H
Ambi. Temperature: -20~+40 °C
Altitude Above Sea Level: ≤1000M

http://www.hongmamotor.net/product/html/?93.html

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
