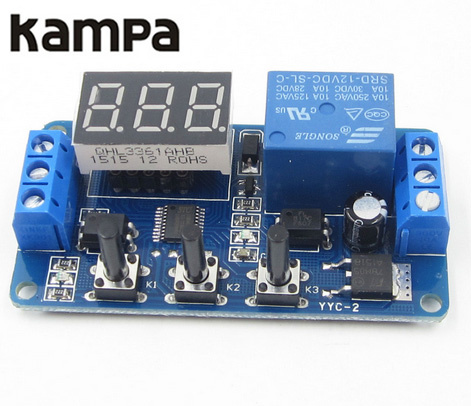

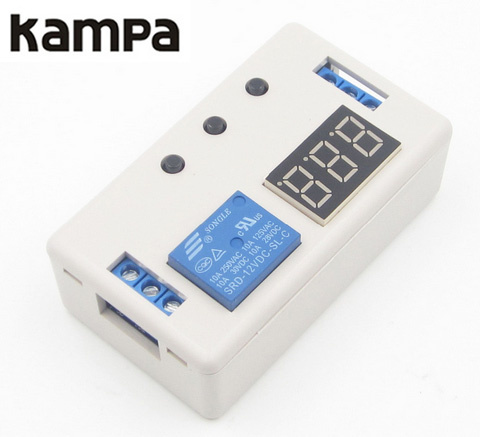

Yyc-2 1 Channel Trigger Electrical Cycle Timer Switch Delay on off Timer

YYC-2 1 Channel Trigger Electrical Cycle Timer Switch Delay On Off timer
1.New Upgrated to simplify,to meet customer needs.
2.Increase the supply anti-reversefunction.
3.The ise of opto isolated input and output,enhanced anti-jamming capabilit consumption.
4.Set parameter after power fot ever mrmories.
5.Signal terminal voltage signal can be maintained for a tongtime.
6.To ensure stablity,industrial grade board,class PLC.

Product parameters.
1.Size:64.2mm*34.8mm*18.5mm.
2.Relay specifcations:AC 220V 10A or DC 30V 10A
3.Quiescent current:20mA,operating current:50mA
4.Signal voltage:4V-30V (if other ranges can be customized)
6.Life:about 100.000times,working temparatyre:-40ºC.
Working mode selection:After power on,long press K12 second late into the select function.P1-1 operating modes:a signal to trigger relay,time is up,the relay disconnect users,you can set relay time T,click K2 the hundreddihgital tube starts flashing,then press K3,the hundres digital change,click K2 ten digital tube starts flashing.then press K3.Then digital changes,click K2 bit digital tube starts flashing,then press K3,single-digit change,then click K2,digital pipe does not blink,then press the k3,shifring the decimalpoint,the decimalpolntin abitindicates 0-999 minutes in ten.
