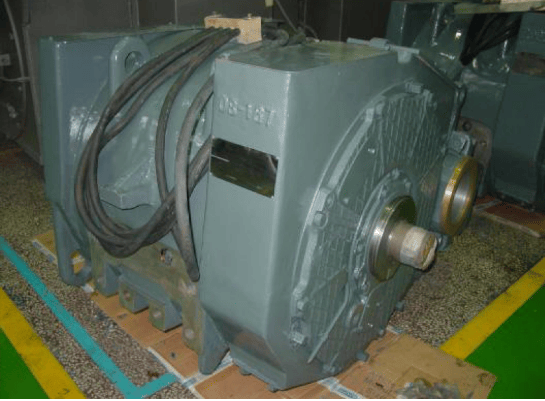

YZ95A Tranction Motor/Russia HB-511m DC Motor

Name: YZ95A Tranction Motor/Russia HB-511m DC Motor
Brand: all-electronics-online.com
SKU: 731833572
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	Negotiableset
Min Order:	1set
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YZ95A/HB-511M
Application:	Mud Pump, Drawworks,Rotary Table, Drilling Rig etc
Structure And Working Principle:	Brush
Operating Speed:	1500rpm
Excitation Mode:	Series,Shunt&Independent
Type:	DC Motor
Certification:	Ce,API
Brand:	Ge/Yongji

Product Description

YZ95A traction motor is designed for Russian electric locomotive and was exported to Russia,Ukraine and other former Soviet Union countriers. The dimension for installment is same as those for former Soviet Union's motor HB-511M.This kind of motor had been equipped in above countries for 636 units from 2007 to 2015. Its high performance had got high pride from customers. Its main features are as follows:
1.       The motor is four-pole, high-voltage pulsating current traction motor. It has brushholder ring.
2.       The motor has compensating winding, fixed shunt circuit, auxiliary pole lamination, and magnetic bridge shim. It can improve pulsating current commutation.
3.       The frame is made from cast-steel. And VPI are applied in producing the armature and stator frame to improve the reliability of the traction motor.

YZ95A	DC mode		Pulse current mode
	work duty		work duty
	hourly	15 minutes	hourly	15 minutes
Rated capacity (kW)	520	650	515	645
Rated voltage (V)	1475	1395	1465	1385
Rated Current (A)	380	510	380	510
Rated speed (vol. / Min.)	680	580	680	580
Excitation method	series excitation
Ventilation	forced Ventilation
Insulation class	Н/Н
Working duty	Continuous
The amount of ventilating air (m3 / min)	65
Maximum voltage (V)	2000+5%
Maximum speed (vol. / Min.)	1530
The nominal level of excitation (attenuation coefficient)	1	1	0.98	0.98
Weight, kg	4600
