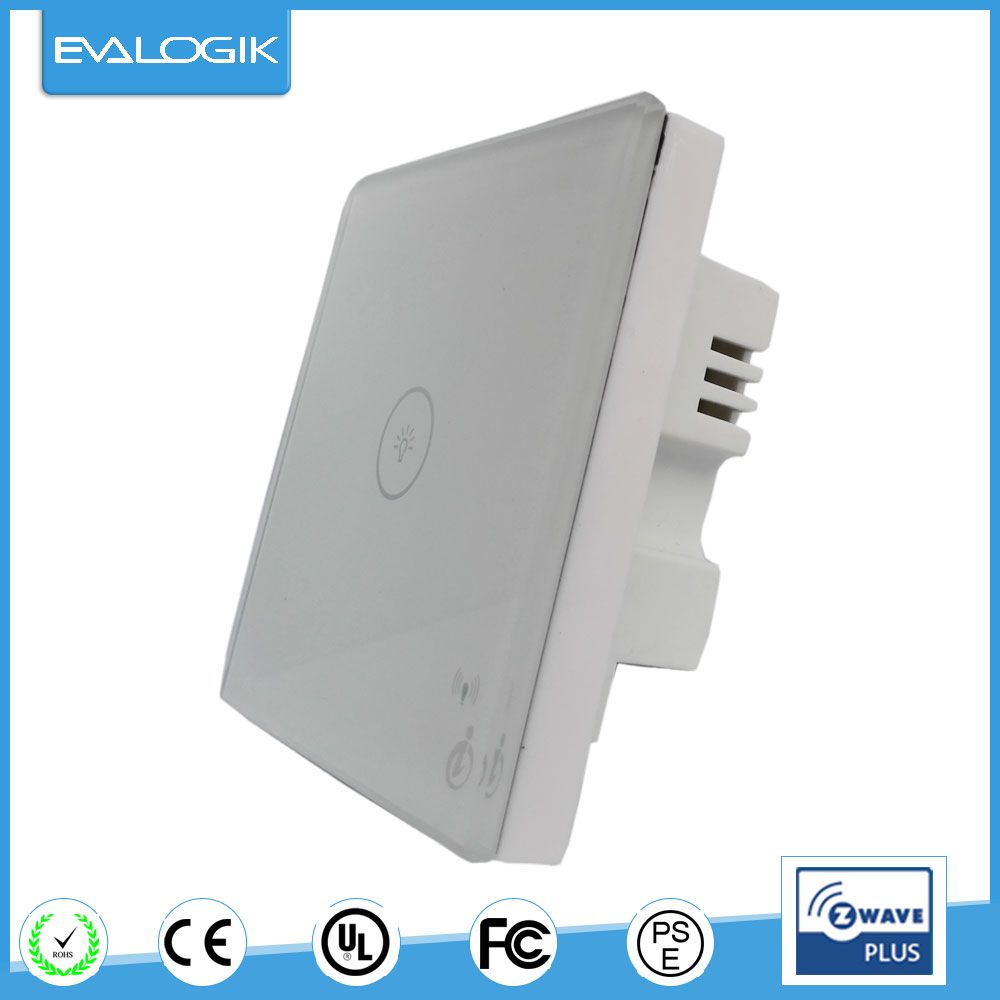

Z-Wave Remote Controlled Electrical Dimmer Switch (ZW244)

Name: Z-Wave Remote Controlled Electrical Dimmer Switch (ZW244)
Brand: all-electronics-online.com
SKU: 819811205
Availability: InStock
Rating: 4.9 (77 reviews)

Price:	US $ 19-48/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW244
Voltage:	230VAC /60Hz
Maximum Load:	800W
Range:	Min 30m Line of Sight
Net Weight:	110g
Marketing:	Europe, Asia(Russia),Cn
Frequency:	868.42MHz/869.0MHz
Type:	Normal Open
Usage:	Control Button
Kind:	Single-pole on-off Switch
Brand:	EVA Logik

Product Description

Z-wave Remote Controlled Electrical Dimmer Switch (ZW244)

Introduction

This module is designed to operate in a wall switch box or in locations where the control of an electric device is needed. It is also possible to send a signal to any system that is to be integrated with Z-wave system.

Technical data

Operating Voltage	230Vac/60Hz 120VAC/50HZ
Operation Temperature	0 ~ 60ºC
Maximum Load	4A (800W)*3
Electricity consumption	<30mw
Range	30m line of sight
Dimensions(LWH)	86* 86 *36mm
Frequency	868.42MHz

Installation

1. Before installation ensure that the voltage supply is disconnected.
2. Correctly connect ZW24 as shown on above diagram.
3. For "Add" in a network: Put the Z-wave interface controller into "Add" mode, and following its instruction to add the ZW24 to your controller. To get in the "Add" mode, the distance between ZW24 module and controller is suggested to be in one meter. Pressing the first touch switch of ZW24 till the indicate light flash, when fast flash 3 times it successful add into gateway network.

4. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZW24 from your controller. Pressing the first touch switch of ZW24 till the indicate light flash, when fast flash 2 times it successful remove from gateway network.

5. For "Condition" which is controlling other devices of Z-wave system, Condition ensures direct transfer of control commands between devices, and is performed without participation of the main controller. e.g. Dimmer, Switch (ON-OFF), Door/Window sensor, PIR, Shutter or scene (scene may be controlled only through the ZE300 gateway).

Shipping &Packing

NIE-TECH Co., Ltd founded in 2009, is a Hi-tech manufacturer that specializes in smart-home products' design, development and manufacture.

We own the experienced and innovative R&D team, and has a full range of successful Z-Wave solution for both home and industrial applications. Our wide range of wireless technologies, which earned us great confidence from our customers for their reliability and range performance, help our customers turn their innovative ideas into successful products.

Our ZE300 Evalogik Gateway is the nerve centre of smart home. It allows you to gain access to and control different appliances and devices installed in your home by using your smartphone. ZE300 Evalogik gateway that can be remotely controlled range from lightings, sensors, curtain motors, security cameras and energy control units. All you need to do is configure the Gateway with your home's Wi-Fi network and install the EVALOGIK APP on your smartphone. You can then add and connect to all appliances compatible with the EVALOGIK gateway.

With the aim of "quality first, customer first", our QC team ensures the products are qualified before shipping. Low-cost, short leading time, high quality, and our rigorous working attitude, all of these are helping us to get more orders.

Anyhow, looking forward to cooperating with you as biz partner in any terms.
