Z-Wave Wireless Water-Proof Wall Switch Remote Control Switch (ZW30)

Name: Z-Wave Wireless Water-Proof Wall Switch Remote Control Switch (ZW30)
Brand: all-electronics-online.com
SKU: 818828445
Availability: InStock
Rating: 4.7 (93 reviews)

Price:	US $ 14-49/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW30
Range:	Mini 30m Line of Sight
Z-Wave Frequency:	908.42MHz
Relay:	15A
Operating Voltage:	120VAC/60Hz
Type:	Normal Open
Brand:	EVA Logik
Certification:	RoHS, FCC

Product Description

Introduction

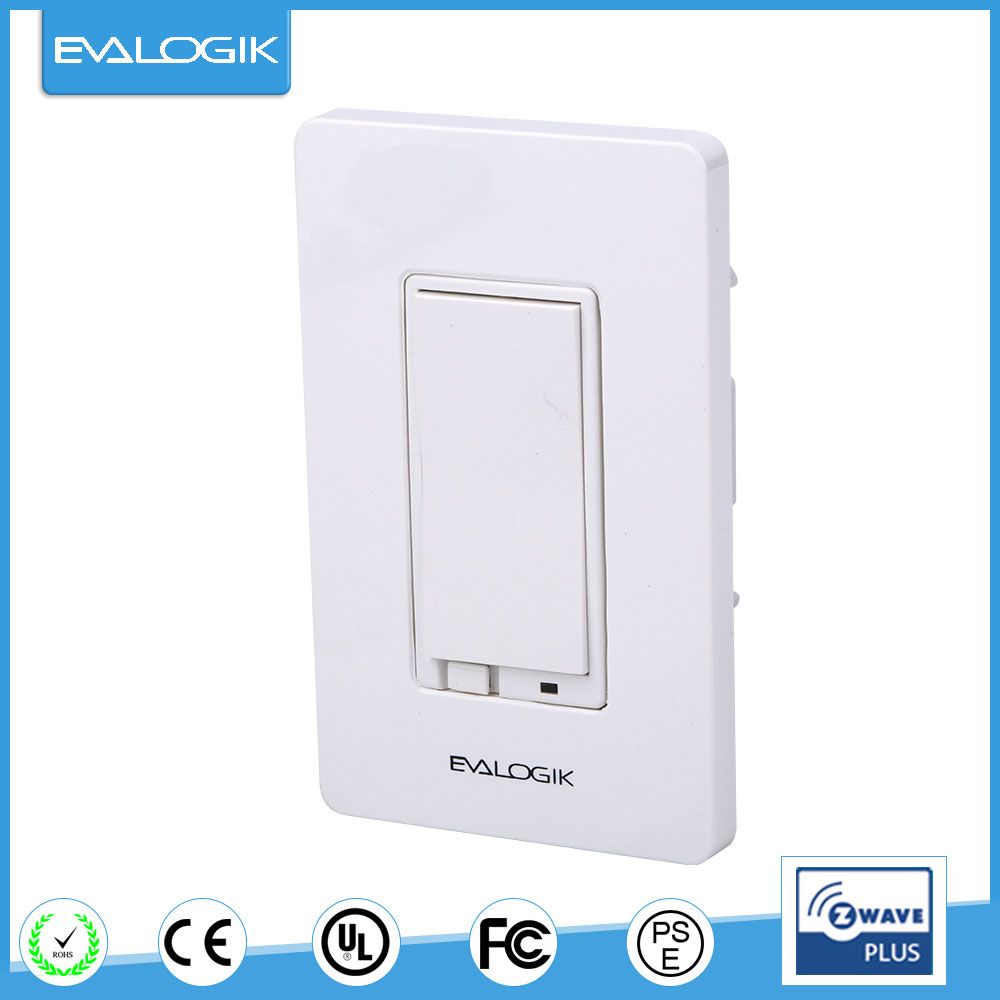

Z-Wave Wireless Water-proof Wall Switch Remote Control Switch(ZW30)
The ZW30 Wall Mounted Switch is a component of the lighting control system. Wire the Wall Mounted Switch in place of a standard wall switch. Inclusion of this Switch allows remote ON/OFF control of loads connected. This Wall Mounted Switch is designed to work with other Z-Wave enabled devices. Z-Wave nodes of other types can be added to the system and will also act as repeaters.

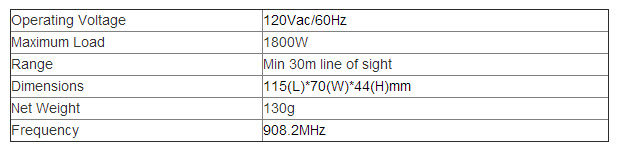

Technical data

Installation

1. Before installation ensure that the voltage supply is disconnected.

2. Connect ZW30 module as shown on above diagram.

3. Connect the device in accordance with the wiring diagram presented in Wiring diagram. Switch on 120V of the mains voltage.

4. For "Add" in a network: Put the Z-wave interface controller into "Add" mode, and following its instruction to add the ZW30 to your controller. To get in the "Add" mode, the distance between ZW30 module and controller is suggested to be in one meter. Quickly pressing the learn switch of ZW30 for 1 second at least & release to be included.

5. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZW30 from your controller. Press the learn switch of ZW30 for 1 second at least &release to be excluded.

Shipping & Packing

NIE-TECH Co., Ltd founded in 2009, is a Hi-tech manufacturer that specializes in smart-home products' design, development and manufacture.

We own the experienced and innovative R&D team, and has a full range of successful Z-Wave solution for both home and industrial applications. Our wide range of wireless technologies, which earned us great confidence from our customers for their reliability and range performance, help our customers turn their innovative ideas into successful products.

Our ZE300 Evalogik Gateway is the nerve centre of smart home. It allows you to gain access to and control different appliances and devices installed in your home by using your smartphone. ZE300 Evalogik gateway that can be remotely controlled range from lightings, sensors, curtain motors, security cameras and energy control units. All you need to do is configure the Gateway with your home's Wi-Fi network and install the EVALOGIK APP on your smartphone. You can then add and connect to all appliances compatible with the EVALOGIK gateway.

With the aim of "quality first, customer first", our QC team ensures the products are qualified before shipping. Low-cost, short leading time, high quality, and our rigorous working attitude, all of these are helping us to get more orders.

Anyhow, looking forward to cooperating with you as biz partner in any terms.
