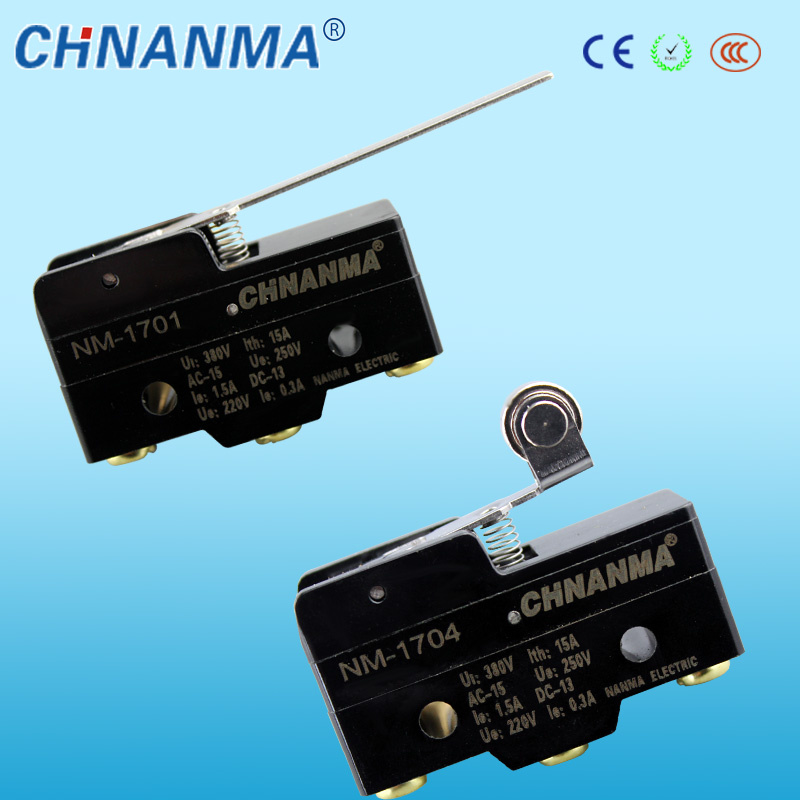

Z15-Gw-B Mechanical Hinge Lever Micro Switch

Prod Model:	z15-Gw-B
Protection:	Dust-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Pressing Type:	Hinge Lever
Application:	Electronic Equipment
Brand:	Chnanma

Product Description

5 Various levers and terminals are available for choice.
  Various operating force are available.
  Snap action, compact design, suit for small space.
  Long operating life, high reliability, which could save the cost.
  Various  rating and temperature resistance degree are available.
  CCC,CE,UL,VDE approvals.
Part NO.:NM-1308

Max Current AND Voltage:   5A AC250V /15A AC250V/25A AC250V

Contact : 1NO+1NC

Tip material: Silver tip

Contact material: Brass

Level material:  stainless steel top roller plunger

Ambient operating temperature: 25°C to 80°C (with no icing)

Ambient operating humidity: 35% to 85%RH

2.Product display&drawing sho

Rated voltage	Non-inductive load				Inductive load
	Resistive load		lamp load		Inductive load		Moto load
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	15	15	15	15	5	2.5	Max 30	Max 15
250 VAC	15	15	15	15	3	1.5
500 VAC	3	3	2.5	2.5	1.5	0.75
8 VDC	15	15	15	15	5	5
14 VDC	15	15	1	1	5	5
30 VDC	6(2)	6	5	5	5	5
125 VDC	0.4	0.4	0.05	0.05	0.05	0.05
250 VDC	0.2	0.2	0.03	0.03	0.03	0.03

Notes:
1. Inductive load has a power factor of 0.4min. (AC) and a time constant or
7msec (DC).
2. Lamp load has an inrush current of 10 times the steady-state current,
while motor load has an inrush current or 6 times the steady-state current.
3.Characteristics

Operating speed	0.01mm to 1m/sec
Operating	Mechanically: 240 operations/min.
frequency	Electrically: 20 operations/min.
Contact resistance	15mΩmax. (initial)
Insulation	100MΩmin. (at 500VDC)
resistance
Dielectric strength	1000VAC, 50/60Hz for 1 minute between
	non-continuous terminals
	2000VAC, 50/60Hz for 1 minute between
	current-carrying part and ground
Vibration	Mechanical durability: 10 to 55Hz
	1.5mm double amplitude
Shock	Mechanical durability:
	Approx. 1,000m/sec2 (approx. 100G's)
	Malfunction durability:
	Approx. 300m/sec2 (approx. 30G's)
Ambient operating	General purpose type: -25°to +80°C
temperature	Sealed type: -15 to 80°C
Humidity	General purpose type: 85%RH max.
	Sealed type: 95%RH
Service life	Mechanically: 20,000,000 operations min
	Electrically: 500,000 operations min.
Weight	Approx. 22 to 58g

4.Definitions of operating characteristics

OF: Operating Force	RF:Releasing Force
TF: Total Force	FP:Free Position
OP: Operating Position	RP:Releasing Position
TTP: Total Travel Position	PT:Pretravel
OT: Overtravel	MD:Movement Differential
TT:Total Travel

Model	z15-Gw-B
OF Max	80g
RF Min	14g(0.25N)
PT Max	8mm
OT Min	3.6mm
MD Max	1.2mm
EP Max
OP mm	19±0.8mm

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.


More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
