Z900e Mini Series VFD Variable Frequency Inverter AC Drive for Wide Application
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Z900E |
| Frequency Range: |
0.1-400Hz |
| Speed Range: |
1:100(Sfvc) |
| Product Name: |
Variable Frequency Drive |
| Input Voltage: |
170-240V or 330-440V |
| Output Voltage: |
170-240V or 330-440V |
| Pid Control: |
Built-in Pid Control |
| Control Method: |
V/F, Sensorless Flux Vector Control |
| Power Range: |
220V 0.4-3.7kw;380V 0.75-315kw |
| Certificate: |
Ce;ISO9001 |
| Protection: |
IP20 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

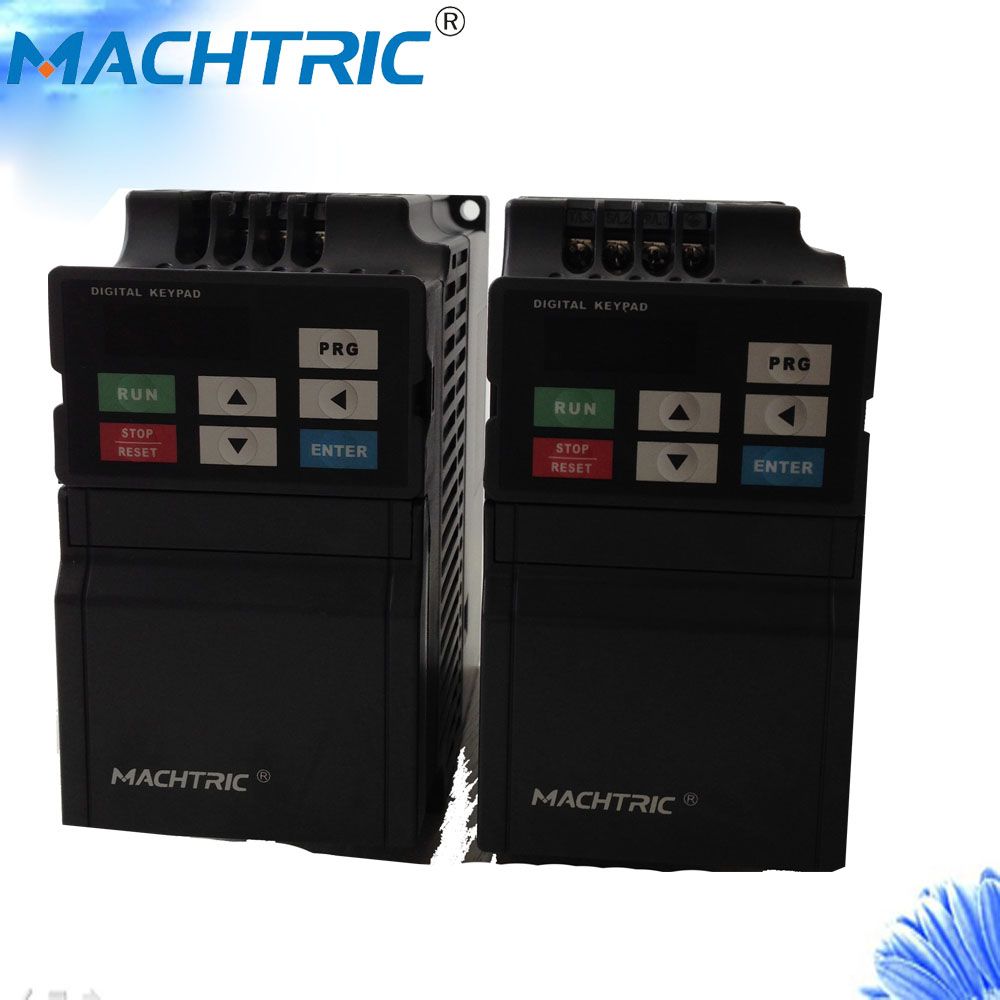

Z900E mini series VFD variable frequency inverter AC drive for wide application
Product description| Item | Z900E |
tandard Function | Control mode | Sensorless flux vector control(SFVC)
Voltage/Frequency(V/F) control |
| Maximum frequency | Vector control:0-320Hz
V/F control:0-3200Hz |
| Carrier frequency | 1-16kHz
The carrier frequency is automatically adjusted based on the load features. |
| Input frequency resolution | Digital setting:0.01Hz
Analog setting:maximum frequency x 0.025% |
| Startup torque | G type:0.5 Hz/150%(SFVC)
P type:0.5 Hz/100% |
| Speed range | 1:100(SFVC) |
| Speed stability accuracy | ±0.5%(SFVC) |
| Torque control accuracy | ± 5% (CLVC) |
| Overload capacity | G type:60s for 150% of the rated current,3s for 180% of the rated current.
P type:60s for 120% of the rated current,3s for 150% of the rated current. |
| Torque boost | Fixed boost
Customized boost 0.1%-30.0% |
| V/F Curve | Straight-line V/F curve
Multi-point V/F curve
N-power
V/F curve(1.2-power,1.4-power,1.6-power,1.8-power,square |
| V/F separation | Two types:complete separation;half separation |
| Ramp mode | Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0-6500.0s |
| DC braking | DC braking frequency:0.00 Hz to maximum frequency
Braking time:0.0-100.0s
Braking action current value:0.0%-100% |
| JOG control | JOG frequency range:0.00-50.00Hz
JOG acceleration/deceleration time:0.0-6500.s |
| Onboard multiple | It implements up to 16 speeds via the simple PLC function or combination of X terminal states |
| Onboard PID | It realizes process-controlled closed loop control systerm easily |
| Auto voltage regulation(AVR) | It can keep constant output voltage automatically when the main voltage changes |
| Overvoltage/Overcurrent stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current |
| Torque limit and control | It can limit the torque automatically and prevent frquent over current tripping during the running process |
| Instantaneous stop doesn't stop | The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time |
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive |
| High performace | Control of asynchronous motor is implemented throgh the high-performance current vector
Control technology |
| Timing control | Time range:0.0-6500.0 minutes |
| Communication methods | RS485 |
| Running command channel | Given by the panel,control terminals.Serial communication port,can be switched by many ways |
| Frequency source | 10 kinds of frequency source,given by Digital analog voltage,analog current,Pulse,serial port.can be switched by man ways. |
| Auxiliary frequency source | 10 kinds of Frequency source,can easily realize Micro ajustment,frequency Synthesizer. |
Input and output | Input terminal | 6 digitak input terinals,one of which supports up to100kHz high-speed pulse input.
2 analog input terminal,one of which only supports 0-10v voltage input and the other supports 0-10v voltage input or 4-20 mA current input |
| Output termianl | 1 digital output terminal
1 relay output terminal
1 analog output termianl:that supports 0-20 mA current output or 0-10V voltage ouput |

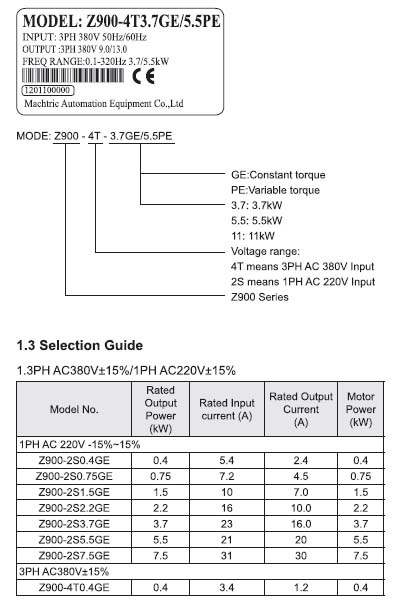

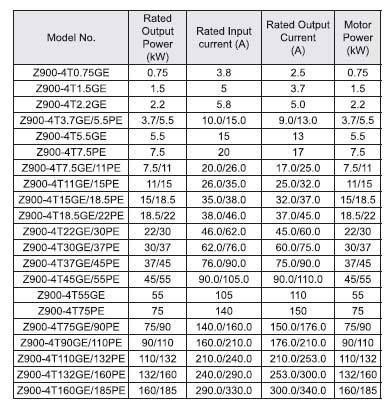

Power reference

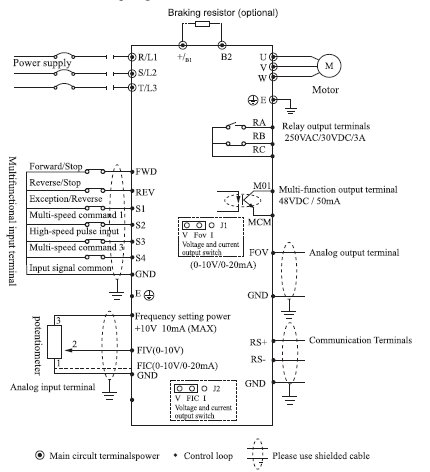

Wiring diagram
Application| Extruder | Ball mill |
| Elevator and lift | Textile equipment |
| Paper Machinery | Screw output device |
| Drawing Equipment | Dyeing plant |
| Injiection plastic equipment | Air Conditioning systerm |
| Machine tool equipment | Boiler system |
| Chemical fiber equipment | water supply |
| oil transportation installation | Food packaging machine |
| Chemical machine | Spinning frame,ETC. |
