Zb Open Type Wire Wound Resistor

Name: Zb Open Type Wire Wound Resistor
Brand: all-electronics-online.com
SKU: 826949535
Availability: InStock
Rating: 4.7 (143 reviews)

Price:	US $ 0.01-4.99/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZB
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Tolerance:	5%,10%
Resistance Range:	0.5-500ohm
Product Name:	Zb Type Plate High Power Resistor/Wirewound Resist
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	SMD Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount
Type:	Fuse Resistor
Brand:	Liwang

Product Description

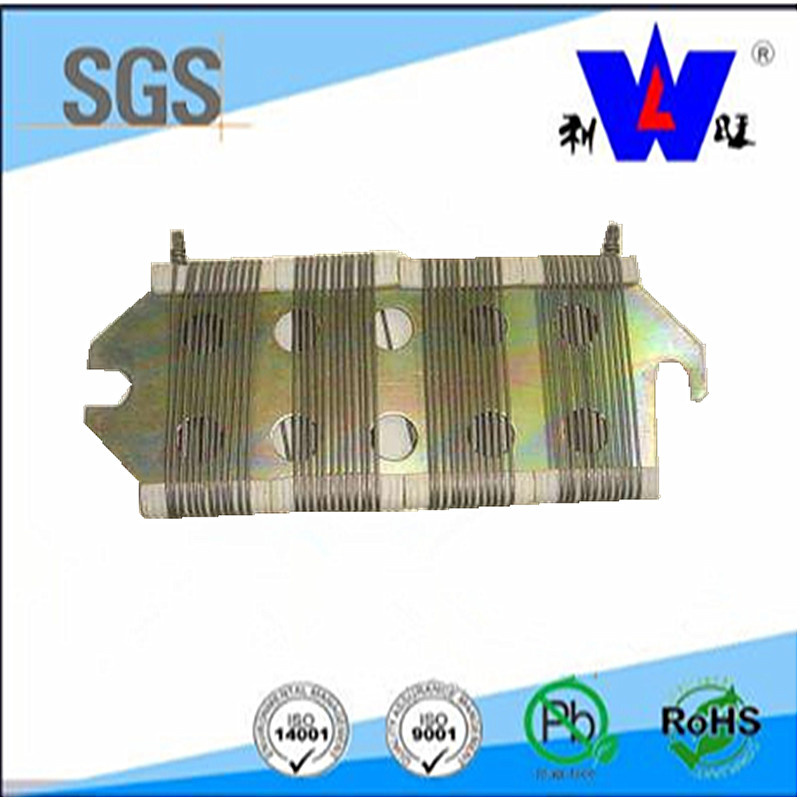

Product description of Zb Type Plate High Power Resistor/Wirewound Resistor with ISO9001
Specifications
1.ZB plate type high power resistor
2.Can be used seprately or smart combination using,
3.Heavy power load

Features:
1.Can be used seprately or smart combination using,
heavy power load, good thermal conditions and
long life design.
2.Rated power ambient temperature +70ºC
3.Rated power 300W,400W,500W
4.Insulation voltage:AC2.5KV/1min 50Hz
5.Tolerance±10%
6.Operating temperature rang-55ºC~315ºC
7.Protecting degree:IP00
8.Application area: braking circuit and absorbing circuit

Type

Power (W)

Resistance
Range(Ω)

Dimensions(mm)

Tolerance

T.C.R
(PPM/ºC)

350

0.5~500Ω

306

252

128

105

J=±5% K=±10%

350PPM/ºC≤TCR
≤+350PPM/ºC

500

0.5~500Ω

365

305

128

105

1000

0.5~500Ω

352

300

158

134

Advantage:
1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.professional & experienced management team

Selling point
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand

It's our pleasure to be on service of you.Thanks.

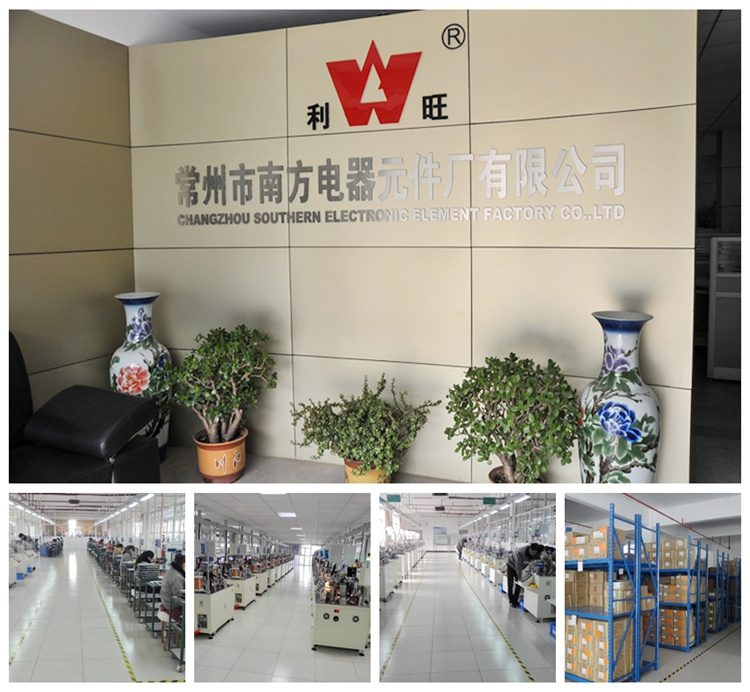

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
