Zemic Alloy Steel Load Cell Hm14c 10t to 50t

Name: Zemic Alloy Steel Load Cell Hm14c 10t to 50t
Brand: all-electronics-online.com
SKU: 689231332
Availability: InStock
Rating: 4.9 (47 reviews)

Price:	US $ 100-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM14C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	10-50t
Material:	Alloy Steel
IP Rating:	Waterproof

Product Description

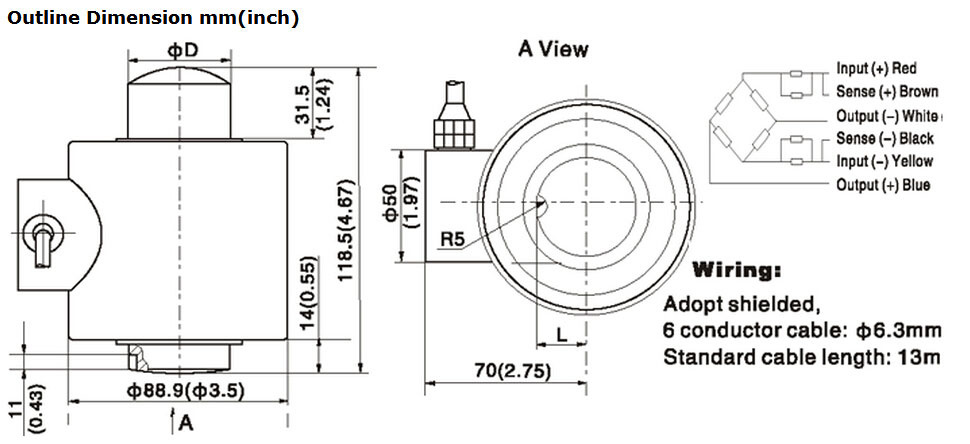

ZEMIC Load Cell HM14C

Specifications:
*HM14C load cells are available in the capacities 10t to 50t .
*Alloy steel construction,hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
*Column structure,anti-reversal design,good self-aligning ability, suitable for electronic platform scales,automobile testing facilitis, hopper scales and other electronic weighing devices.

Features:
1. Capacity 10t to 50t .
2. High accuracy.
3. Alloy steel construction.
4. Easy installation and reliable performance.

Specifications:

Capacity	t	10/20/25/30/40/50
Accuracy class		C2	C3	A5S	A5M
Maximum number of verification intervals	n max	2000	3000	5000	5000
Minimum load cell verification interval	v min	Emax/5000	Emax/10000	Emax/15000	Emax /15000
Combined error	(%FS)	≤± 0.030	≤± 0.020	≤± 0.018	≤± 0.026
Creep	(%FS/30min)	≤± 0.024	≤± 0.016	≤± 0.012	≤± 0.017
Temperature effect on sensitivity	(%FS/10ºC)	≤± 0.017	≤± 0.011	≤± 0.009	≤± 0.013
Temperature effect on zero	(%FS/10ºC)	≤± 0.023	≤± 0.015	≤± 0.010	≤± 0.014
Output sensitivity	(mv/v)	1.5 ± 0.004
Input resistance	( Ω )	700 ± 7
Output resistance	( Ω )	703 ± 4
Insulation resistance	(M Ω )	≥ 5000(50VDC)
Zero balance	(%FS)	1.0
Temperature, compensated	( ºC )	-10~+40
Temperature,allowed	( ºC )	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
