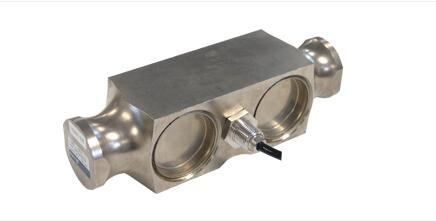

Zemic Alloy Steel Load Cell Hm9e

Name: Zemic Alloy Steel Load Cell Hm9e
Brand: all-electronics-online.com
SKU: 725277322
Availability: InStock
Rating: 4.6 (97 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM9E
Capacity:	5klb to 250klb and 20t to 100t
Material:	Alloy Steel
Certification:	Ntep

Product Description

HM9E load cell are available in the capacities 5Klb to
250Klb and 20t to 100t.
Alloy steel construction, hermetically welded,oil-proof,
waterproof ,anti-corrosive gas or medium making it
Suitable for all kinds of environments.
Dual shear beam, suitable for electronic truck scales,
track scales, automobile testing facilities and other
electronic weighing devices.

Features

Capacity:5Klb to 250Klb and 20t to 100t
High accuracy.
Alloy steel construction.
Easy installation and reliable performance.

Specifications

Capacity	Klb	50/60/65/75/100/125/150/200/250
Capacity	t	20/30/40/45/50/60/100
Accuracy class		C2	C3	A5S	A5M
Maximum number of verification intervals	n max	2000	3000	5000	5000
Minimum load cell verification interval	v min	Emax/5000	Emax/10000	Emax/15000	Emax/15000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.018	≤±0.026
Creep	(%FS/30min)	≤±0.024	≤±0.016	≤±0.012	≤±0.017
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.017	≤±0.011	≤±0.009	≤±0.013
Temperature effect on zero	(%FS/10ºC)	≤±0.023	≤±0.015	≤±0.010	≤±0.014
Output sensitivity	(mv/v)	3.0±0.003
Input resistance	(Ω)	700 ±7
Output resistance	(Ω)	703 ±4
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.0
Temperature, compensated	(ºC)	-10~+40
Temperature,allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
