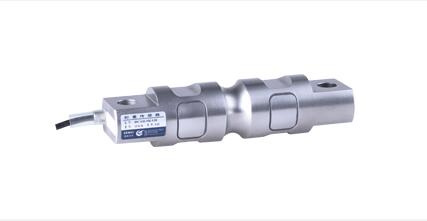

Zemic Load Cell B9c

Name: Zemic Load Cell B9c
Brand: all-electronics-online.com
SKU: 725286222
Availability: InStock
Rating: 4.5 (112 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B9C
Capacity:	5klb to 250klb

Product Description

Products specification

B9C load cell are available in the capacities 5Klb to 250Klb.
Stainless steel construction, potted by adhesive inside,
oil-proof,waterproof and anti-corrosive gas
and medium making it suitable for use in all kinds of environments.
Dual shear beam ,suitable for electronic truck scales, automobile
testing facilities, track scales and other electronic weighing devices.

Features

Capacity:5Klb to 250Klb.
High accuracy.
Stainless steel construction.
Easy installation and reliable
performance.
Low profile.

Specifications

Capacity	Klb	5/10/15/20/30/40/50/60/75/100/150/200/250
Accuracy		C2	C3	C4	A5M	B10M
Maximum number of verification intervals	n max	2000	3000	4000	5000	10000
Minimum load cell verification interval	v min	Emax/5000	Emax/10000	Emax/14000	Emax/15000	Emax/10000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.018	≤±0.026	≤±0.050
Creep	(%FS/30min)	≤±0.024	≤±0.016	≤±0.012	≤±0.017	≤±0.040
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.017	≤±0.011	≤±0.009	≤±0.013	≤±0.040
Temperature effect on zero	(%FS/10ºC)	≤±0.023	≤±0.015	≤±0.010	≤±0.014	≤±0.020
Output sensitivity	(mv/v)	3.0±0.008
Input resistance	(Ω)	700 ±7
Output resistance	(Ω)	703 ±4
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.0
Temperature, compensated	(ºC)	-10~+40
Temperature,allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300

Gromy Scale Co., Ltd. is a professional manufacturer and exporter committed to weighing equipments research and manufacture. We are located in beautiful Hangzhou, with convenient transportation access. We provide wide range of equipment scale, weighing indicator, load cell, balance, household scale, body scale, commercial scale floor scale, truck scale, test weights and other instruments. We have more than 10 years experience in this area, all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

As a result of our high quality products and outstanding customer service, we have been providing our products to more than 50 countries and areas, reaching Europe, South America, North America, Asia-Pacific and Africa markets.

With the vision of "improving everyday", Gromy Scale will continue to provide the high standard and most cost-effective weighing products for the majority of weighing companies all over the world.

If you are interested in our existing models as well as OEM customized products, we warmly welcome your business inquiry; We are here to serve you best.

We always welcome your visit and inquiry!
