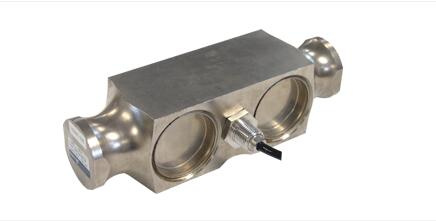

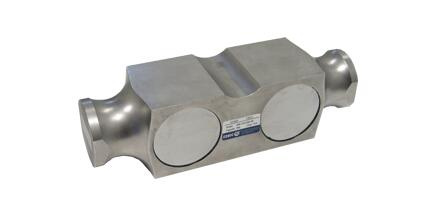

Zemic Load Cell B9e

Name: Zemic Load Cell B9e
Brand: all-electronics-online.com
SKU: 725278442
Availability: InStock
Rating: 4.6 (136 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B9E
Capacity:	50klb to 150klb

Product Description

B9E load cell are available in the capacities 50Klb to 150Klb.
Stainless steel construction, potted by adhesive inside,oil-proof,
waterproof and anti-corrosive gas and medium making it
suitable for all kinds of environments.
Dual shear beam and they are suitable for truck scales,hopper
scales and other electronic weighing devices.

Features
Capacity:50Klb to 150Klb.
High accuracy.
Stainless steel construction.
Easy installation and reliable
performance.

Specifications

Capacity	Klb	50/60/65/75/100/125/150
Accuracy class		C2	C3	A5M	B10M
Maximum number of verification intervals	n max	2000	3000	5000	10000
Minimum load cell verification interval	v min	Emax/5000	Emax/10000	Emax/15000	Emax/15000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.018	≤±0.026
Creep	(%FS/30min)	≤±0.024	≤±0.016	≤±0.012	≤±0.017
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.017	≤±0.011	≤±0.009	≤±0.013
Temperature effect on zero	(%FS/10ºC)	≤±0.023	≤±0.015	≤±0.010	≤±0.014
Output sensitivity	(mv/v)	3.0±0.008
Input resistance	(Ω)	700 ±7
Output resistance	(Ω)	703 ±4
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.0
Temperature, compensated	(ºC)	-10~+40
Temperature,allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
