Zemic Load Cell H9c 5klb to 250klb

Name: Zemic Load Cell H9c 5klb to 250klb
Brand: all-electronics-online.com
SKU: 732119422
Availability: InStock
Rating: 5 (87 reviews)

Price:	US $ 1-100/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	H9C
Capacity:	5klb to 250klb
Material:	Alloy Steel

Product Description

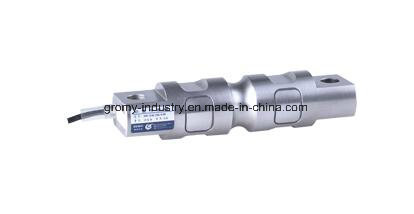

Zemic Load Cell H9C 250klb

Description:
1. H9C load cell are available in the capacities 5Klb to 250Klb.
2. Alloy steel construction,potted by adhesive inside, oil-proof, waterproof anti-corrosive gas or medium
making it suitable for all kinds of environments.
3. Dual shear beam,easy installation, suitable for electronic truck scales, track scales,automobile testing
facilities and other electronic weighing devices.

Features:
1. Capacity:5Klb to 250Klb.
2. High accuracy.
3. Alloy steel construction.
4. Easy installation and reliable performance.
5. Low profile.
6. With OIML approval. With NTEP approval.

Specifications:

Capacity	Klb	5/10/20/30/40/50/60/75/100/150/200/250
Accuracy		C2	C3	C4	A5M	B10M
ApprovalS			OIML R60 C3	OIML R60 C4	III 5000 single	III L1000 Multiford
Maximum number of verification intervals	n max	2000	3000	4000	5000	10000
Minimum load cell verification interval	v min	Emax/5000	Emax/10000	Emax /14000	Emax /15000	Emax /10000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.018	≤±0.026	≤±0.050
Creep	(%FS/30min)	≤±0.024	≤±0.016	≤±0.012	≤±0.017	≤±0.040
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.017	≤±0.011	≤±0.009	≤±0.013	≤±0.040
Temperature effect on zero	(%FS/10ºC)	≤±0.023	≤±0.015	≤±0.010	≤±0.014	≤±0.020
Output sensitivity	(mv/v)	3.0±0.008
Input resistance	(Ω)	700±7
Output resistance	(Ω)	703±4
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.0
Temperature, compensated	(ºC)	-10~+40
Temperature,allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
