Zemic Load Cell Hm9a

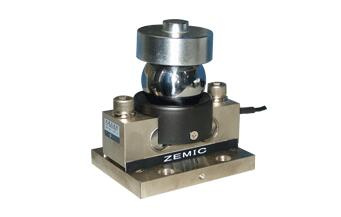

Name: Zemic Load Cell Hm9a
Brand: all-electronics-online.com
SKU: 725286992
Availability: InStock
Rating: 4.8 (96 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM9A
Capacity:	10t to 50t
Material:	Alloy Steel

Product Description

Products specification

HM9A load cells are available in the capacities 10t to 50t.
Alloy steel construction, nickel plated,hermetically welded,
oil-proof, waterproof and anti-corrosive gas and medium making
it suitable for all kinds of environments.
Dual shear beam, suitable for electronic truck scales,
railway scales and other electronic weighing devices.

Features:
Capacity:10t-50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable performance.
Accessories:
Button, steel ball, ball cup,
base plate.

Specifications

Capacity	t	10/15/20/25/30/40/40SE/50
Accuracy		C1	C2	C3	A5M	B10M
Max number of verification intervals	n max	1000	2000	3000	5000	10000
Mini number of verification intervals	v min	Emax/3000	Emax/5000	Emax /10000	Emax /15000	Emax /10000
Combined error	(%FS)	≤±0.050	≤±0.030	≤±0.020	≤±0.026	≤±0.050
Creep	(%FS/30min)	≤±0.038	≤±0.024	≤±0.016	≤±0.017	≤±0.040
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.028	≤±0.017	≤±0.011	≤±0.013	≤±0.040
Temperature effect on zero	(%FS/10ºC)	≤±0.047	≤±0.023	≤±0.015	≤±0.014	≤±0.020
Output sensitivity	(mv/v)	2.0±0.002
Input resistance	(Ω)	700±3.5
Output resistance	(Ω)	703±3.5
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.5
Temperature, compensated	(ºC)	-10~+40
Temperature,allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
