Zemic Load Cell Hm9c

Name: Zemic Load Cell Hm9c
Brand: all-electronics-online.com
SKU: 725284812
Availability: InStock
Rating: 4.4 (41 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM9C
Capacity:	5klb to 250klb
Material:	Alloy Steel

Product Description

Products specification

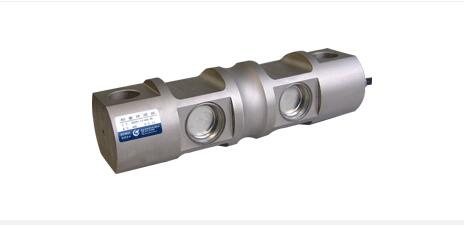

HM9C load cell are available in the capacities 5Klb to 250Klb.
Alloy steel construction, hermetically sealed, oil-proof,
waterproof and anti-corrosive gas or medium making it
suitable for all kinds of environments.
Dual shear beam,suitable for electronic
truck scales, tracks scale,automobile testing facilities and other
electronic weighing devices.

Features
Capacity:5Klb to 250Klb.
High accuracy.
Alloy steel construction.
Easy installation and reliable
performance.
With OIML approval.

Specifications

Capacity	Klb	5/10/20/30/40/50/60/75/100/150/200/250
Accuracy		C2	C3	A5S	A5M
ApprovalS			OIML R60 C3
Maximum number of verification intervals	n max	2000	3000	5000	5000
Minimum load cell verification interval	v min	Emax/5000	Emax/10000	Emax/15000	Emax/15000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.018	≤±0.026
Creep	(%FS/30min)	≤±0.024	≤±0.016	≤±0.012	≤±0.017
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.017	≤±0.011	≤±0.009	≤±0.013
Temperature effect on zero	(%FS/10ºC)	≤±0.023	≤±0.015	≤±0.010	≤±0.014
Output sensitivity	(mv/v)	3.0±0.008
Input resistance	(Ω)	700±7
Output resistance	(Ω)	703±4
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.0
Temperature, compensated	(ºC)	-10~+40
Temperature,allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
