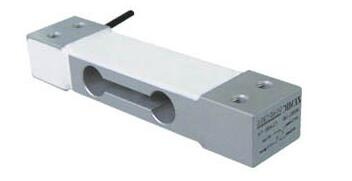

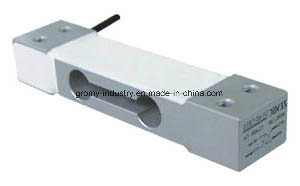

Zemic Load Cell L6d-Fs Weighing Sensor

Zemic Load Cell L6d-Fs Weighing Sensor
Price: US $ 1-100/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: L6D-FS
Capacity: 3kg to 50kg
Pattern: Single Point
Material: Alloy
IP Rating: IP66

Product Description

Zemic Load Cell L6d-Fs Weighing Sensor

Specifications
Maximum Capacitykg3/5/8/10/15/20/35/40/50
SensitivitymV/V2.0±0.2
Accuracy Class C3
Maximum numberof
load cell intervals
 3000
Temperature effect
on zero
%FS/10ºC0.009
Temperature effect
on span
%FS/10ºC(-10~40ºC)0.0087
Combined error%FS0.015
Creep/DR (30min)%FS0.0184
Input resistanceΩ406±6
Output resistanceΩ350±3
Insulation resistance≥5000(50VDC)
Zero balance%FS2
Nominal temperature rangeºC-10~+40
Operating temperature rangeºC-35~+65
Recommended
excitation voltage,
V5~15
Safe load limit%FS120
Ultimate load limit%FS150
Recommend platform sizemm400x400
Material Aluminium
Protection class IP66
Sealing Coated

Zemic Waterproof Scale Load Cell L6d-Fs Weighing Sensor
Gromy Scale Co., Ltd. is a professional manufacturer and exporter committed to weighing equipments research and manufacture. We are located in beautiful Hangzhou, with convenient transportation access. We provide wide range of equipment scale, weighing indicator, load cell, balance, household scale, body scale, commercial scale floor scale, truck scale, test weights and other instruments. We have more than 10 years experience in this area, all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

As a result of our high quality products and outstanding customer service, we have been providing our products to more than 50 countries and areas, reaching Europe, South America, North America, Asia-Pacific and Africa markets.

With the vision of "improving everyday", Gromy Scale will continue to provide the high standard and most cost-effective weighing products for the majority of weighing companies all over the world.

If you are interested in our existing models as well as OEM customized products, we warmly welcome your business inquiry; We are here to serve you best.

We always welcome your visit and inquiry!
