Zemic OIML Approval Load Cell L6d 2.5kg to 50kg

Name: Zemic OIML Approval Load Cell L6d 2.5kg to 50kg
Brand: all-electronics-online.com
SKU: 689234292
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	L6D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Drum Chip
Color:	Black
Printer Model:	Chip for Lexmark W850
Black Cartridge Model:	W850h22g
Page Yield:	80k
Original:	China
Certificate:	RoHS
Defective Rate:	<0.3%
Replacement:	1:1
Supplier Ability:	10, 000, 000 PCS Per Months
Material:	Aluminum

Product Description

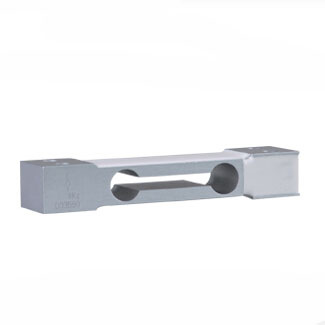

Zemic OIML Approval Load Cell L6D 2.5kg to 50kg

*L6D load cells are available in the capacities 2.5kg to 50kg.
*Alumium construction with parallel beam.
*Silicon adhesive sealed, surface anodized and anti-corrosion.
*Intergral structure and easy installation.
*Suitable for pricing scale, platform scale and other electronic weighing devices.

Features:
1. Capacity:2.5kg to 50kg .
2. High accuracy..
3. Max. platform size: 250x350mm.
4. Intergral installation.
5. With OIML approval.

Specifications:

Capacity		2.5/3/5/6/8/10/15/20/30/35/40/50
Accuracy	kg	C3D	C3	C3G
Approvals			OIML R60 C3
Maximum numberof verification intervals	n max	2500	3000	4000
Minimum load cell verification interval	v min	Emax/5000	Emax/7000	Emax/11000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.015
Creep	(%FS/30min)	≤±0.020	≤±0.0167	≤±0.0125
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.021	≤±0.0175	≤±0.0131
Temperature effect on zero	(%FS/10ºC)	≤±0.028	≤±0.020	≤±0.0127
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	409±6/1065±15
Output resistance	(Ω)	350±3/1000±10
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(ºC)	-10~+40
Temperature,operating	(ºC)	-35~+65
Excitation,Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm
