Zemic OIML Approval Load Cell L6e3 for Platform Scale

Name: Zemic OIML Approval Load Cell L6e3 for Platform Scale
Brand: all-electronics-online.com
SKU: 689232392
Availability: InStock
Rating: 4.7 (33 reviews)

Price:	US $ 12-30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	L6E3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	50kg to 300kg
Max. Platform Size:	450X450mm
Material:	Aluminum

Product Description

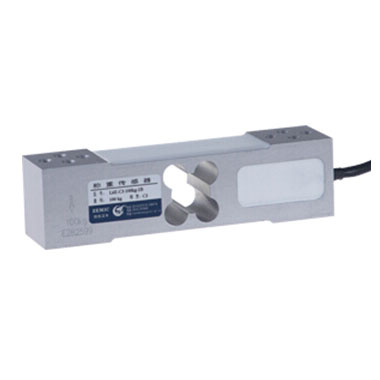

Zemic OIML Approval Load Cell L6E3 for Platform Scale

Products specification:
*L6E3 load cells are available in the capacities 50kg to 300kg. And the customized capacity is available by request.
*Aluminum construction with parallel beam.
*Silicon adhesive sealed, surface anodized and anti-corrosion.
*Intergral structure and easy installation.
*Suitable for electronic pricing scales, platform scales and other electronic weighing devices.

Features:
1. High accuracy.
2. Max. platform size: 450x450mm.
3. With OIML approval.

Specifications:

Capacity	kg	50/100/150/200/250/300
Accuracy		C3D	C3	C3G
Approvals			OIML R60 C3
Maximum number of verification intervals	n max	2500	3000	4000
Minimum load cell verification interval	v min	Emax/5000	Emax/7000	Emax/11000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.015
Creep	(%FS/30min)	≤±0.020	≤±0.0167	≤±0.0125
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.021	≤±0.0175	≤±0.0131
Temperature effect on zero	(%FS/10ºC)	≤±0.028	≤±0.020	≤±0.0127
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	406±6
Output resistance	(Ω)	350±3
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(ºC)	-10~+40
Temperature,operating	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm

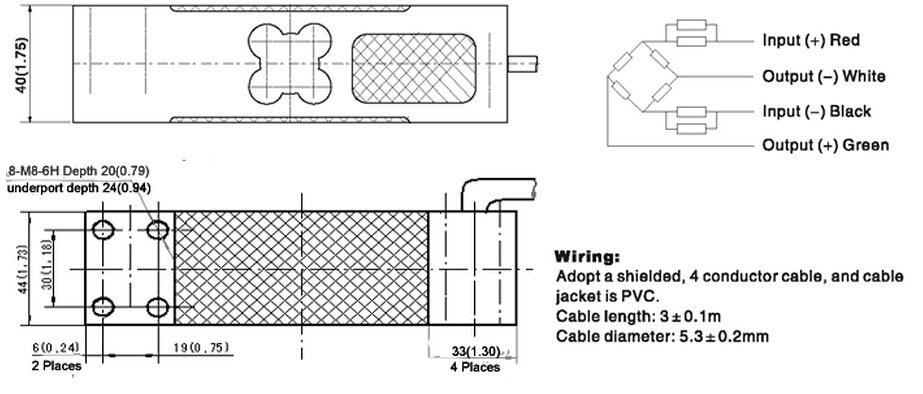

Outline Dimension mm(inch):
