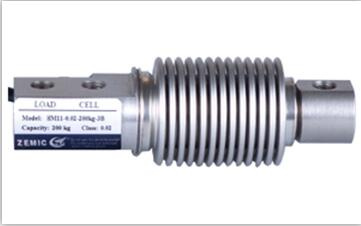

Name: Zemic Table Scale Load Cell Hm11
Brand: all-electronics-online.com
SKU: 723041132
Availability: InStock
Rating: 4.6 (94 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM11
Material:	Alloy Steel

Product Description

HM11 load cells are available in the capacities 5kg to 500kg.
And the customized capacity is available by request.
Alloy steel construction,welded with bellow,potted by
adhesive inside,oil-proof,waterproof and anti-corrosive gas and
medium making it suitable for all kinds of environments.
Single point with bellow, easy installation,suitable for crane scales,
mechanical conversion scales,hopper scales and other
electronic weighing devices.
Safe and anti-explosive product, can be used in
atrocious environment and hazardous areas.

Features

Alloy steel construction.
High accuracy.
Low profile and nice exterior.

Specifications

Capacity	kg	5/10/20/30/50/100/200/250/300/350/500
Accuracy class		C2	C3	A5S	A5M	B10S	B10M
Maximum number of verification intervals	n max	2000	3000	5000	5000	10000	10000
Minimum load cell verification interval	v min	Emax /5000	Emax/10000	Emax/15000	Emax/15000	Emax/10000	Emax/10000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.018	≤±0.026	≤±0.035	≤±0.050
Creep	(%FS/30min)	≤±0.024	≤±0.016	≤±0.012	≤±0.017	≤±0.030	≤±0.040
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.017	≤±0.011	≤±0.009	≤±0.013	≤±0.030	≤±0.040
Temperature effect on zero	(%FS/10ºC)	≤±0.023	≤±0.015	≤±0.010	≤±0.014	≤±0.030	≤±0.020
Output sensitivity	(mv/v)	2.0±0.02
Input resistance	(Ω)	460±50
Output resistance	(Ω)	351±2
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.0
Temperature, compensated	(ºC)	-10~+40
Temperature, allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
