Zemic Table Scale Load Cell L6n 3kg to 100kg

Name: Zemic Table Scale Load Cell L6n 3kg to 100kg
Brand: all-electronics-online.com
SKU: 751673635
Availability: InStock
Rating: 4.3 (97 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	L6N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Aluminum

Product Description

Zemic OIML Approval Table Scale Load Cell L6N 3kg to 100kg

Products specification
*L6N load cells are available in the capacities 3kg to 100kg.
*Alumium construction with parallel beam.
*Silicon adhesive sealed, surface anodized and anti-corrosion.
*Intergral structure and easy installation.
*Suitable for electronic balance and other electronic weighing devices.

Features:
1. Capacity:3kg to 100kg .
2. High accuracy.
3. Max. platform size: 400x400mm.
4. With OIML approval.

Specifications:

Capacity	(kg)	3/5/8/10/15/20/30/40/50/75/100
Accuracy		C3
Approvals		OIML R60 C3
Maximum number of verification intervals	n max	3000
Minimum load cell verification interval	v min	Emax/7000
Combined error	(%FS)	≤±0.020
Creep	(%FS/30min)	≤±0.0167
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.0175
Temperature effect on zero	(%FS/10ºC)	≤±0.020
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	406±6
Output resistance	(Ω)	350±3
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(ºC)	-10~+40
Temperature,operating	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm

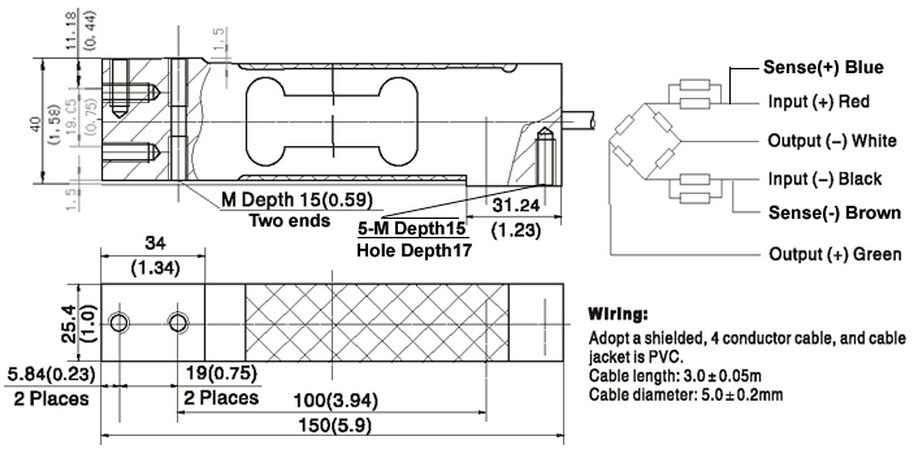

Outline Dimension mm(inch):
