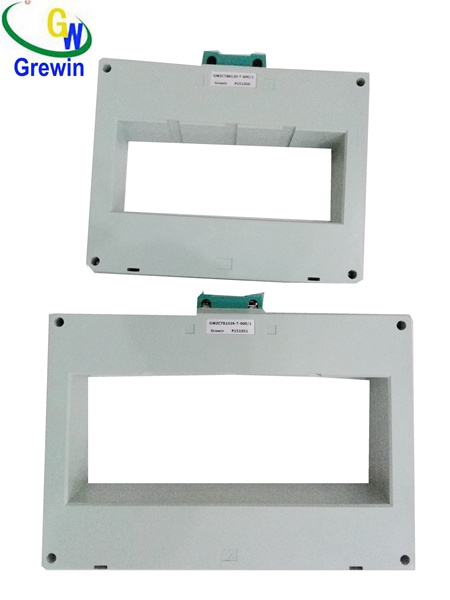

Zero Current Transformer

Name: Zero Current Transformer
Brand: all-electronics-online.com
SKU: 615549204
Availability: InStock
Rating: 5 (80 reviews)

Price:	US $ 0.6-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Type 2:	Zero Current Transformer
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Power rating: 0.6VA
Frequency range: 50/60Hz
Rated system voltage: 380V AC
Isolated voltage: 2, 500V AC
Operating temperature range: -40 to +85° C
Storage temperature range: -45 to +90° C
Terminals: PC board or wire assembly
Conforms to IEC 60044-1
UL-/CE-approved and fully RoHS-compliant
Applications: Current measurements and power meter
Split Core Current Transformers \mA or 0.333-3.53V Rated Secondary Output

Low cost:
4 standard sizes
Split core design, safer, easier installation, and portable
Applications
Measures AC current flow to electric motors,
Lighting, air condition equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.
Specifications
Rated Primary current: 100-300AAC
Rated Secondary: MA or 0.333-3.53Vac
Accuracy: 0.5, 1.0, 3.0 Class
Rated security coefficient: FS< 5
Case Material: Nylon Resin UL flame retardant rating 94-V0
Highest Voltage for Equipment Um (RMS): 720 Vac
Rated Power-Frequency Withstand Voltage (RMS): 3, 000 Vac
Frequency Range: 50/60Hz.
Operating Temperature: -15 to 60
RoHS compliant
Leads: 0.8Foot(240mm), UL 1015, Twisted Pair,
0.34 mm2(22AWG)

Aliceli
Tianjin Grewin Technology Co.,Ltd.
Website:www.grewin-tech.com

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
