Zero- Flux Single Turn Winding Current Transformers (GWTA3371)

Name: Zero- Flux Single Turn Winding Current Transformers (GWTA3371)
Brand: all-electronics-online.com
SKU: 615549234
Availability: InStock
Rating: 4.4 (81 reviews)

Price:	US $ 0.5-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWTA3371
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Shell Material:	PBT or ABS
Accuracy Class:	Class 0.02
Working Frequency Bound:	50-5hhz
Design Advantage:	PCB Mounted
Ratio:	2000:1
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Certification:	Ce,SGS
Brand:	Grewin

Product Description

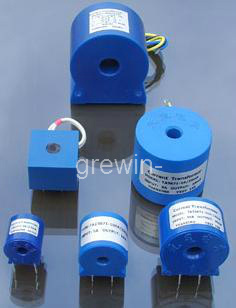

The GREWIN series Mini current transformers are designed for applications where AC current signals must be transformed accurately into a lower AC current or voltage signal appropriate for micro-processor based circuits.
The TAXX7X series of Zero-flux miniature current transformers are sampling transformers designed specifically for high quaity measuring instrument,It doesn't need any compensating measure, Which require exceptionally accurate primary signal transformation and insolation.
Grewin can designe and manufacture to meet the specific design challenges of the client's specific application.The following models are only a small sampling of the many different products which have been and are currently being manufactured.

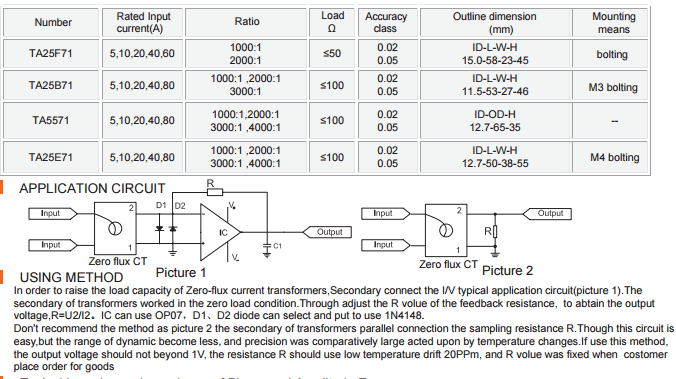

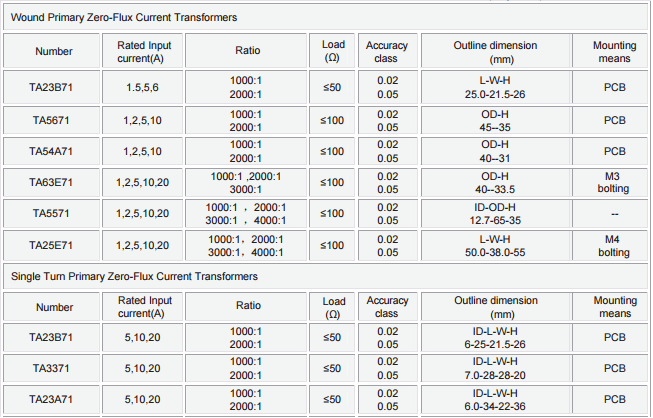

Zero-Flux Current Transformers \ Current Transformers
Features:
Low cost
Many standard sizes
Single Turn Primary Winding
Non-symmetrical mounting pattern
Applications:
For applications that require exceptional
         accuracy with minimal phase angle error
Applications would include Current, power and
         energy monitoring devices.
Specifications:
Rated primary current:1A,5A,10A,20A,50A,100A
Rated secondary current:1mA,2mA,2.5mA,5mA
         10mA ,20mA ,50mA
Rated Load Resistance:10,20,50 Ohms
Frequency:50 to 5KHz
Accuracy Class:as defined in IEC 60044-1 Part
         1 Current Transformers Class 0.01,0.02
Operating Temperature:-25 to +55ºC,-40 to
        +85ºC optional
Isolation Current:2500 Vrms for 1 minute
Dielectric Resistance:1000 M Ohms @ 500 Vdc
Surge Withstand: 5000V
Exterior Material:PBT Resin UL flame retardant
         rating 94V-O
Interior Insulation:Epoxy Encapsulated
RoHS Compliant

Contact info :

Tianjin Grewin Technology Co., Ltd
Contact:Victor Dong
M: 86-13820617229
T:86-22-84943756
F:86-22-85909471

Website: http://www.grewin-tech.com/

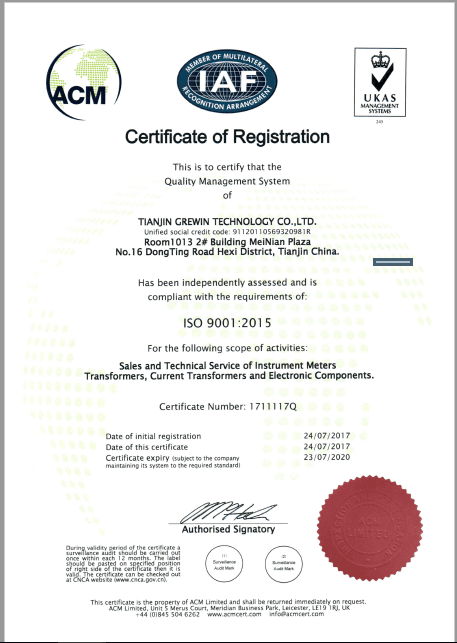

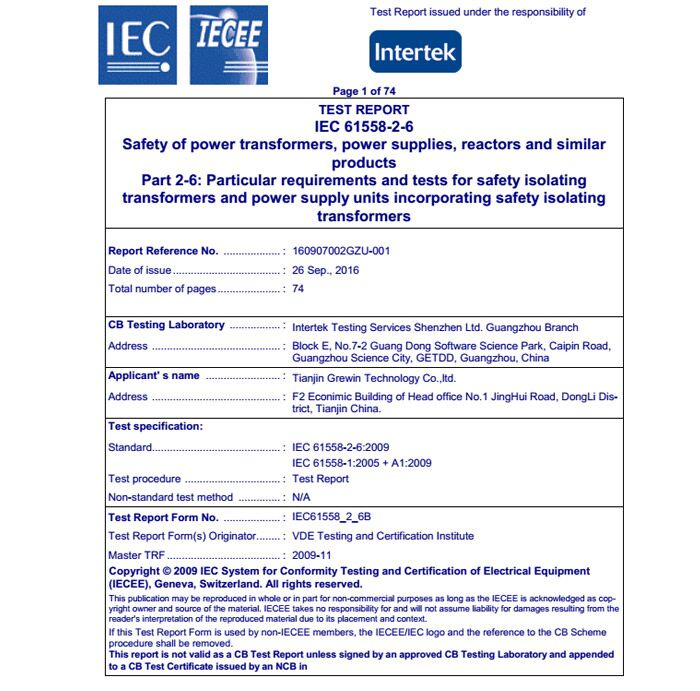

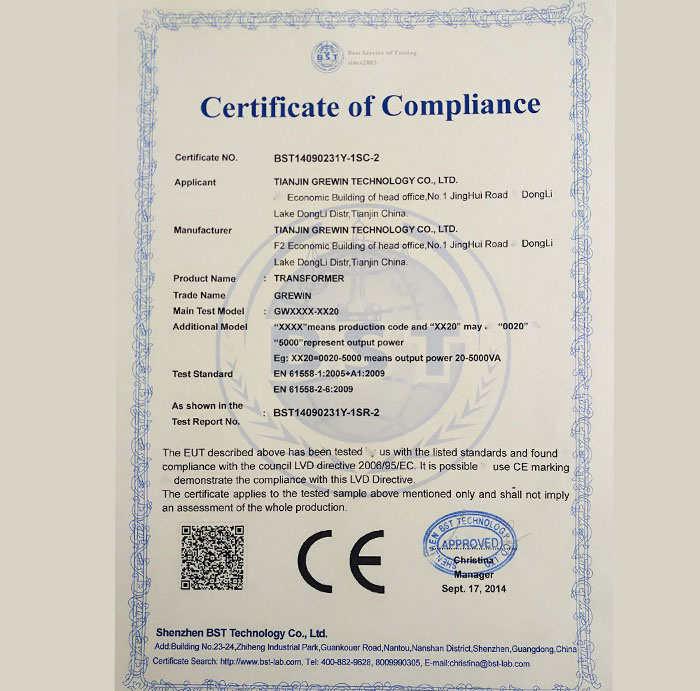

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
