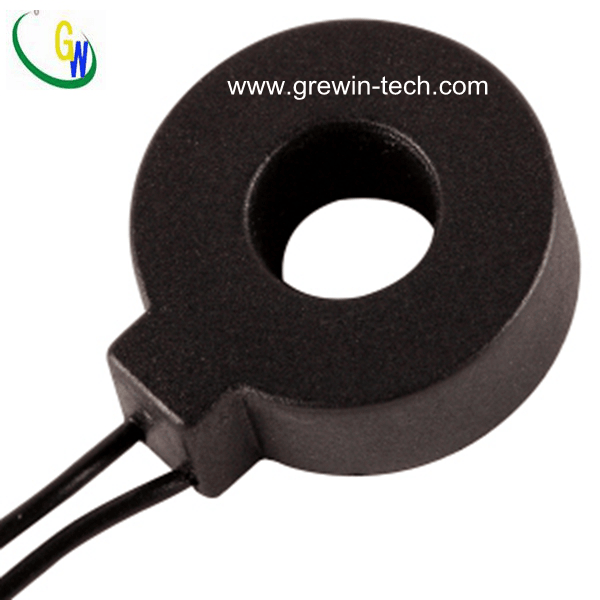

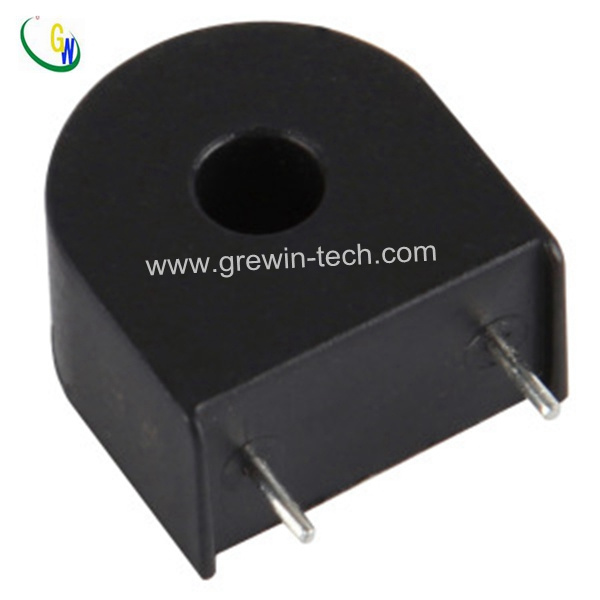

Zero Flux Voltage Transformer with Gwza Serie

Prod Model:	GWZA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Application:	Lighting
Type:	Voltage Transformer
Phase:	Single

Product Description

The GREWIN series Miniature voltage transformers are designed for applications where AC voltage signals must be transformed accurately into a lower AC voltage signal appropriate for micro-processor based circuits. The TAXX7X series of Zero-flux miniature voltage transformers are sampling transformers designed specifically for high quaity measuring instrument,It doesn't need any compensating measure,Which require exceptionally accurate primary signal transformation and insolation. YUANXING can designe and manufacture to meet the specific design challenges of the client's specific application.The following models are only a small sampling of the many different products which have been and are currently being manufactured.





del No	A(min)	B(max)	C(max)	D(max)	E(max)	F(±3.0)	G(±1.0)	Current rating
GWZA59	5.9 2.232″	17.4 0.685″	8.0 0.315″	20.5 0.807″	5.5 0.217″	73.0  2.874″	3.0 0.118″	15A 30A
GWZA60	6.0 0.236″	14.0 0.551″	9.0 0.354″	17.5 0.689″	5.7 0.224″	40.0 1.575″	3.0 0.118″	20A 30A
GWZA69	6.9 0.272″	17.1 0.673″	6.7 0.264″	19.1 0.752″	5.2 0.205″	50.0 1.969″	3.0 0.118″	15A 30A
GWZA73	7.3 0.287″	19.1 0.752″	8.1 0.319″	22.0 0.866″	7.0 0.276″	73.0 2.874″	3.0 0.118″	15A 30A
GWZA89	8.9 0.350″	22.0 0.866″	8.2 0.323″	25.0 0.984″	7.0 0.276″	120± 5.0 4.724″	4.0± 0.5 0.157″	30A 50A
GWZA99	9.9 0.390″	24.0 0.945″	9.0 0.354″	27.0 1.063″	6.0 0.236″	73.0 2.874″	3.0 0.118″	50A 75A
GWZA125	12.5 0.492″	26.2 1.031″	9.0 0.354″	29.0 1.142″	6.45 0.254″	120± 5.0 4.724″	4.0± 0.5 0.157″	50A
GWZA156	15.6 0.614″	30.3 1.193″	9.0 0.354″	33.2 1.307″	6.3 0.248″	73.0 2.874″	3.0 0.118″	100A
GWZA194	19.4 0.764″	40.5 1.594″	10.0 0.394″	43.5 1.713″	12.1 0.476″	87.0 3.425″	6.0 0.236″	100A 150A
GWZA260	26.0 1.024″	49.5 1.949″	15.1 0.594″	52.5 2.067″	8.8 0.346″	106.0 4.173″	6.0 0.236″	225A

1. Features
Low cost
Many standard sizes
Single Turn Primary Winding
Non-symmetrical mounting pattern

2. Applications
For applications that require exceptional
Accuracy with minimal phase angle error
Applications would include Current, power and
Energy monitoring devices.

3. Specifications
Rated primary current: 1A, 5A, 10A, 20A, 50A, 100A
Rated secondary current: 1mA, 2mA, 2.5mA, 5mA
10mA, 20mA, 50mA
Rated Load Resistance: 10, 20, 50 Ohms
Frequency: 50 to 400 Hz
Accuracy Class: As defined in IEC 60044-1 Part
1 Current Transformers Class 0.01, 0.02
Operating Temperature: -25 to +55 degree, -40 to
+85 degree optional
Isolation Current: 2500 Vrms for 1 minute
Dielectric Resistance: 1000 M Ohms @ 500 Vdc
Surge Withstand: 5000V
Exterior Material: PBT Resin UL flame retardant
Rating 94V-O
Interior Insulation: Epoxy Encapsulated
RoHS Compliant
