| Prod Model: |
RHT-610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Zinc Alloy / Brass |
| Plating: |
Gold/Nickel/Tin Plated |
| Packing: |
PE Tray |
| Impedance: |
50 /75ohm |
| Certificate: |
RoHS |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Double Bayonet Plug-in |
| Brand: |
Renhotec |
Product Description

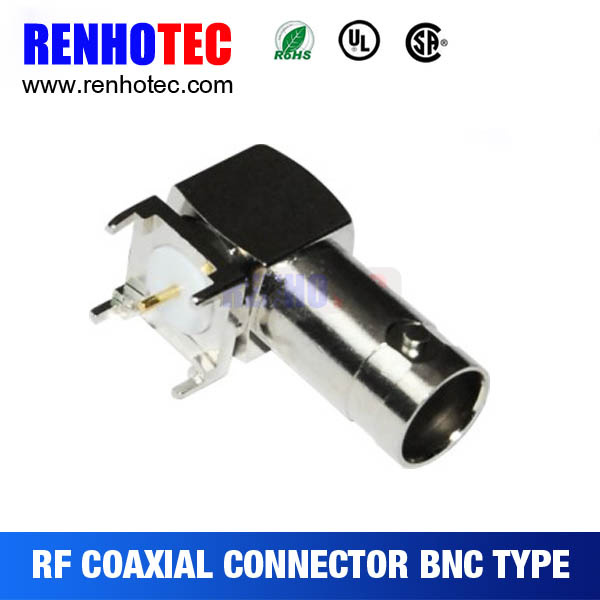

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.
| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Impendance | 50ohm, 75ohm |
| Frenquency Range | DC-4GHZ |
| Working Voltage | 500V r.m.s at sea level |
| Workstandinging Voltage | 1500V r.m.s at sea level |
| Center Contact Resistance | ≤1.5Mohm |
| Outer Contact Resistance | ≤1Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.57N |
| Insertion Loss | ≤0.20dB/3GHz |
| Voltagge Standing Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass.........................Nickel |
| Insulator | Delrin.........................Natural |
| Contact Pin | Brass.........................Gold |
| Ferrule | Copper......................Nickel |
| Suitable cables |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
Renhotec offers many types of BNC connectors. PCB mount BNC female connector/ BNC male cable connector/Flange chassis mount BNC connectors/ Straight right angle BNC connector/ Crimp solder compression type BNC connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
Package:
Normal packing: 100 pcs per tray or polybag ,800pcs per carton.
Private packing and label service are available as per your requirement.
Shipment:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Payment:
We support payment of T/T, Paypal, West Union, etc.
FAQ:
1. When can I get the quotation?
All of inquiries will be replied within 12 hours. If it is urgent, we can be reached , 24 hours online.
2. What's your MOQ?
Normally our MOQ is 500pcs. Small order is also welcome.
3. What about the lead time for production?
3-5 days for sample, 10-15 days for bulk order.
4. How do you guarantee the quality?
All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly produced accoring to UL, ROHS standards. QC will inspect goods before shipping to ensure the quality.
5. What's the warranty?
One year, 12 months.
6. How to proceed an order with you?
Please contact us by email or skype, then we will confirm you product details. If all confirmed, Proforma invoice will be available for you.
If any questions, please do not hesitate to contact with us at any time.
Welcome to contact us! We are the factory Manufactures of electronic components in China, Your best connector parner!
