| Prod Model: |
G9110-100***D* |
| Protection Level: |
IP00 |
| Max. Current: |
0.1A 5A 10A |
| Max. Voltage: |
125/250VAC |
| Electrical Life: |
10,000 ~100,000cycles |
| Mechanical Life: |
1,000,000 Cycles |
| Company Assurance System: |
ISO9001 & Ts16949 |
| Lever Type: |
Spherical Pin Plunger |
| Circuit Code: |
Spdt(1), Spst-Nc(2), Spst-No(3) |
| Pressing Type: |
Short Arm |
| Protection: |
Dust-Proof |
| Size: |
Normal Size |
| Environment: |
≧250℃﹤400℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Application: |
Auto,Phone,Computer,Timer ,etc..... |
| Brand: |
Zing Ear |
| Certification: |
cUL ENEC CQC |
Product Description

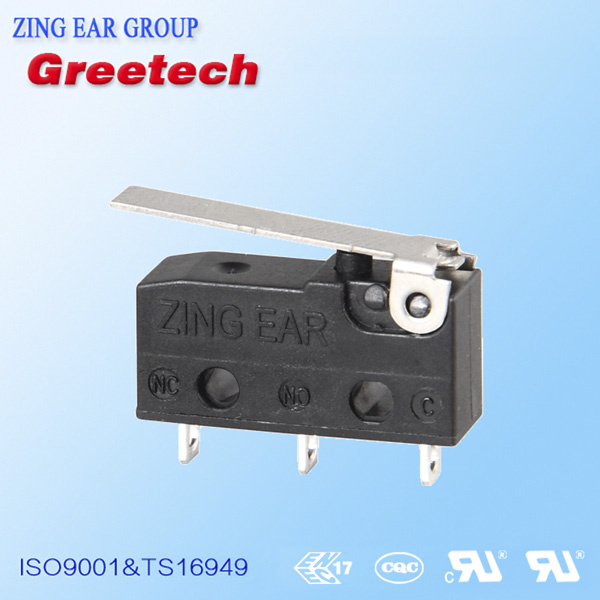

G91 Series Dustproof Mini Micro Switch
Features:
* Small compact size, long life, High Reliability
* Safety Certificate: UL, CUL, ENEC, CQC
* Variety of Levers and Wiring Terminals, can customized designs.
* Operating Force: 100gf, 150gf, 250gf, 300gf
* PTI Grade: 175V, 250V, 600V
* Temperature Grade: 0.1A (-25°C~125°C ), 5A and 10A: -40°C~125°C
* Tight Configuration, Small Contact Gap, Snap Action, High Sensitivity and Small Operating Travel
Application:
* Auto, Air-Conditioner, Computer
* Phone, Fax Machine
* Alarm, Timer
* Mixer & Meat Grinder
* Money Sorter
* Toy Car
Greetech Advantages:
* Greetech is a professional switch manufacturer, subordinate to Taiwan Zingear Group.
* Nearly 35 years Switch Rd & Produce experience
* More than 2,000 models of switch types.
* Annual production capacity: 150 million pieces.
* Can arrange samples for testing and physical approval.
* Automatic assembly lines for entire production.
* Safety Certificate: UL, CUL, ENEC, CQC
* System Management certificates: ISO9001,ISO14001 and TS16949.
* All products can meet RoHs and REACH requirements.
* High quality, compentitive price, fasten leadtime, quickly feedback and good sevice.
* Main products: Micro Switch, Air Pressure Switch, Detector Switch, Key Switch, Door Switch and Encoder.

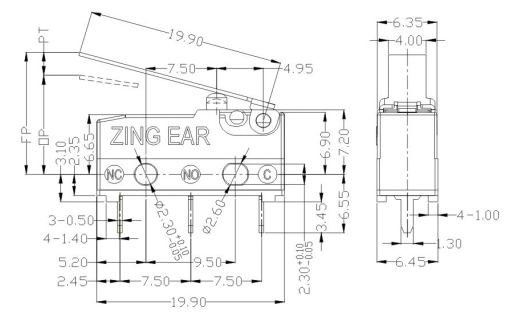

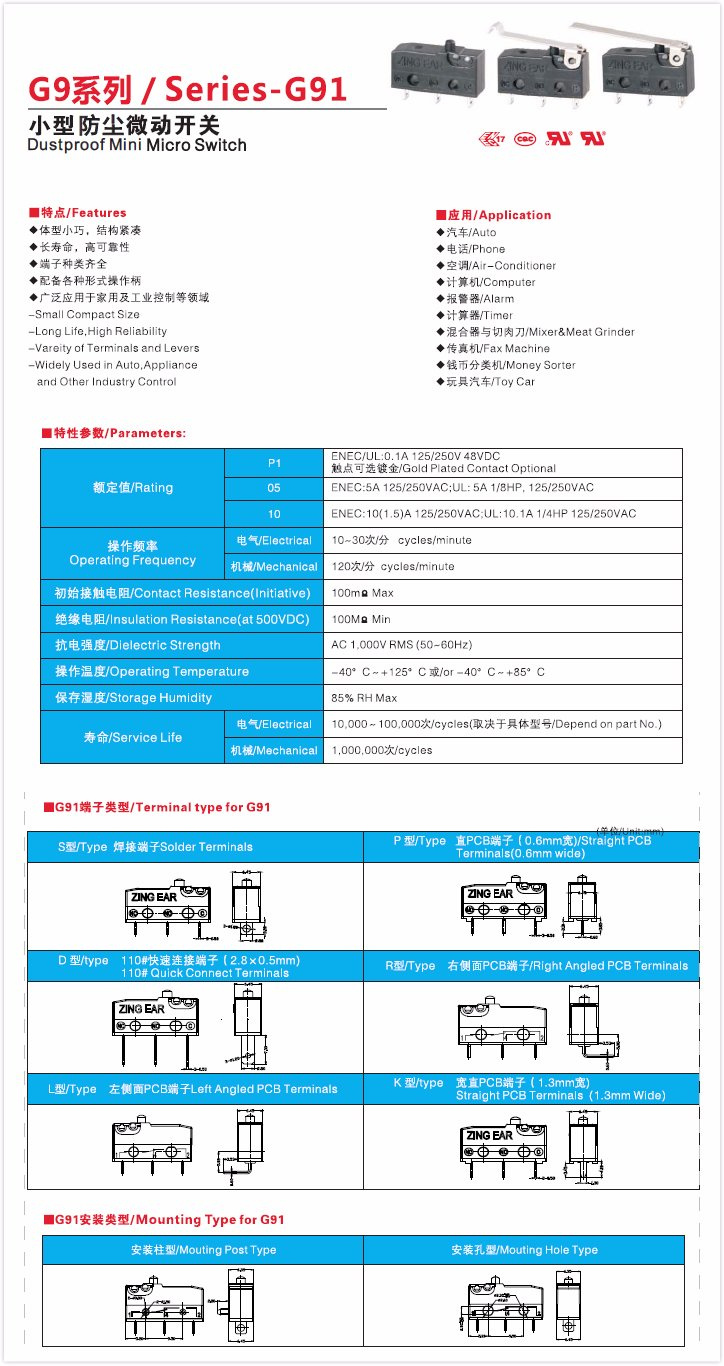

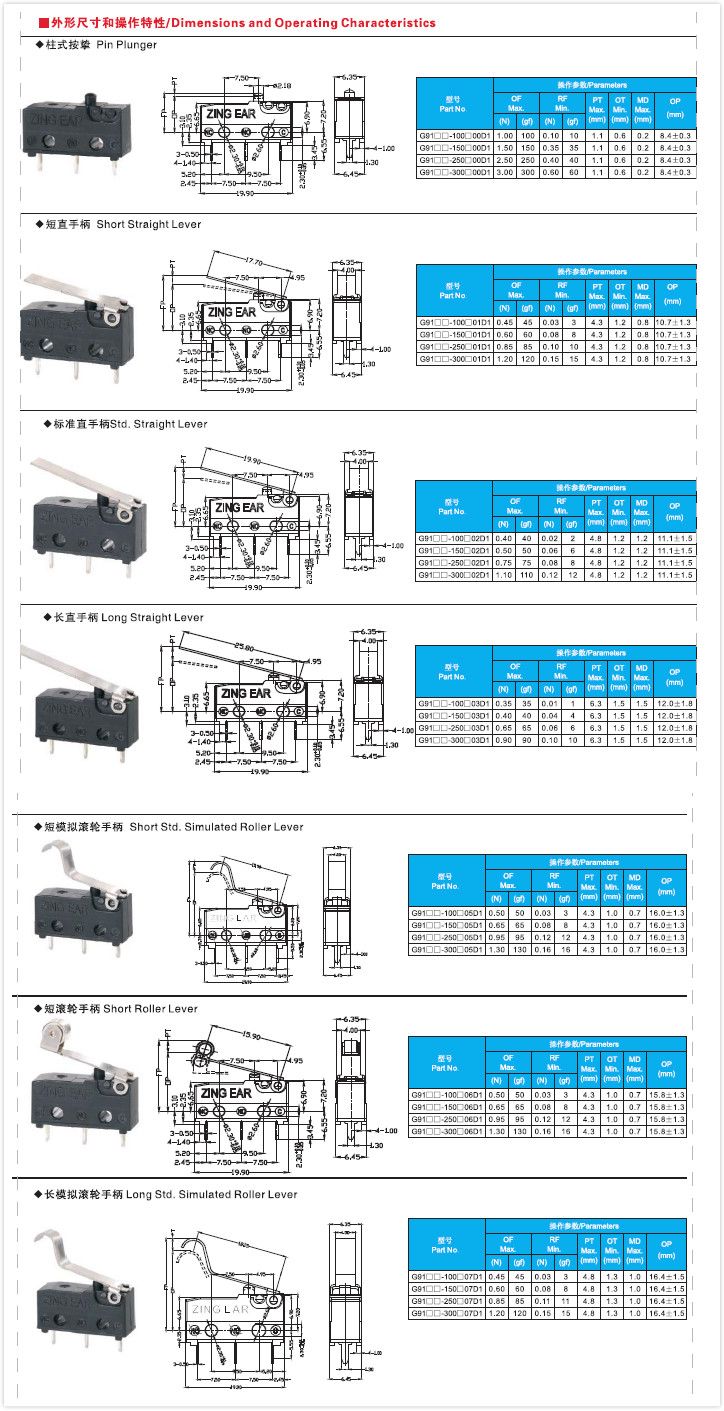

G91 Series Details Specification:

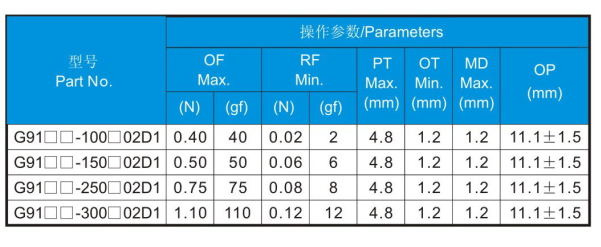

Parameters:
| Rating | P1 | ENEC/UL:0.1A 125/250V 48VDC Gold Plated Contact Optional |
| 05 | ENEC:5A 125/250VAC;UL: 5A 1/8HP, 125/250VAC |
| 10 | ENEC:10(1.5)A 125/250VAC;UL:10.1A 1/4HP 125/250VAC |
|
| Operating Frequency | | 10~30 cycles/minute |
| Mechanical | 120 cycles/minute |
| Contact Resistance (Initiative) | 100m ohm Max |
| Insulation Resistance(at 500VDC) | 100MΩ Min. |
| Dielectric Strength | AC 1,000V RMS (50-60Hz) |
| Operating Temperature | -40°C~+125°C or -40°C~+85°C |
| Storage Humidity | 85%RH Max |
| Service Life | Electrical | 10,000~100,000cycles(Depend on part number) |
| Mechanical | 1,000,000cycles |

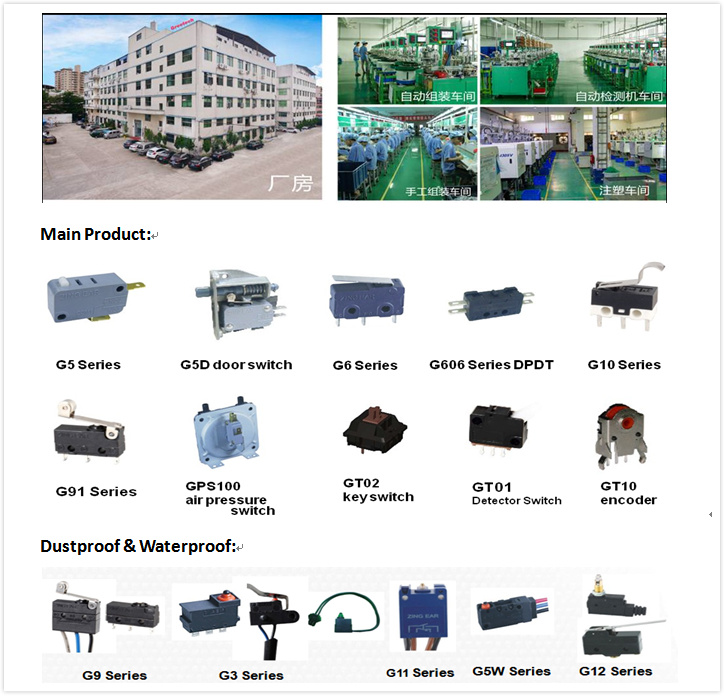

Factory and product line:
* Zing Ear established in 1983, China Factory Greetech established in 2007.
* Factory Area: 10000M²
* Employee: 1000 Persons
* Register Capital: HKD3,500,000
* Revenue: USD30,000,000 ( in 2016 )
* Product Line: 8 manual lines ,100+ automatic producing lines
* Annual Capacity: 150KK PCS
Delivery:
* Sample lead time is about 5~10 days.
* Normal production Lead time is about 2~4 weeks after receiving the PO and payment.
* The samples ship out by TNT, UPS, FEDEX or customes pointed express forwarder.
* PO goods ship out by sea or accoring customers requirement to ship out by air or by express.
Packaging Details:
| NO. | Greetech Product | Inner Box | Shipper Carton | MPQ |
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) |
| (pcs) | (pcs) | (pcs) | (Days) |
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Our Service:
* Free sample and sample order can be arranged.
* Sample testing support, any problem of the samples, please feedback to us, we'll discuss and improve for your asap.
* Inquiry and consulting support, will reply you in 24 hours.
* Welcome to view and audit our Factory.
FAQ:
Q1. Are you a trading company or manufacturer?
A: We are professional Switch manufacturer, over 35 years experience of Switch RD & Produce.
Q2.What is your terms of payment?
A1: Samples PO or Small PO , full advance payment in T/T after receiving our Proforma Invoice.
A2: Normal PO can pay 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A: EXW, FCA Shenzhen, FOB Shenzhen.
Q4. Can you produce according to the samples?
A: Yes, we can according your samples or drawing to produce, we have professinal R&D engineer to support for our customers.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the freight cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: We keep good quality, competitive price and fasten leadtime to ensure our customers benefit.
Q7. What's the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q8. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q9 . Could you accept OEM or ODM ?
A : Yes, we have strong R&D team and rich experience on OEM & ODM.
Q10. What's the warranty time?
A: 1 ~ 2 years.
