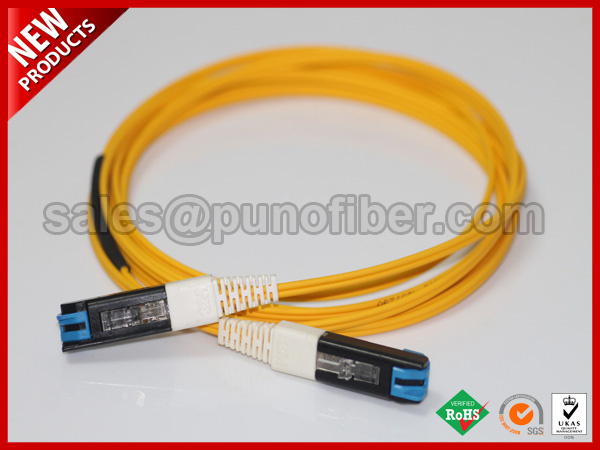

Zipcord Fiber Optical VF45 Singlemode Cable
| Price: |
US $ 30-60/Meter |
| Min Order: |
30/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
872 |
| Color: |
Yellow |
| Fiber Type: |
Singlemode |
| Fiber Count: |
Zipcord, 2 |
| Cable OD: |
3.0mm |
| Cable Material: |
PVC |
| Connector: |
3M VF45 |
| Length: |
10M |
| Insertion Loss: |
0.35dB |
| Ref Loss: |
60dB |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Certification: |
VDE |
| Connection Structure: |
VF45 |
Product Description

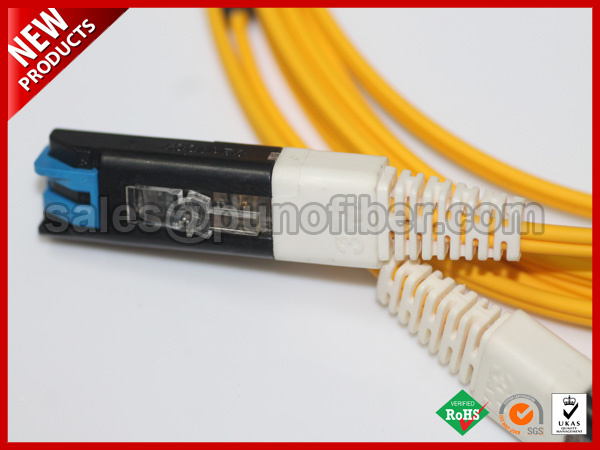

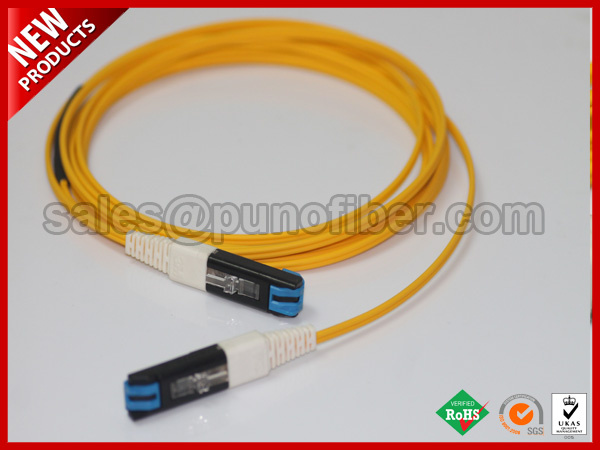

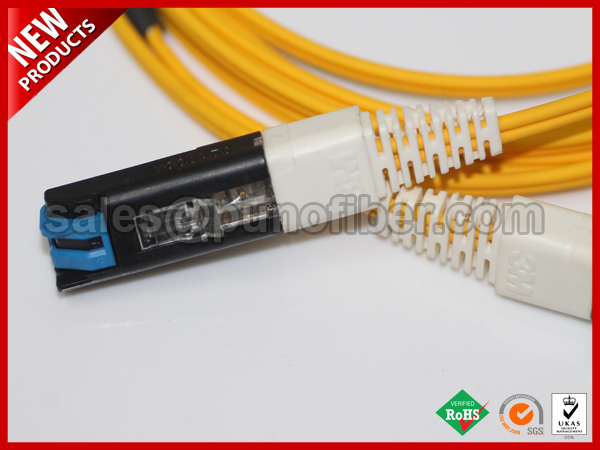

Zipcord Fiber Optical VF45 Singlemode Cable
The Volition VF-45 Socket and Patch Cords from 3M are the latest duplex, fiber optic interconnects for affordable, high bandwidth, fiber-to-the-desk networks. The VF-45 plug and socket work like an 8-pin modular jack, bringing the simplicity of the RJ-45 jack to optical fiber applications. VF-45 sockets can be field terminated in closet patch panels and in work area outlets for premises backbone and horizontal cabling applications. Field termination on duplex multimode and single-mode fiber using the Volition VF-45 Termination Kit takes less than two minutes, two fibers at a time! The mating VF-45 plugs, factory terminated onto patch cords, enables interconnection from socket-to-socket or from socket-to-transceiver devices. VF-45 patch cords are provided in a variety of lengths and are also available in hybrid ST* or SC configurations. All VF-45 patch cords are constructed with the innovative 3M "GGP" high-strength coated optical fiber, providing for durability and tight bend radius in desktop applications.
Features & Application
• Plug-to-socket design (no adapter needed);
• High-density duplex interconnect;
• V-groove alignment with injection-molded parts;
• RJ-45 style latch;
• Socket, snap together assembly;
• Eliminates expensive ferrules, sleeves or precision components;
• Easy to install, lower labor costs;
• Dependable in under-desk applications.
Volition™ VF-45™ Patch Cords

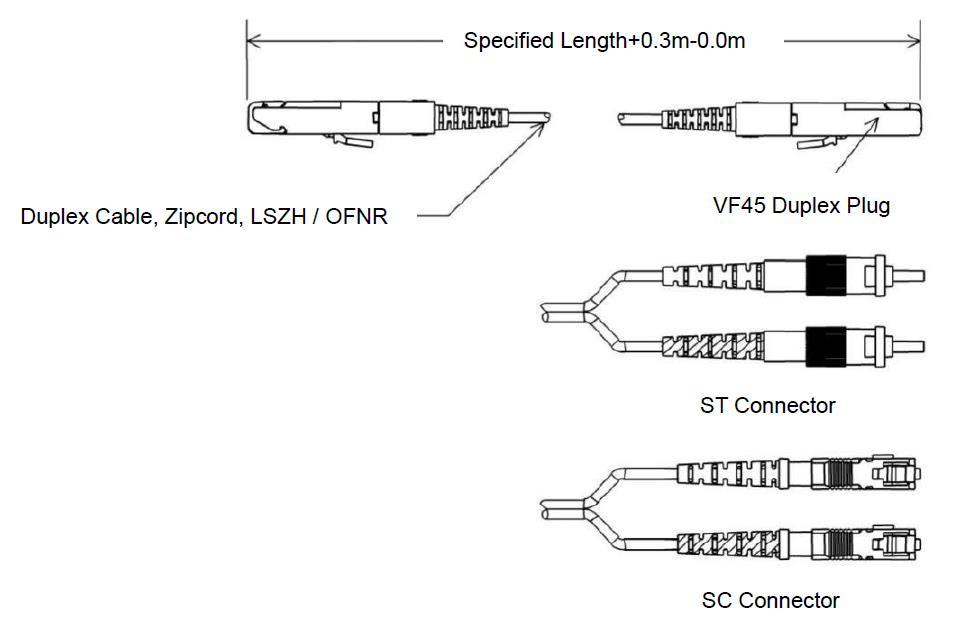

VF-45 Patch Cords are available in the following combinations:
VF-45 to VF-45
VF-45 to ST
VF-45 to SC
Specifications for Volition VF-45 Patch Cords | Material | Specification |
| | Singlemode | Multimode |
| Connector | Engineering Thermoplastic UL-94 VO |
| Boot | Thermoplastic Elastomer |
| Fiber | 9um Single-mode | 50um or 62.5um, Multimode |
Specifications for Volition VF-45 Plug and Sockets | Test | Test Condition / Requirements |
| | Singlemode | Multimode |
| Attenuation | ≤0.75dB | <0.75dB |
| Reflection | ≤-26dB | >20dB |
| Mating Durability | 500 Cycles, <0.75dB Max | |
| Strength of coupling | 33N , ≤0.75dB | |
| Plug cable retention | Tensile load 66N, side pull 19.4N, ≤0.75dB | Tensile load 66N, side pull 6.6N, <0.75dB |
| Plug flex | 100 Cycles, ±90 degrees, 0.5kg, <0.75dB |
| Plug twist | 10 Cycles, ±2.5 revolution, 15N, <0.75dB |
| Cold | -10ºC (14°F) for 96 hours, <0.3dB increase |
| Heat | 60ºC (140°F) for 14 days, <0.3dB increase |
| Humidity | 40ºC, 95% relative humidity for 96 hours, ≤0.4dB |
| Impact | 8 drops @1.8m, <0.75dB |
| Thermal Cycling | -10ºC to 60ºC (14° to 140°F), 5 cycles, 0.3dB increase |
| Vibration | -10 to 55 Hz, 30min. each axis, <0.3dB increase |
Singlemode Loss & Reflection Typical Performance | | Loss (dB) | Reflection (dB) |
| 1.310 | 1.310 |
| Mean | 0.20 | -56.2 |
| Sigmal | 0.18 | 3.4 |
