Zipcord Multimode 50/125 Om3 Indoor Tight-Buffered Interconnect Fiber Optical Cable

Name: Zipcord Multimode 50/125 Om3 Indoor Tight-Buffered Interconnect Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 819952455
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	US $ 0.48/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIR-OM3-D
Od:	2.0/3.0 mm
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	2 Cores
Sheath Material:	PE

Product Description

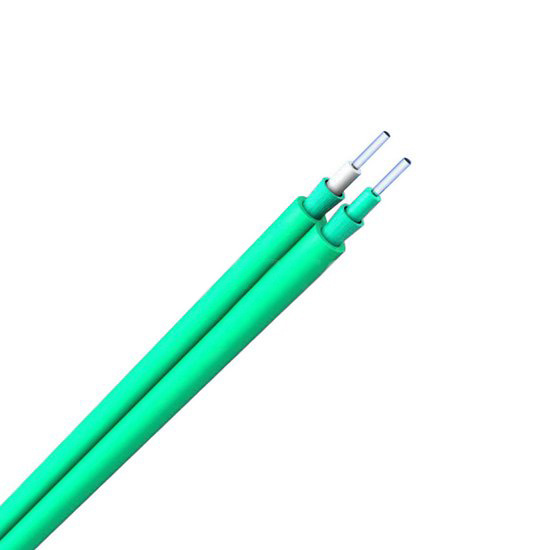

Zipcord MM OM3, Riser, Indoor Tight-Buffered Interconnect Cable, especially for LC/SC/ST/FC Fiber Cable Assembly

Zipcord cables are designed for interconnect applications. Two 900μm buffered fibers are surrounded by aramid yarn strength members and a flame-retardant PVC jacket, especially used in optical connections in optical communication equipment rooms and optical distribution frames, optical apparatus and equipments.

Cable Type	Tight-Buffered 900μm	Fiber Count	2 Fibers
Flammability Rating	Riser (OFNR)	Fiber Type	Multimode 50/125 OM3 (Aqua)
Cable Diameter	1.6/2.0/3.0mm	Weight	15kg/km
Tensile Strength (long/short term)	100/200N	Crush Load (long/short term)	100/500 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-20 to +60 °C

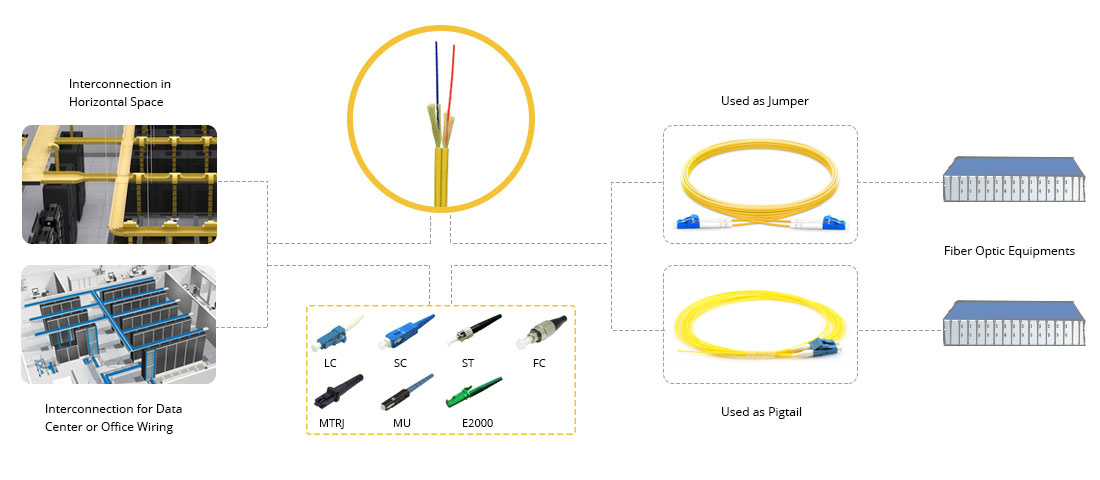

Feature and Application

Easy to strip and terminateFlame-retardant and colored outer jacketKevlar yarn material ensures high tensile strengthFlexible, small diameter, 900µm tight-buffered construction

Used as jumpers or pigtails for data center applicationsInstalled within walls, under raised floors, and in air-return spacesInterconnection in horizontal spaces between fiber optic equipments

Ideal Solution by Using Interconnect Cable

Interconnect cables are designed for indoor network connections. They are suitable for using as jumpers or pigtails in internal point-to-point links.
