Zj100d Contactor 12V 24V 36V Contactor 100A

Name: Zj100d Contactor 12V 24V 36V Contactor 100A
Brand: all-electronics-online.com
SKU: 836065885
Availability: InStock
Rating: 4.7 (131 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZJ100D
Brand Name:	Huanxin
Model Number:	Zj100d
Quality:	Reliable
Warranty:	1 Year
Place Of Origin:	Anhui
Port:	Shanghai
Voltage:	12V 24V 36V 48V 72V
Current:	100A
Color:	Black

Product Description

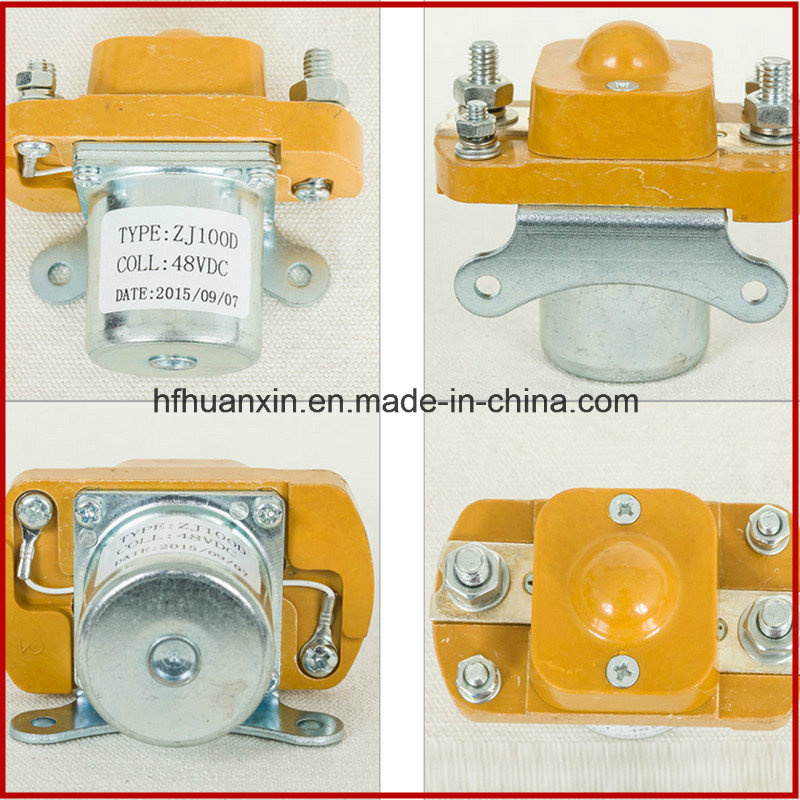

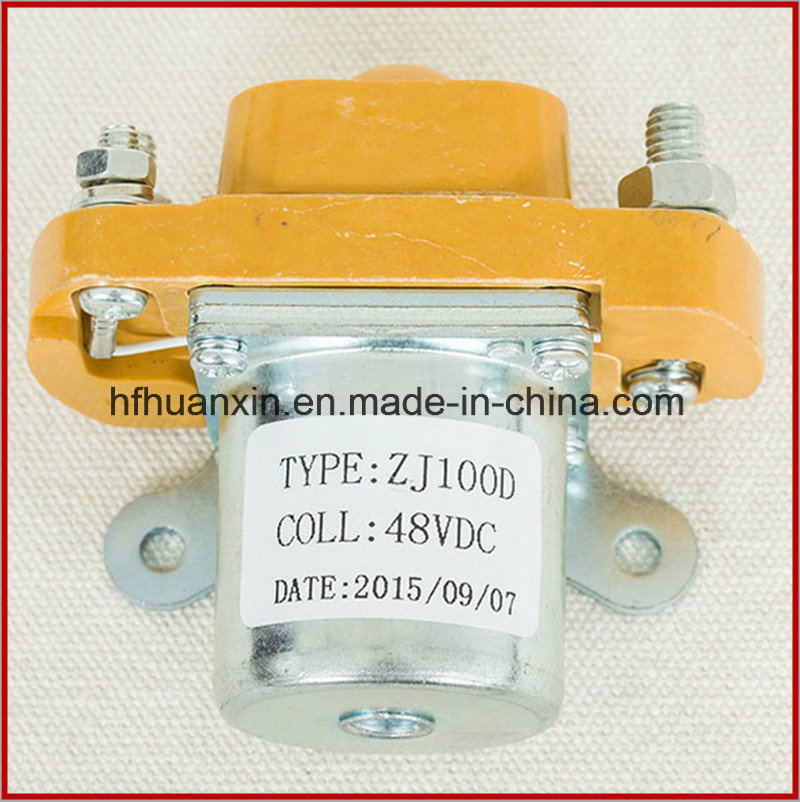

ZJ100D Contactor 100A Contactor 12V 36V

Product Description:

Overview

ZJ100D is a SPST (Single Pole Single Throw; normally open type) DC contactor of unicoil winding. Designed for direct current loads, particularly for motors on small electric vehicles (light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc.), ZJ100D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Main rated load current of contact circuit (amps): 100A
Dielectric (volt) strength: 50Hz 1000V AC 1min
Current volt drop of main contact at 100A: Not above 80mV
Dimensions (LxWxH ): 54x42.5x64 mm
Mounting: two 4.5mm fixing holes in bracket; pitch-row: 47mm
Continual working duration: 8h
Mechanical life: 100,000 times
Electric life: 2,000,000 times

Specifications:

Model: ZJ100D
Voltage Options (Volts): 12V, 24V, 36V, 48V or 72V.
Ambient temperature:-25~+40ºC
Altitude range:0~2000m
Max.relative humidity: 90% at 25ºC
Installation method:vetically or horizontally
Voltage fluctuating:0.7~1.1Ue

Our Service

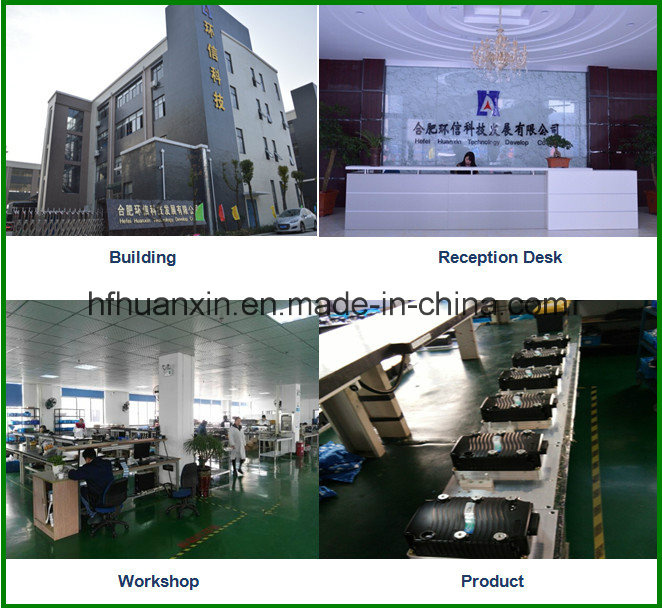

Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.

Packing & Delivery

Package:Normally we use the standard exporting packaging. We also can according to clients' request .

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

Related Products

Contact us:

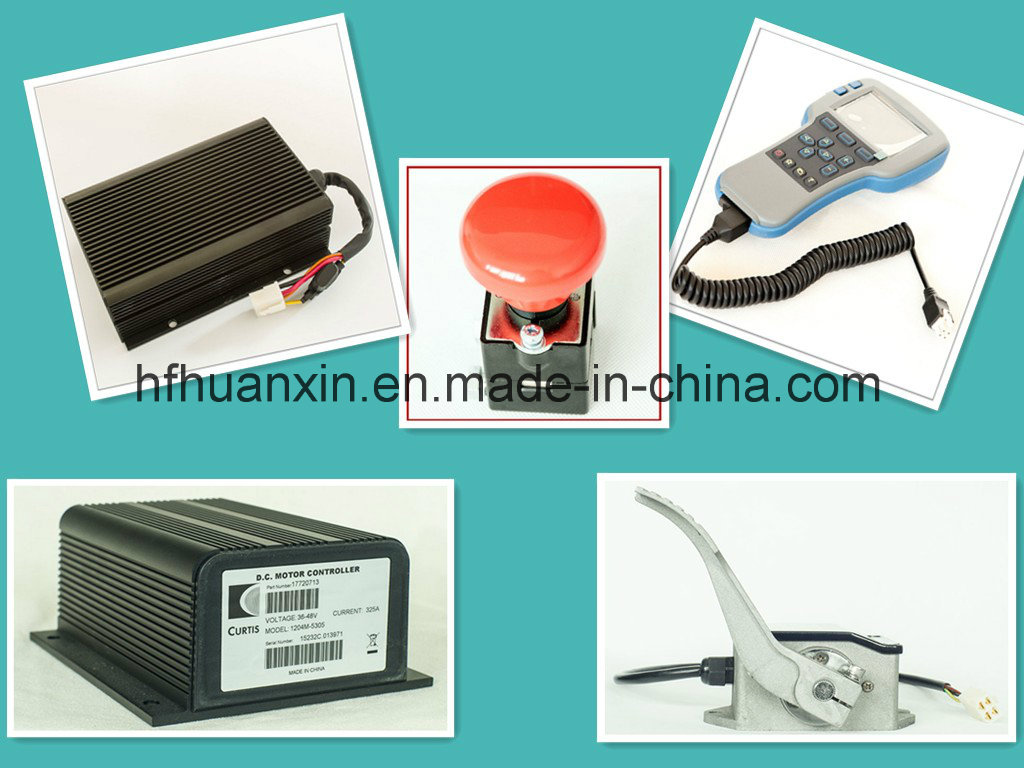

Hefei Huanxin Technology Development Co., Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets.

Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.

Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
