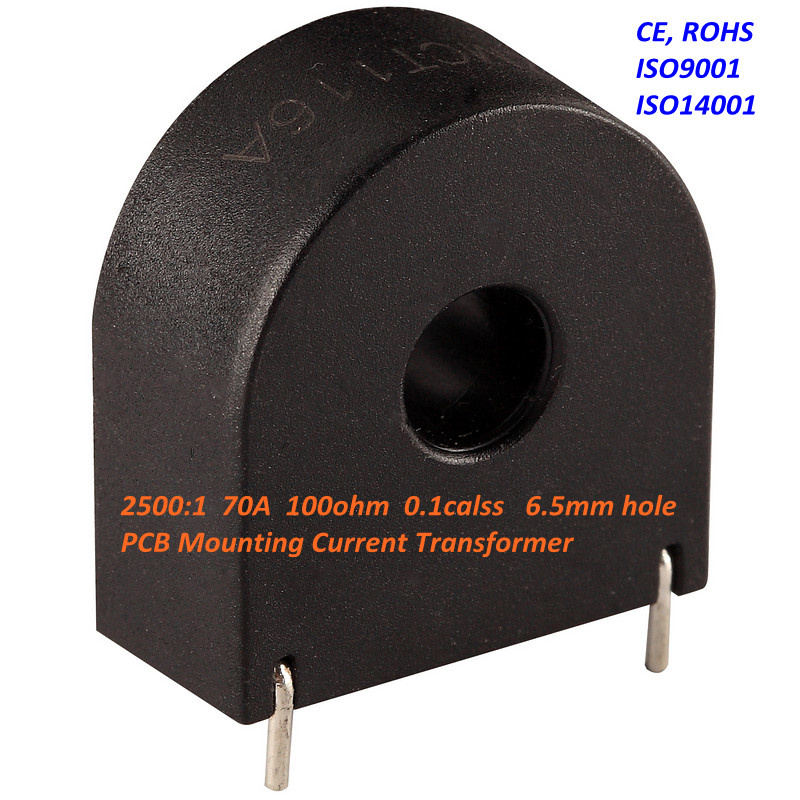

ZMCT116A Current Transformer
Features and applications: Small size,high accuracy,good consistency,for current and power measurement Key words: current transformer
Structural parameters:

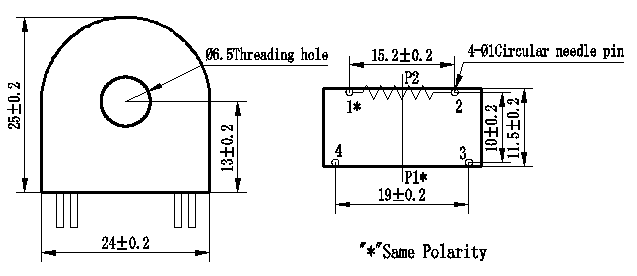

Remarks: Primary input: straight- through type( make the measured circuit be through the hole) Secndary output:1,2pin empty pins: 3,4pin Front view Bottom view The main technical parameters:| Model | ZMCT116A |
| Input current | 0~70A (sampling resistor 100Ω) |
| Rated output current | 2mA at input 5A |
| turns ratio | 2500:1 |
| phase angle error | ≤20'(input 1A,sampling resistor 100Ω) |
| current range | 0~70A(sampling resistor 100Ω) |
| linearity | 0.1%(5%dot~120%dot) |
| Permissible error | -0.2%≤f≤+0.2%(input 1A,sampling resistor 100Ω) |
| isolation voltage | 4500V |
| application | current and power measurement |
| Encapsulation | Epoxy |
| installation | PCB mounting(Pin Length>3mm) |
| operating temperature | -40ºC~+85ºC |
Direction for use:

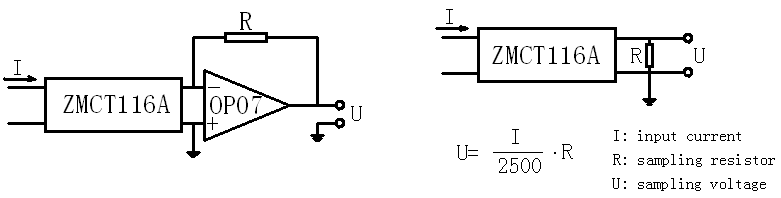

Figure I FigureII1. ZMCT116A used for measurement. Typical usage is shown in Figure 1 and Figure 2. R is a sampling resistor.2. Empty pin can not be grounded.
