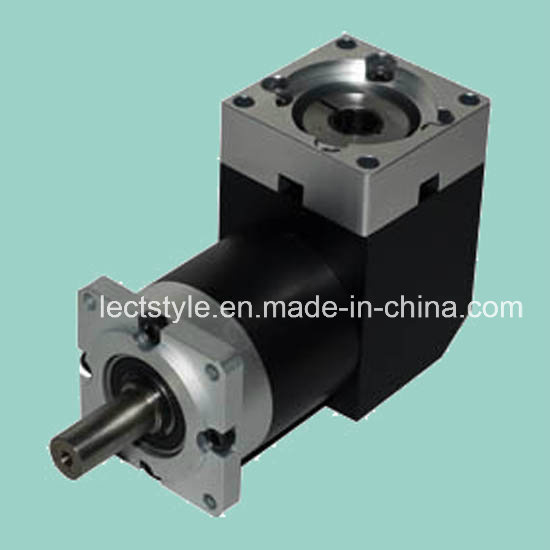

Zplf120 Planetary Gearbox and DC Motor
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
ZPLF120 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
Reduction Ratio: |
3, 4, ..700 |
Number Of Stage: |
1, 2, 3 |
Body Length: |
84, 116, 148 Mm |
Structure And Working Principle: |
Brushless |
Operating Speed: |
High Speed |
Application: |
Industrial |
Excitation Mode: |
Compound |
Brand: |
Lectstyle |
Product Description
We are a professional fabrication, design and trade company, our business products are included Precision Planetary Reducer, BLDC Motors, DC Motors, Gears, Roller Chains, Sprockets, Commutator etc, HANGZHOU LECTSTYLE TRADE CO., LTD is approved to import and export goods as a professional international sales department for serving the whole company, our factory is only responsible for production and Chinese domestic market.
For example, our planetary reducer is introduced to you as below:
Our advantage:
(1)Manufacturer and trade company
(2)Professional Engineering Capability
(3)Stable Quality
(4)Reasonable Price
(5)Small Orders Accepted
(6)Continuous Improvements
(7)High Product Performance
(8)Prompt Delivery
(9)Professional Service
Available options +
(1)Output type: Keywayed output shaft
(2)Input type: Motor mounted version
(3)Design: Long time and lifetime lubrication
Applications +
(1)Gantries
(2)Injection-molding machines
(3)Pick-and-place automation
(4)Linear slides
(5)Packaging machines
(6)Conveyors
Welcome to contact us about the above product if you are interested in, please send its outside structure drawing to us, marks its reduction ratio, speed, output torque, connecting type and diameter of shaft, material of body and gear etc, and then we will give you the accurate offer.
1 Precision Gearbox, Reducers

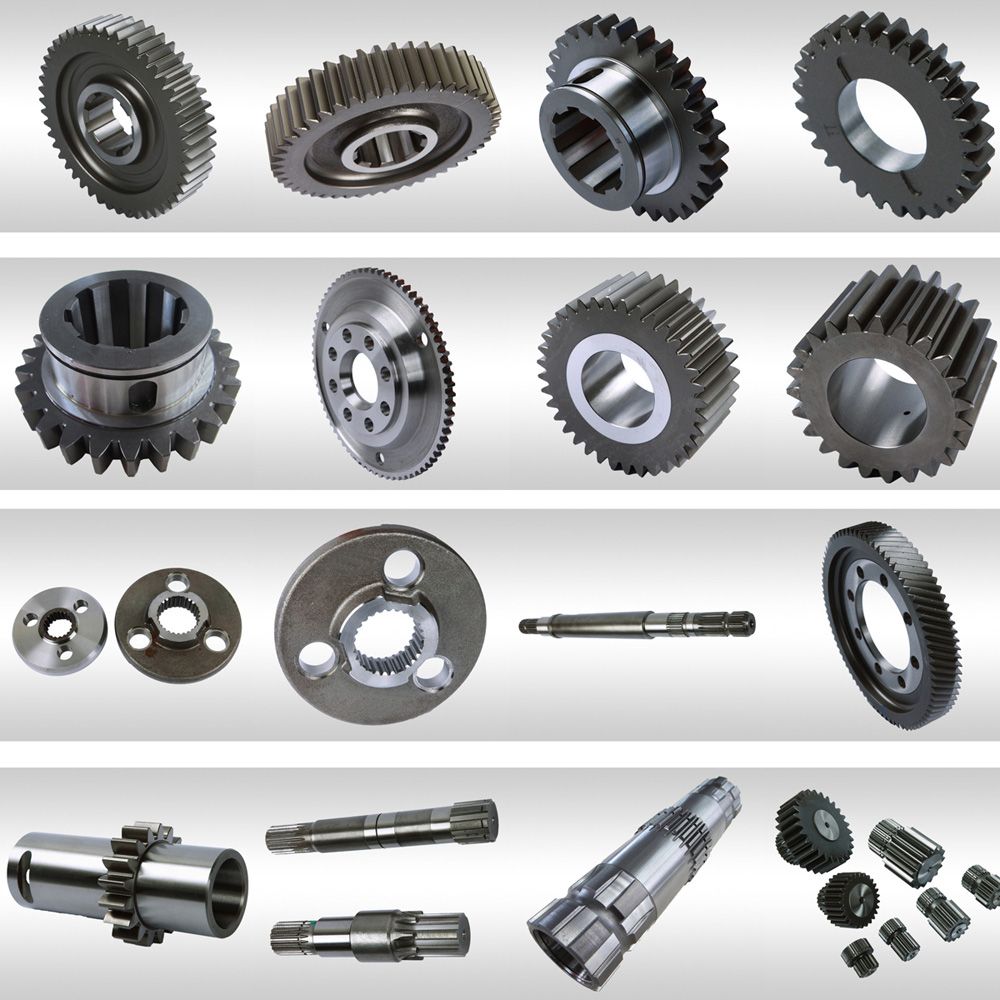

2 Precision Planetary Gears and Transmission Gears

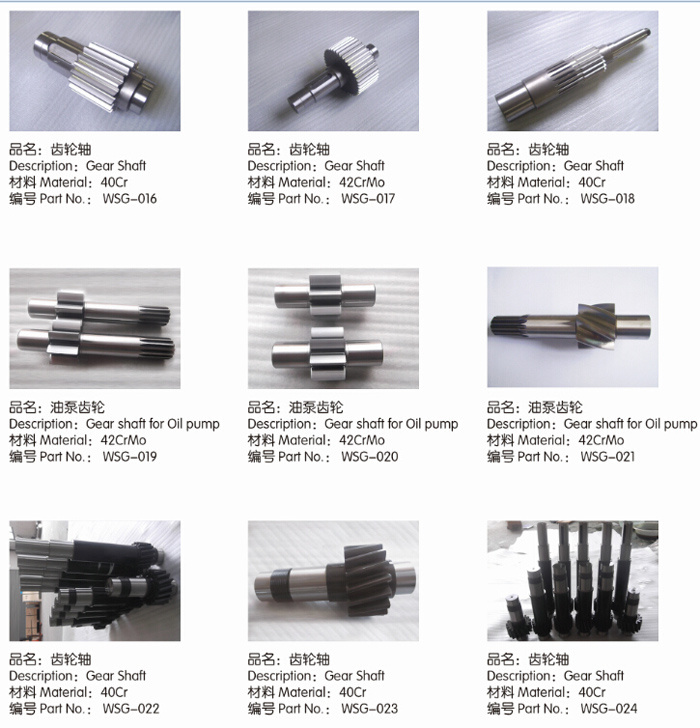

3 Gear Shafts

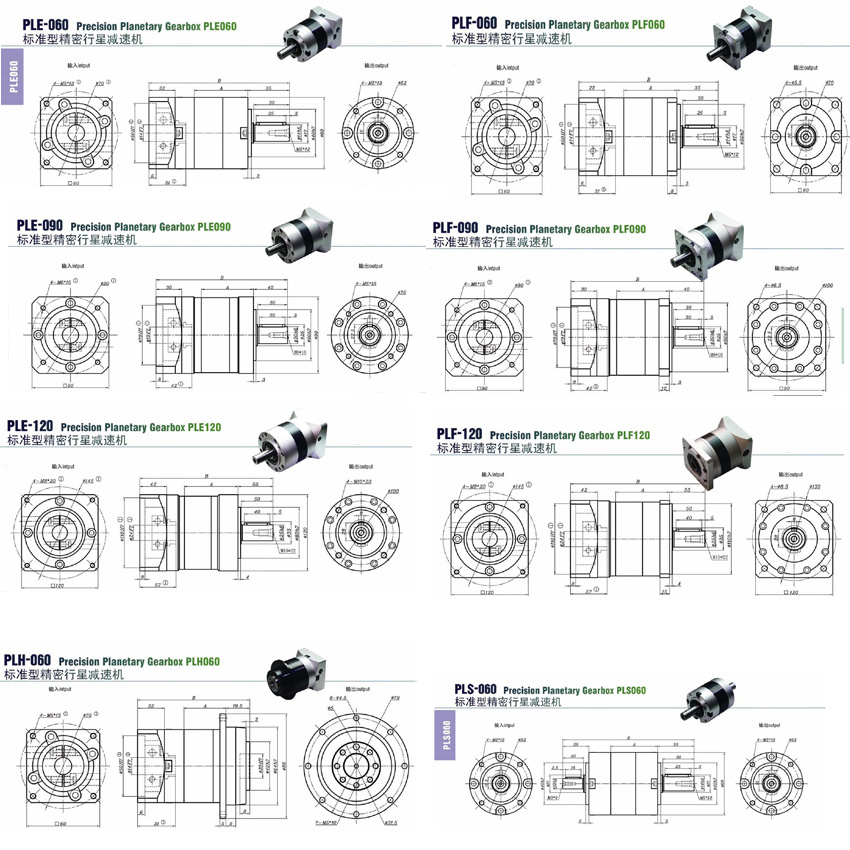

Technical Data of ZPLF-120 |
number of stage | 1-stage | 2-stage | 3-stage |
reduction ratio i | 3 ,4, 5, 7, 10 | 12, 16, 20, 25, 28, 35, 40, 50, 70, 100 | 80, 100, 125, 140, 175, 200, 250, 350, 400, 500, 700, 1000 |
body length A(mm) | 84 | 116 | 148 |
overall length B(mm) | 270 | 302 | 334 |
nominal input speed(rpm) | 3000 | 3000 | 3000 |
max input speed(rpm) | 4800 | 4800 | 4800 |
max radial torque(N) | 2230 | 2840 | 3020 |
max axial torque(N) | 1550 | 2100 | 2600 |
driving moment torque(N.m) | 1.3 | 0.6 | 0.6 |
full load efficiency(%) | 96 | 93 | 90 |
backlash | precision | <4 | <6 | <8 |
standard | <10 | <13 | <16 |
running noise(dB) | ≤65 | ≤65 | ≤65 |
weight(Kg) | 11.7 | 13.7 | 16 |
lifetime(h) | >20,000 |
torsional stiffness(N.m/arcmin) | 15 |
lubrication type | lifetime lubrication |
degree of protection IP | IP65 |
mounting type | any |
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
