Zte Zxd3000 48V 3000W Rectifier Module

Prod Model:	ZXD3000
Output Voltage:	53.5VDC
Output Voltage Range:	42 to 59.5 V DC
Output Current:	63.5A
Output Power1:	3000W
Output Type:	Single
Warranty:	1 Year
Output Power:	>500W
Input Voltage:	220V
Starting Mode:	Separate-excited Switching Power Supply
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC
Connection Mode:	Plug Into System
Voltage Regulating Mode:	Switch Power Supply
Brand:	Emerson

Product Description

ZTE ZXD3000 48V 3000W rectifier module

Brand: ZTE
Model Name: ZXD3000
Output DC: 48Vdc 63.5A

ZTE ZXD3000 Description:

The ZXD3000 (V5.0) rectifier automatically adjusts its operational status according to the AC input voltage.
The input features include the under-voltage protection, over-voltage protection, and power limit.

48V 3000W rectifier input and output Features:

1) Under-Voltage Protection

When the AC input voltage is lower than the under-voltage threshold, the rectifier automatically shuts down and provides no output. Meanwhile, the alarm indicator is on. After the AC input voltage reaches the under-voltage recovery threshold, the rectifier automatically recovers.

The under-voltage recovery threshold = the AC input under-voltage threshold + the return difference.
The AC input under-voltage threshold is (85 ± 5) V and the return difference ranges from 8 V to 12 V.

2) Over-Voltage Protection
When the AC input voltage is higher than the over-voltage threshold, the rectifier automatically shuts down and provides no output. Meanwhile, the alarm indicator is on. After the AC input voltage falls to the over-voltage recovery threshold, the rectifier automatically recovers.

The over-voltage recovery threshold = the AC input over-voltage threshold - the return difference.
The AC input over-voltage threshold is (295 ± 5) V and the return difference ranges from 5 V to 10 V.es
Wide temperature operating range (-40°C / -40 °F to +75°C / 167°F) -meets the harshest climatic

3) Power Limit
The rectifier limits its output power according to the input voltage.

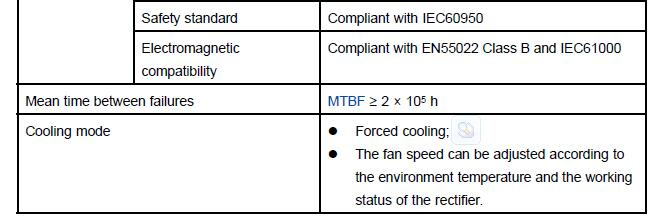

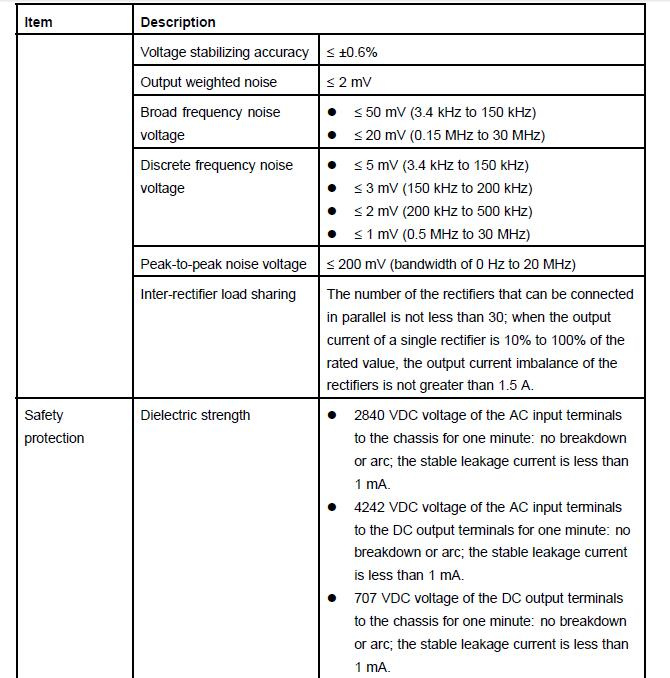

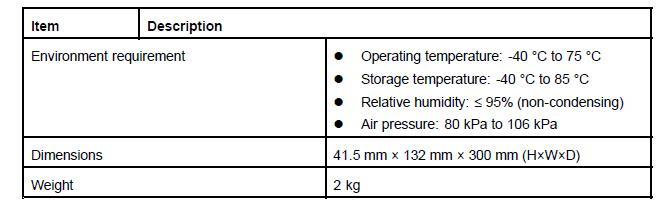

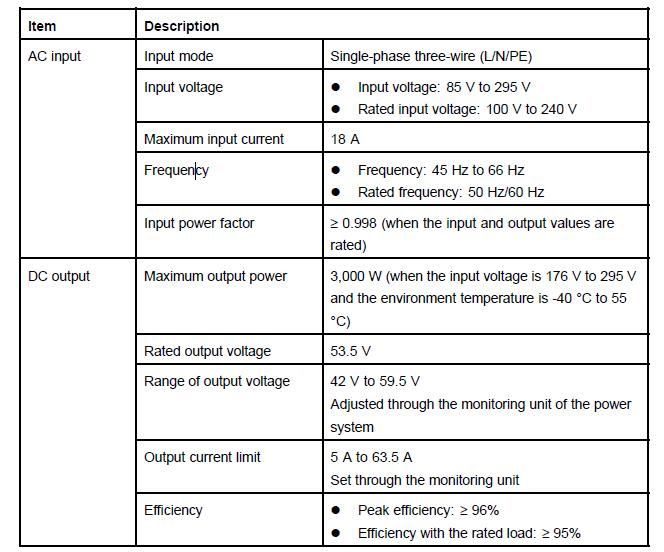

48V ZXD3000 rectifier module Specification:







ZXD3000 Weight: 2kg
Dimensions: 41.5 x 132 x 300mm

ZXD3000

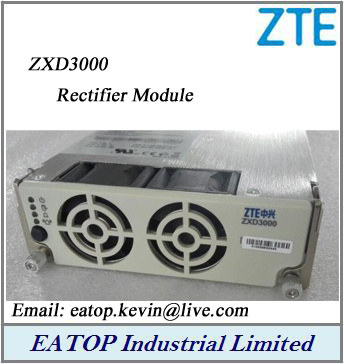

ZTE ZXD3000 48V 3000W rectifier module
