Zw Hv Middle Voltage Power Outdoor 24kv Switch
| Price: |
US $ 1050-1100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZW32-24 |
| Material: |
Ceramics / Stainless Steel |
| Rated Current: |
630A |
| Rated Voltage: |
24V |
| Customized: |
Available |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly
Description:

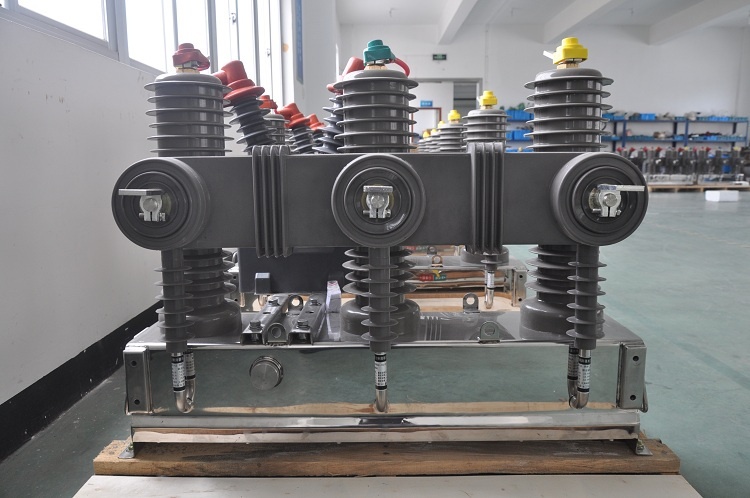

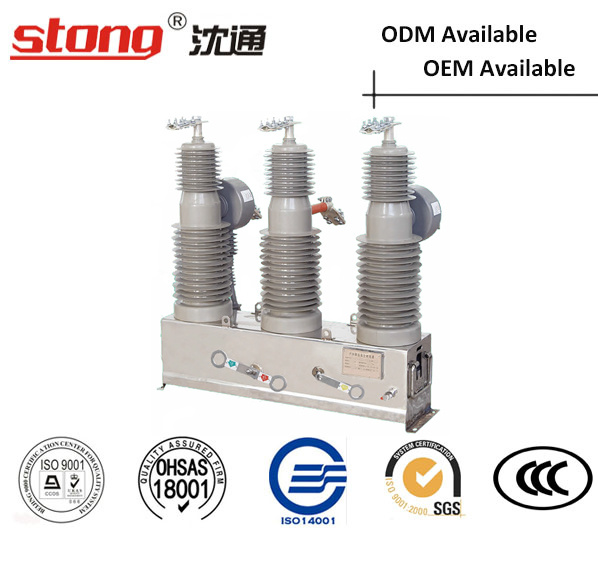

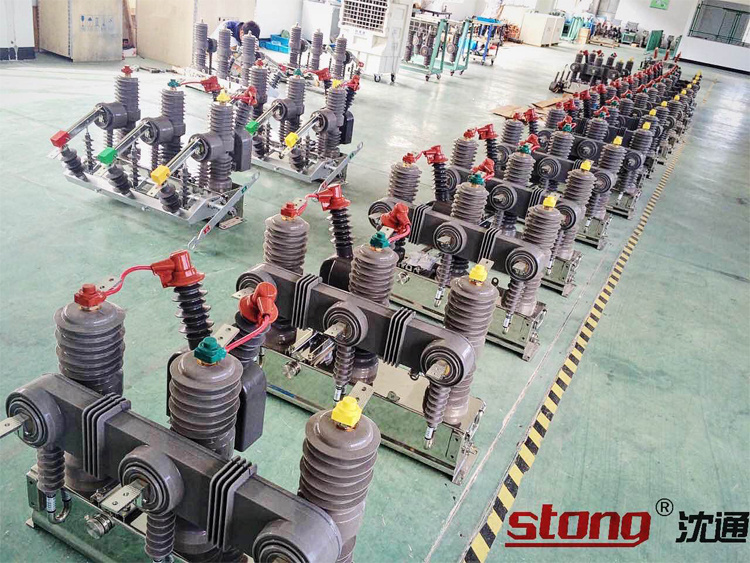

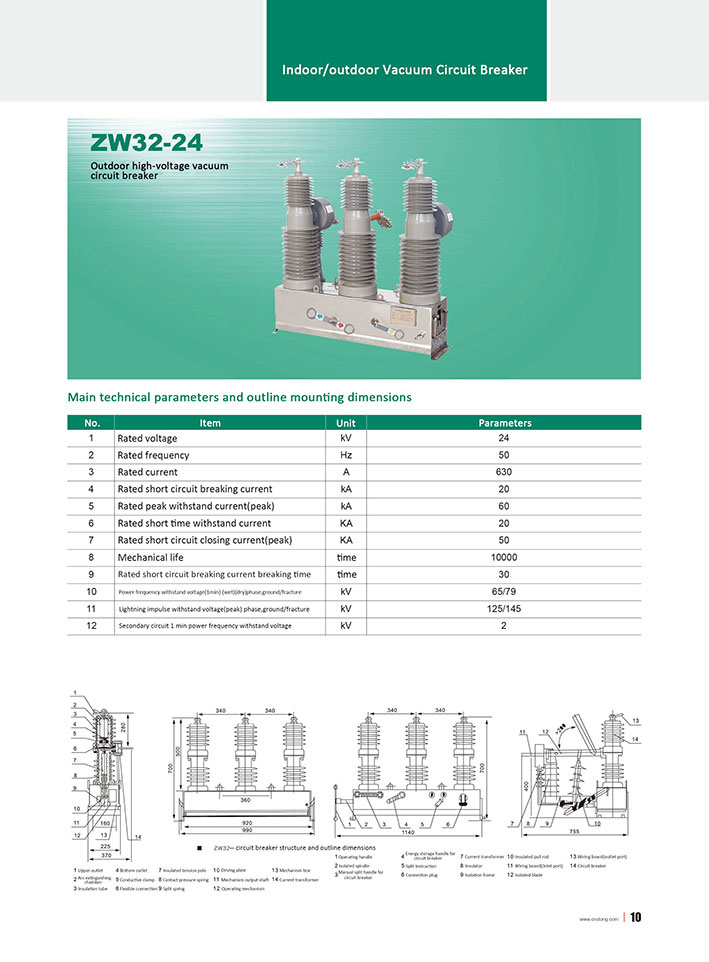

ZW32-24 series outdoor high-voltage vacuum circuit breaker is a kind of three-phase outdoor high-voltage switchgear of rated voltage 12kV and AC 50Hz.
Its population structure is three-phase together box type. Three-phase vacuum arc-extinguish chamber palaces in a metal cabinet, using the SMC insulating material to insulate inter-phase and phase to earth, which is reliable in performance and high in insulating intensity.
Technique Parameters Of Circuit Breaker
| No. | Description | Unit | Data |
| 1 | Rated voltage | kV | 12 |
| 2 | Rated insulation levels | Rated power frequency withstand voltage/1min
( phase to phase, phase to earth, open contacts) |
kV | 42 |
Rated lighting impulse withstand voltage
(phase to phase, phase to earth, open contacts) | 75 |
| 3 | Rated frequency | Hz | 50 |
| 4 | Rated current |
A | 630 | 630 | 1250 | 1600 |
| 1250 | 1250 | 1600 | 2000 |
| | | 2000 | 2500 |
| | | 2500 | 3150 |
| | | | 4000 |
| 5 | Rated short circuit breaking current | kA | 20 | 25 | 31.5 | 40 |
| 6 | Rated short time withstand current(4s) | kA | 20 | 25 | 31.5 | 40 |
| 7 | Rated short circuit making current | kA | 50 | 63 | 80 | 100 |
| 8 | Rated peak value of withstand current | kA | 50 | 63 | 80 | 100 |
| 9 | Rated operating sequence | | O-0.3s-CO-180s-CO
O-180s-CO-180s-CO |
| 10 | Rated short circuit breaking current breaking times | times | 30/20(40kA) |
| 11 | Rated cable charge breaking current | A | 25 |
| 12 | Rated single capacitor bank breaking current | A | 630/400(40kA) |
| 13 | Rated back to back capacitor bank breaking current | | 400 |
| 14 | Mechanical life | times | 10000 |
| 16 | Allowed abrade cumulative thickness of moving and static contactor | mm | 3 |
| 17 | Clearance between open contacts | mm | 11±1 |
| 18 | Contact stroke | mm | 3.5±0.5 |
| 19 | Bounce duration of contact closing | ms | ≤2 |
| 20 | Non-simultaneity of three phase for opening and closing | ms | ≤2 |
Applying ambient conditions
1.Ambient temperature:-10ºC~+40ºC.
2.The height above sea level:≤1000m(besides the special requirements).
3.Relative humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.
4.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa;the average pressure of a month should be no more than 1.8kPa.
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth,chemical erosion and violent vibration.
Our main products including:
1.10-40.5KV Outdoor/Indoor Vacuum circuit breaker (zw8,zw10,zw20,zw28,zw32.zw-43 VS1-12,VF2-12,FZRN12-12D+FZRN25-12D,FZW28-12F,.ZN85-40.5)
2.Feeder Terminal Units, FDR series, CMC series, CPT series, can adapt with spring actuated circuit breaker, permanent magnet circuit breaker, general VCBs etc.
3.DTU-For ring main unit, switch stations etc.
4.Enclosures-stainless steel enclosures in various shapes, size
5.PCB and PCBA
Our products is widely used in China, Africa, American and Europe. You are choose our standard product, or help you to design and manufacture tailored products. Choose Powint, choose high quality and service. We can not provide you with the lowest price, but we provide you the highest quality, the most perfect quality assurance, the most perfect service, after-sales we will do for you !
