ZW Series Three-Phase Integrated Power Meter

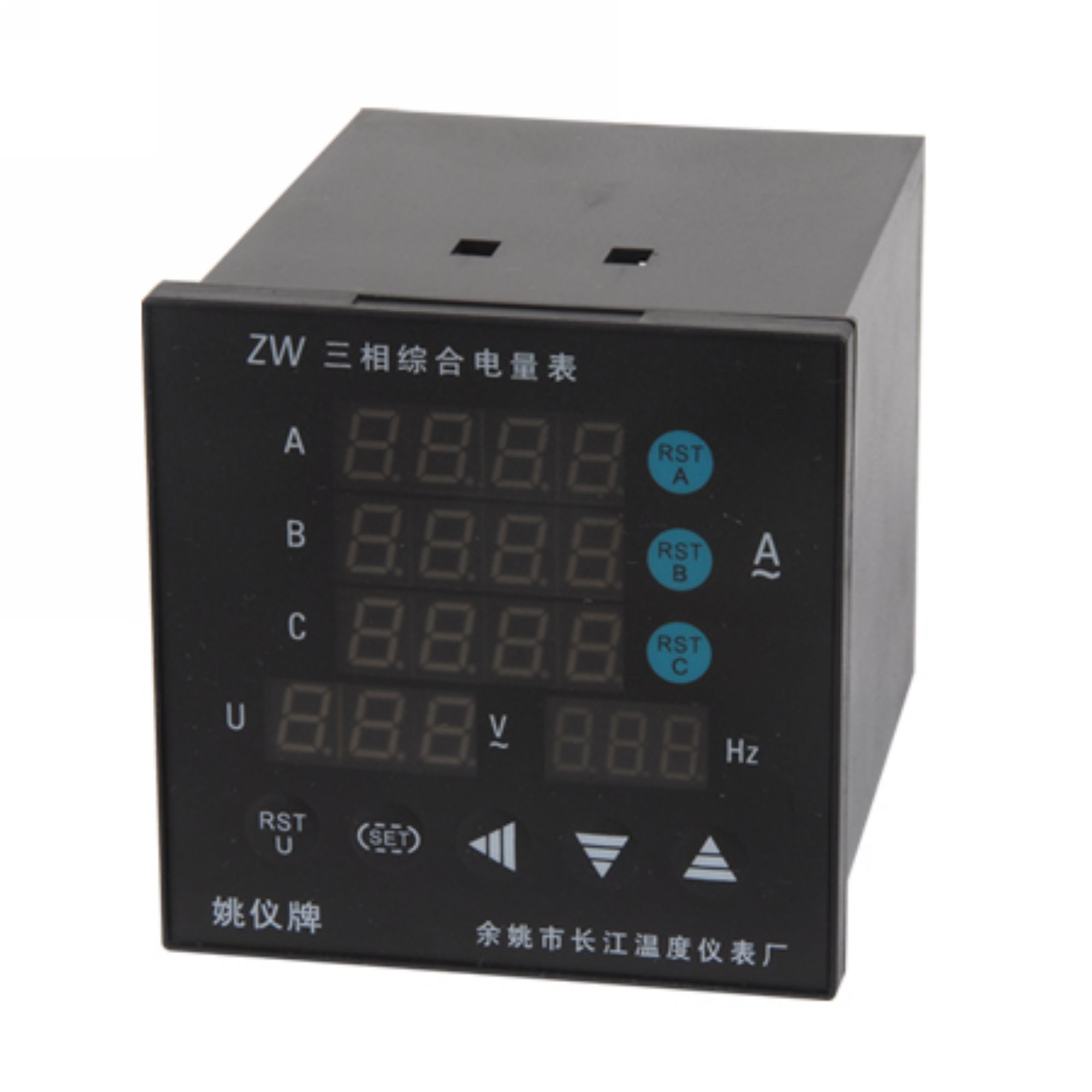

Name: ZW Series Three-Phase Integrated Power Meter
Brand: all-electronics-online.com
SKU: 681867135
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 32.8/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	96*96

Product Description

1. Signal input method: Floating input;

2. Range:
Current: Directness input 0~5A, and you can be suitable match with any current mutual inductance, display range 0~9999; Voltage: AC 0~500V Frequency: 0~99.9Hz;

3. Basic error: Current(A): ± 0.5%F@S Voltage(V): ± 0.5%F@S Frequency(Hz): ± 0.1 F@S

4. Sampling period: About 1 times/second;

5. The whole power consumption: < 4VA;

6. Input impedance: Voltage terminal about 600kΩ; Current terminal < 10mΩ

7. The whole weight: About 430g;

8. External dimensions and Installation hole(mm): 96(length)*96(width)*110(depth) 92*92

9. Working power: AC110~242V, 50/60Hz

10. Working environment: Temperature: (0~50); Humidity: ≤ 85%RH;

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
