Zw20 12kv Outdoor Gas Insulated Vcb High Voltage Switch

Name: Zw20 12kv Outdoor Gas Insulated Vcb High Voltage Switch
Brand: all-electronics-online.com
SKU: 824894455
Availability: InStock
Rating: 5 (65 reviews)

Price:	US $ 1050-1100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW20-12
Material:	Ceramics / Stainless Steel
Rated Current:	630A
Rated Voltage:	12V
Customized:	Available
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Energy-storage Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	SF6
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

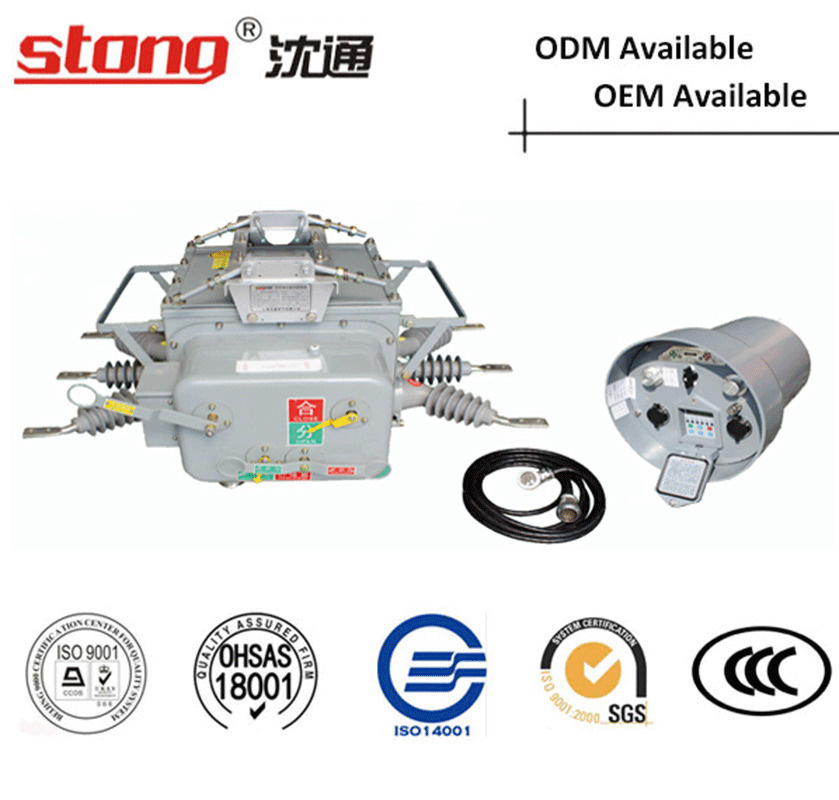

ZW20-12 Outdoor Column Intelligent Vacuum Circuit Breaker
Product Description:
ZW20-12 outdoor column intelligent vacuum circuit breaker is an outdoor distribution equipment with 12kV for the highest rated voltage and 50Hz three-phase AC. The utility model is mainly used for load current, overload current and short circuit current in the open and close power system of the distribution network.
Application:
It is applicable to substations and industrial and mining enterprises in the distribution system for protection and control, more suitable for rural power grid and frequent operation and particularly applicable in the city network and rural power grids.

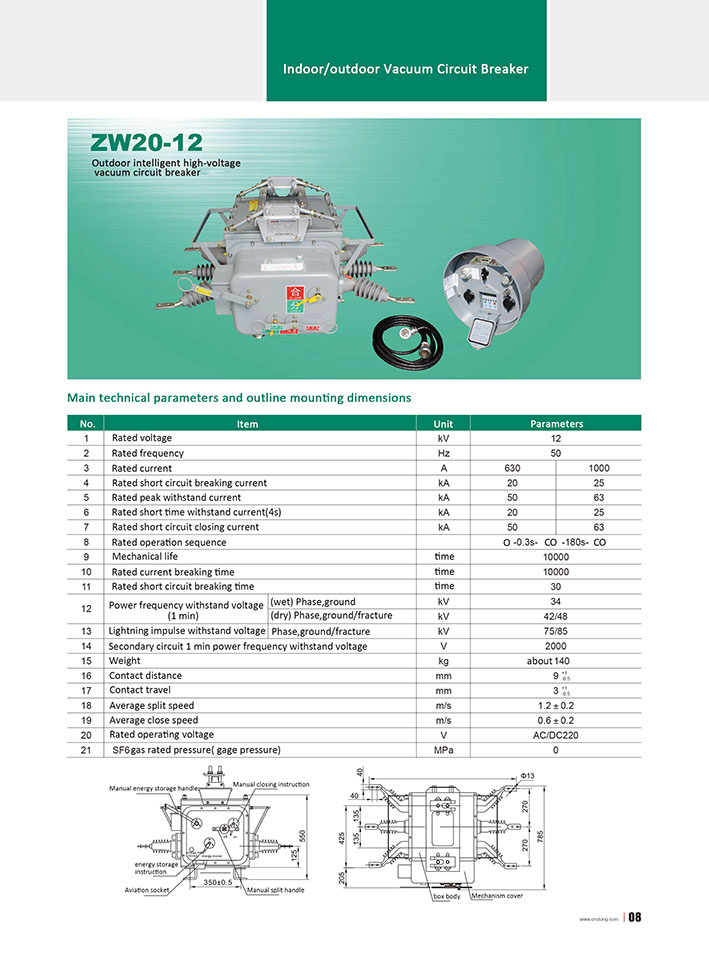

Technique Parameters Of Circuit Breaker

NO.	Item	Unit	Value
01	Rated voltage	kV	12
02	Rated frequency	Hz	50
03	Rated current	A	630
04	Rated short-circuit breaking current	kA	20
05	Withstand current of rated peak current	kA	50
06	Rated short time withstand current(4s)	kA	20
07	Rated short open/close current(peak)	kA	50
08	Mechanial life	times	10000
09	Open/close times of rated current	times	10000
10	Open/close times of rated short-circuit breaking current	times	30
11	Power frequency withstandvoltage(1min):between phases,ground/fracture	kV	42/49
12	lightning impulse withstand voltage(peak)between phases,ground/fracture	kV	75/85
13	2nd circuit 1min power frequency withstand voltage	kV	2
14	Net weight	kg	140

Voltage	12KV
Phase	Three-pahse
Current	AC
Altitude	≤2000m
Ambienttemperature	-35ºC-+40ºC
Seismic Capacity	8 degree

PLS FOLLOW MY LINKEDIN

Joimmy Chow / Guanchu Tao

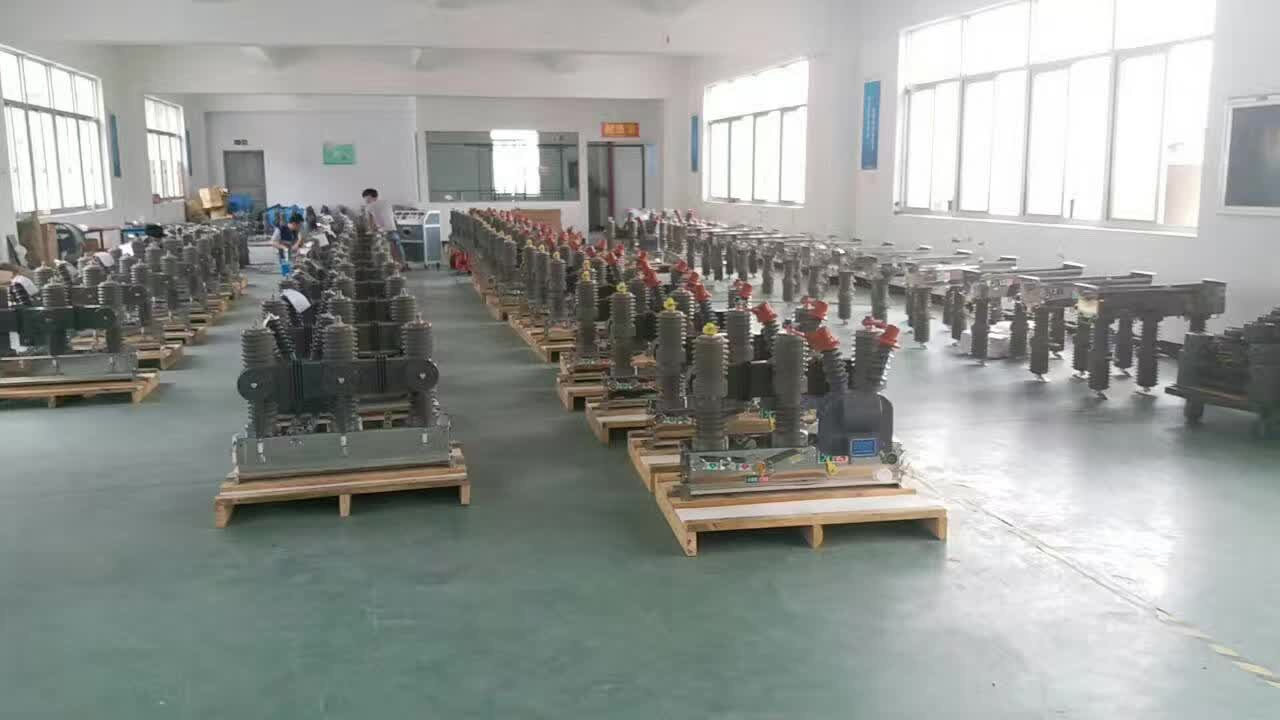

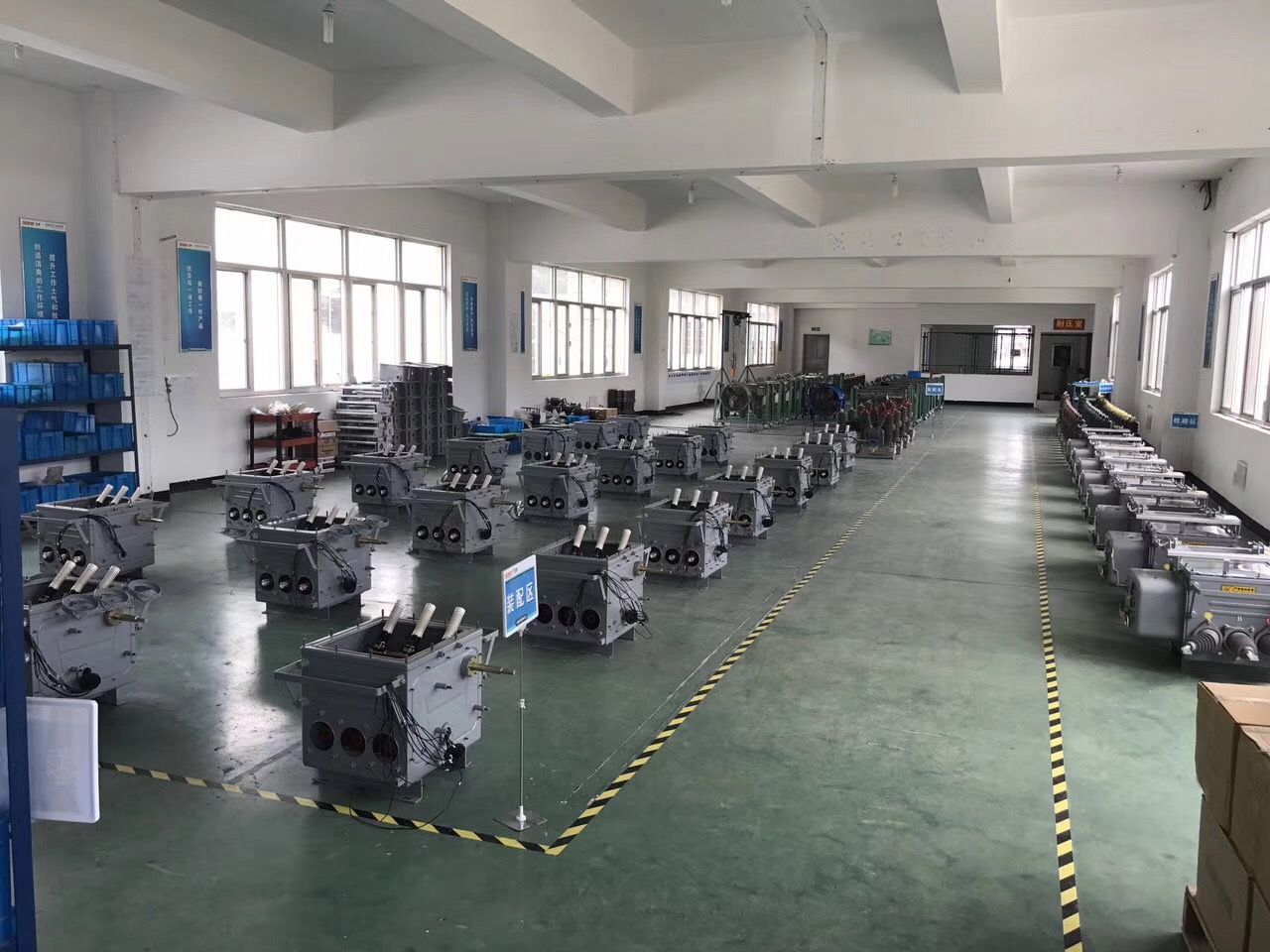

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
