Zw20 630A Auto Recloser Outdoor Vacuum Circuit Breaker Vcb

Product Description

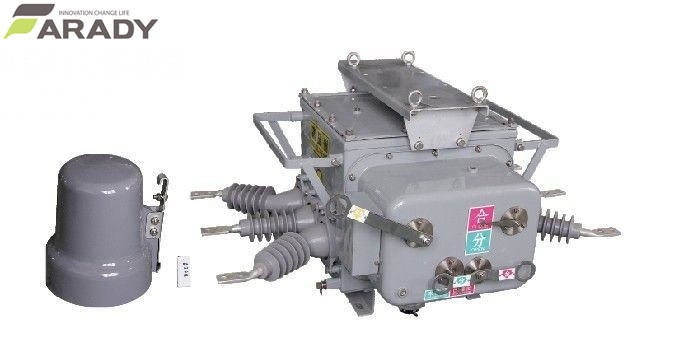

630AZW20 630A Outdoor Vacuum Circuit Breaker 11kV Auto Recloser

OCB2 series outdoor vacuum circuit breaker is used in three-phase power system of AC 50/60Hz, rated voltage 10-38kV, as breaking, closingload current. Also, the circuit breaker has the function of overload and short circuit protection, controlling, measuring, remote control and monitoring. It accords with the standards of IEC62271-100 & GB1984 AC high voltage circuit breaker, GB/T 11022 HV General technical requirement of switches and control apparatus.

OCB2 series outdoor high voltage vacuum circuit breaker is widely used. For the main section, close load current and short-circuit current, suitable for transformer substations and industrial and mining enterprises distribution systems to make protection, and control in more suitable to the frequent operation occasion of the power grid. This product and controller form a complete set, as a dividing line for power companies and users circuit breaker boundary first circuit breaker, have the full protection of the performance, excellent coincidence device function, meet the power distribution automation system requirements.




Features:

1. The OCB2 series outdoor pole-mounted HV vacuum Circuit Breaker applies three-phase pole-type structure. It has characteristics of stable closing/breaking property, no fire or explosion danger, maintenance-free, small dimension, small weight, long service life, etc.

2. The OCB2 series is hermetical sealed, and is moisture-resistant, anti-condensation. It is especially suitable for application at severe cold and damp areas. Three-phase pillar and current transformer apply imported outdoor epoxy resin solid insulation materials. It is high/low temperature resistant, UV-resistant and anti-ageing.

3. The operating mechanism is miniature spring operating mechanism with low breaking/closing energy consumption. The driving of it applies straight transmission with little components and high reliability. The operating mechanism is enclosed in a cabinet, and that makes it rust-resistant and more reliable.

4. The OCB2 series is are electrically and remote controlled, also can be manually controlled. They can be fitted with controllers to realize electric automation or to form auto-reclosing device with reclosing controller.

5. The OCB2 series is also fitted with disconnectors of clear isolation opening and have reliable mal-operation prevention mechanical interlocking device between CBS. And the disconnectors are easily detachable.

Normal service conditions

1 Ambient Temperature: -40°C~ +70°C

2 Altitude: ≤3000m;

3 Rated Power-Frequency: 50Hz/60Hz;

4 Seismic Intensity: ≤8;

5 Maximum Wind Speed: 35m/s.

About Us

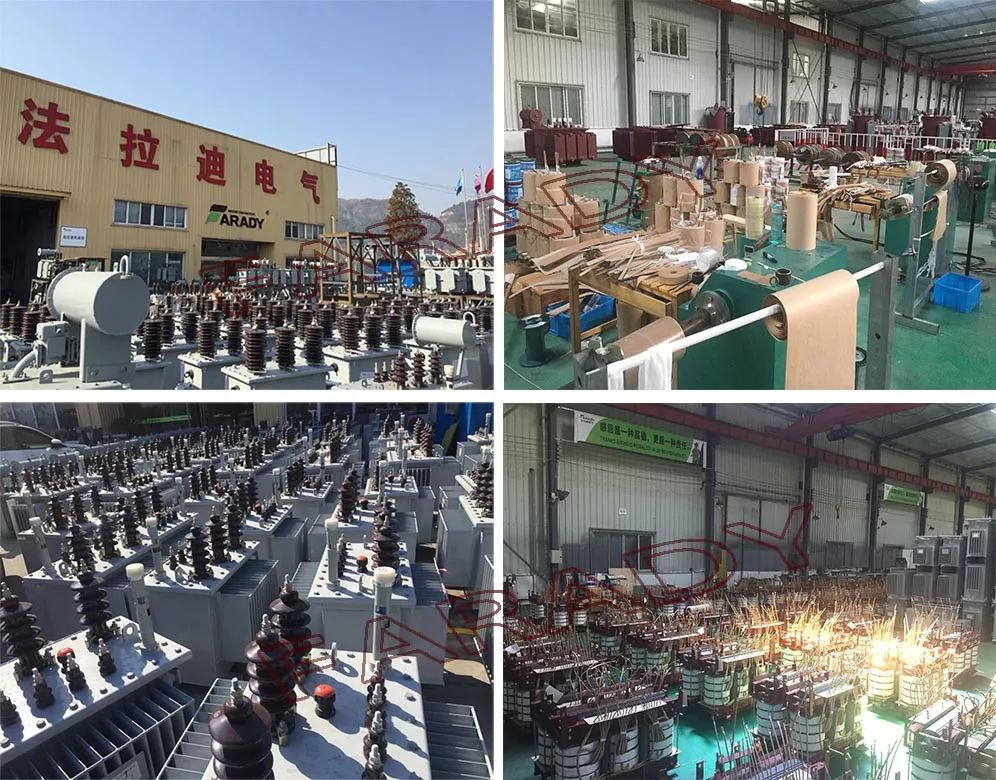

Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program,State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Liushi of Yueqing, Zhejiang,China,main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid.
With ISO9001/14001/18001, we are strike for create value for our partner and customer.
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from china, and contributes its share to the transformation from the Made in China into the Invented in China.




Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
