Zw32-12 Series Vcb Vacuum Circuit Breaker High Middle Voltage
| Price: |
US $ 1050-1100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZW32-12 |
| Material: |
Stainless Steel |
| Rated Current: |
630A |
| Rated Voltage: |
12V |
| Customized: |
Available |
| Weight: |
120kg |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
ISO14001 |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.

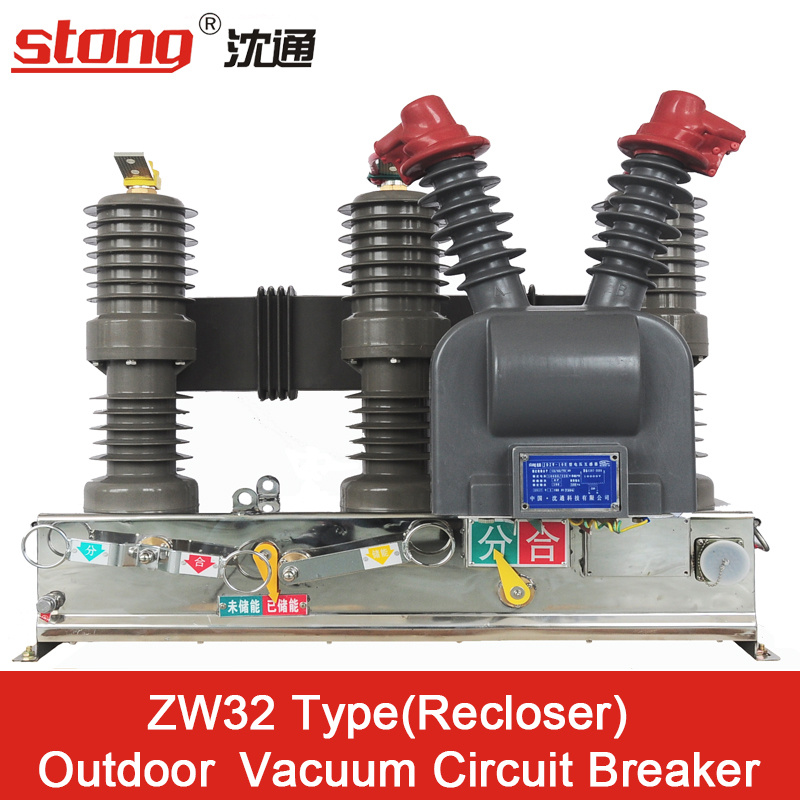

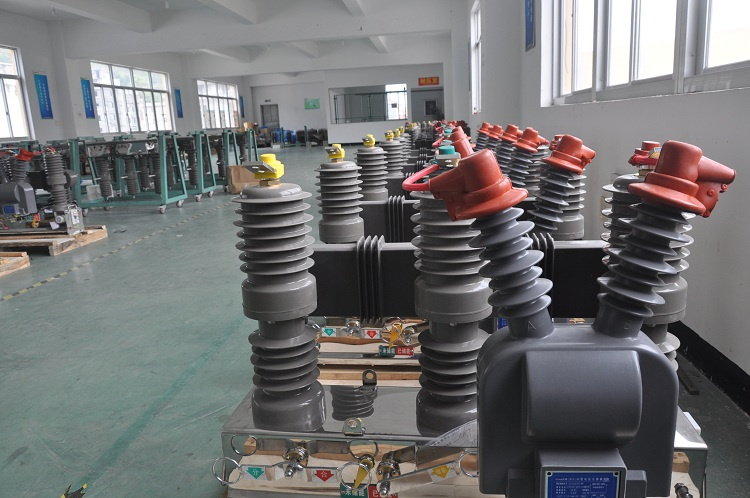

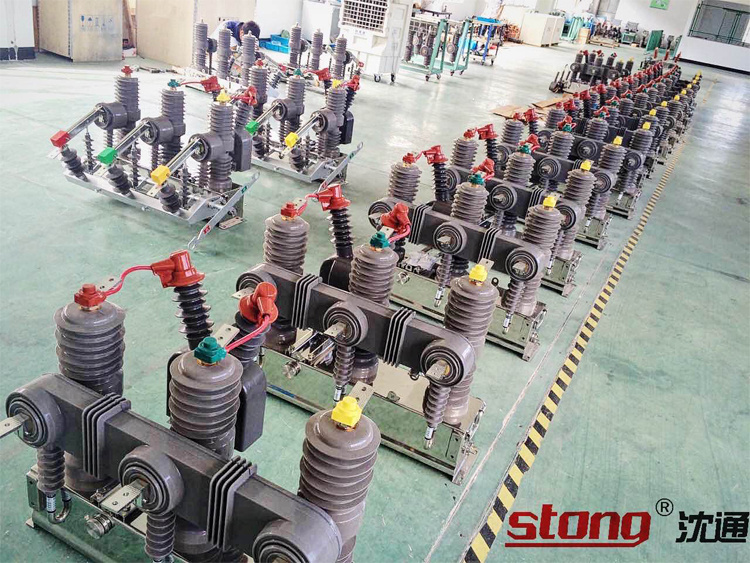

5.Factory Selling DirectlyDescription:ZW32-12 type outdoor high voltage vacuum circuit breaker is three-phase AC,50(60) Hz outdoor power distribution equipment with the rated voltage of 12kV.It is mainly used to break and close the load current,and short circuit current in the electric power system.It fits to be used to protect and control the circuit in substation,mining and industrial enterprises.It also can be used in the frequently operation places such as the rural power network. The product is accordance with GB1984-2003 standard.

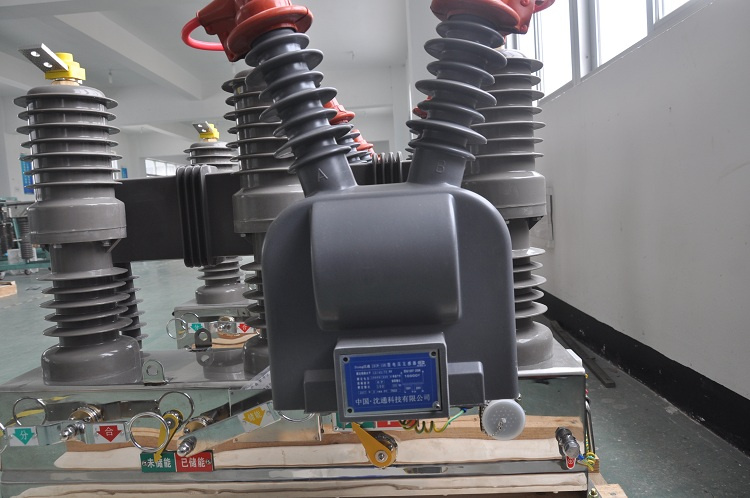

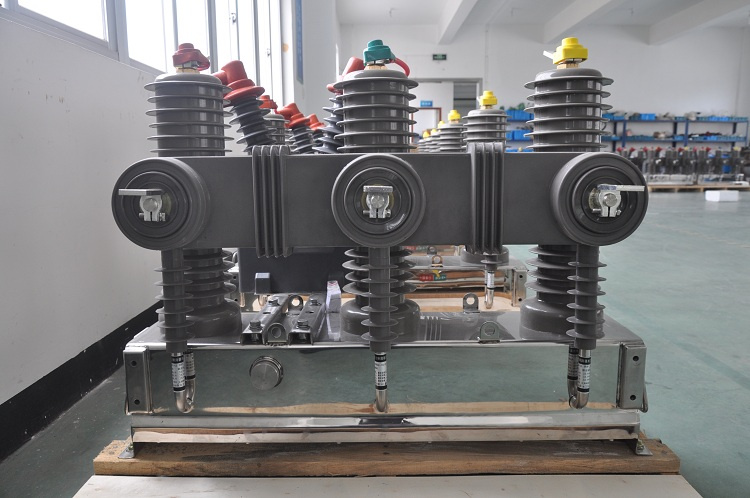

The ZW32-12G VCB Isolating switch combination consists of Vacuum circuit breaker body and isolating switch.Applying ambient conditions1.Ambient temperature:-10ºC~+40ºC.
2.The height above sea level:≤1000m(besides the special requirements).
3.Relative humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.
4.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa;the average pressure of a month should be no more than 1.8kPa.
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth,chemical erosion and violent vibration.

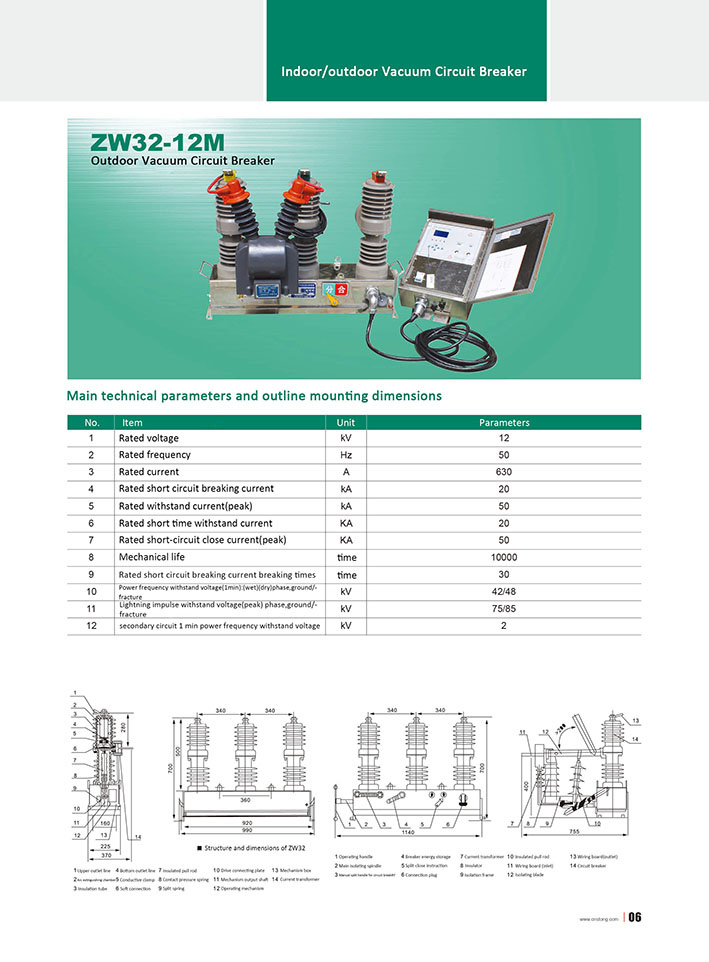

Parameters| No. | Description | Unit | Data |
| 1 | Rated voltage | kV | 12 |
| 2 | Rated insulation levels | Rated power frequency withstand voltage/1min
( phase to phase, phase to earth, open contacts) |
kV | 42 |
Rated lighting impulse withstand voltage
(phase to phase, phase to earth, open contacts) | 75 |
| 3 | Rated frequency | Hz | 50 |
| 4 | Rated current |
A | 630 | 630 | 1250 | 1600 |
| 1250 | 1250 | 1600 | 2000 |
| | | 2000 | 2500 |
| | | 2500 | 3150 |
| | | | 4000 |
| 5 | Rated short circuit breaking current | kA | 20 | 25 | 31.5 | 40 |
| 6 | Rated short time withstand current(4s) | kA | 20 | 25 | 31.5 | 40 |
| 7 | Rated short circuit making current | kA | 50 | 63 | 80 | 100 |
| 8 | Rated peak value of withstand current | kA | 50 | 63 | 80 | 100 |
| 9 | Rated operating sequence | | O-0.3s-CO-180s-CO
O-180s-CO-180s-CO |
| 10 | Rated short circuit breaking current breaking times | times | 30/20(40kA) |
| 11 | Rated cable charge breaking current | A | 25 |
| 12 | Rated single capacitor bank breaking current | A | 630/400(40kA) |
| 13 | Rated back to back capacitor bank breaking current | | 400 |
| 14 | Mechanical life | times | 10000 |
| 16 | Allowed abrade cumulative thickness of moving and static contactor | mm | 3 |
| 17 | Clearance between open contacts | mm | 11±1 |
| 18 | Contact stroke | mm | 3.5±0.5 |
| 19 | Bounce duration of contact closing | ms | ≤2 |
| 20 | Non-simultaneity of three phase for opening and closing | ms | ≤2 |
| NO | Item | Unit | Technical Data |
| 1 | Rated voltage | KV | 12 |
| 2 | 1 min power frequency withstand voltage | 42 |
| Lighting impulse withstand voltage(peak value) | 75 |
| 3 | Rated Frequency | Hz | 50 |
| 4 | Rated current | A | 630, 1250, 1600, 2000, 2500, 3150, 4000 |
| 5 | Rated short time withstand current | KA | 20, 25, 31.5, 40 |
| 6 | Rated withstand current(peak) | 50, 63, 80, 100 |
| 7 | Rated short-circuit opening current | 20, 25, 31.5, 420 |
| 8 | Rated short-circuit closing current | 50, 63, 80, 100 |
| 9 | Rated duration of short-circuit | S | 4 |
| 10 | Contact's clearance | | 3.5±0.5 |
| 11 | Contact's travel | | 9±1/11±1 |
| 12 | Average opening speed | M/s | 1.1±0.2 |
| 13 | Average closing speed | M/s | 0.6±0.2 |
| 14 | Opening time | Ms | 35-60 |
| 15 | Closing time | Ms | 20-45 |
| 16 | Mechanical life | Times | 30000 |
| 17 | Rated operating order | | O-0.3S-CO-180S-CO(<40KA)
O-180S-CO-180S-CO(≥40KA) |
