| Prod Model: |
TMCC05 |
| Material: |
Npo,X7r,Y5V |
| Type: |
Ceramic Trimming Capacitor |
| Application: |
General Purpose |
| Package Type: |
Through Hole |
Product Description
Capacitor
SMD Multilayer Ceramic Capacitor

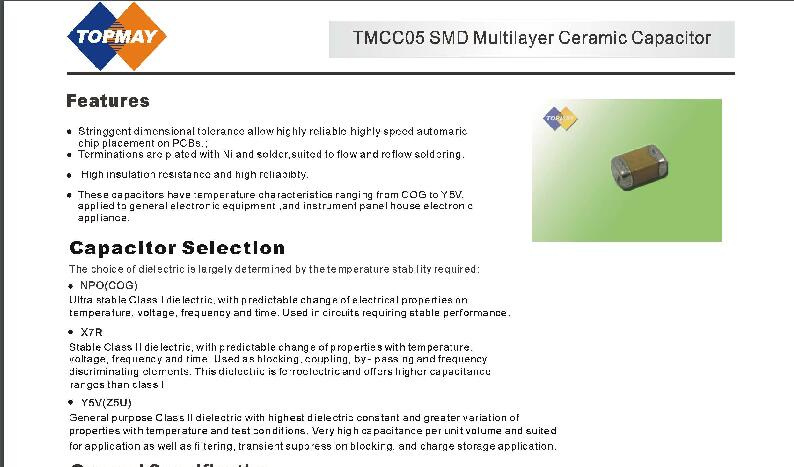

Capacitor selection:
The choice of dielectric is largely determined by the temperature stability required:
1) NPO (COG)
Ultra stable Class I dielectric, with predictable change of electrical properties
On temperature, voltage, frequency and time. Used in circuits requiring stable
Performance.
2) X7R
Stable Class II dielectric, with predictable change of properties with temperature,
Voltage, frequency and time. Used as blocking, coupling, by-passing and frequency
Discriminating elements. This dielectric is ferroelectric and offers higher
Capacitance ranges than class I.
3) Y5V (Z5U)
General purpose Class II dielectric with highest dielectric constant and greater
Variation of properties with temperature and test conditions. Very high capacitance
Per unit volume and suited for application as well as filtering, transient suppression
Blocking, and charge storage application

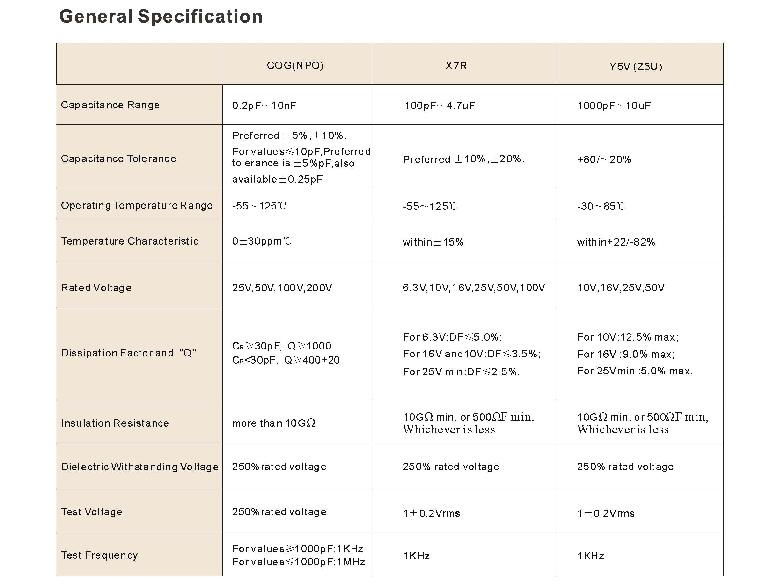

Key Specifications/Special Features:
Capacitance range: 0R5-104
Insulation resistance: C <=10nF R >=10, 000MQC >=10nF CR >=100s
Withstanding voltage: 2.5 times of working voltage
Dissipation factor: 0.15% maximum (20 degrees Celsius, 1MHz, 1V DC)
Rated voltage: 25, 50, 63 and 100V DC
Capacitance tolerance: B = +-0.1PF, C = +-0.25PF and D = +-0.5PF
F = +-1%, G = +-2%, J = +-5%, K = +-10% and M = +-20%
Life test: 200% rated voltage at +125 degrees Celsius, 1, 000 hours
Solderability: SJ/10211-91 4.11
Resistance to soldering heat: SJ/T10211-91 4.10
Mechanical test: SJ/T10211-91 4.9
Temperature cycling: SJ/T10211-91 4.12
Moisture resistance: SJ/T10211-91 4.14
Termination adhesion strength: SJ/T10211-91 4.9
NPO (COG) ultra stable class I dielectric
With predictable change of electrical properties on temperature
Voltage, frequency and time, used in circuits requiring stable performance
Product Certifications:
Certificate Standard: SGS
Certificate Number: GZSCR041248032/LP.
Issue Date: 24-Dec-2004
Certification Agent: SGS -CSTC LTD
Certificate Standard: RoHS
Certificate Number: CQC06130017473
Issue Date: 08-Sep-2006
Expiry Date: 07-Sep-2007
Certification Agent: China Quality Certification Centre
