1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)

Name: 1-35kv Electrical Copper Conductor XLPE Mv Power Cable (Medium Voltage)
Brand: all-electronics-online.com
SKU: 619119162
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

1-35KV MV Power Cable(Medium Voltage)

1-35KV MV Power Cable(Medium Voltage) according to IEC ,ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc.

1.This cable belongs to cables rated voltage up to 35KV.

2. Commonly the cables comply with IEC 60502 standard. We can also produce according to the standard required by our clients, such as ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc.

3. Rated Voltage of the cable is from 1KV to 35KV, Cross-section area is up to 1000 SQMM .

4. The cable can be used for laying indoor, tunnel, underground , canal, water and seabed , etc . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , corrugated alu sheath , lead sheath , etc.

5. Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature is 250 degrees.

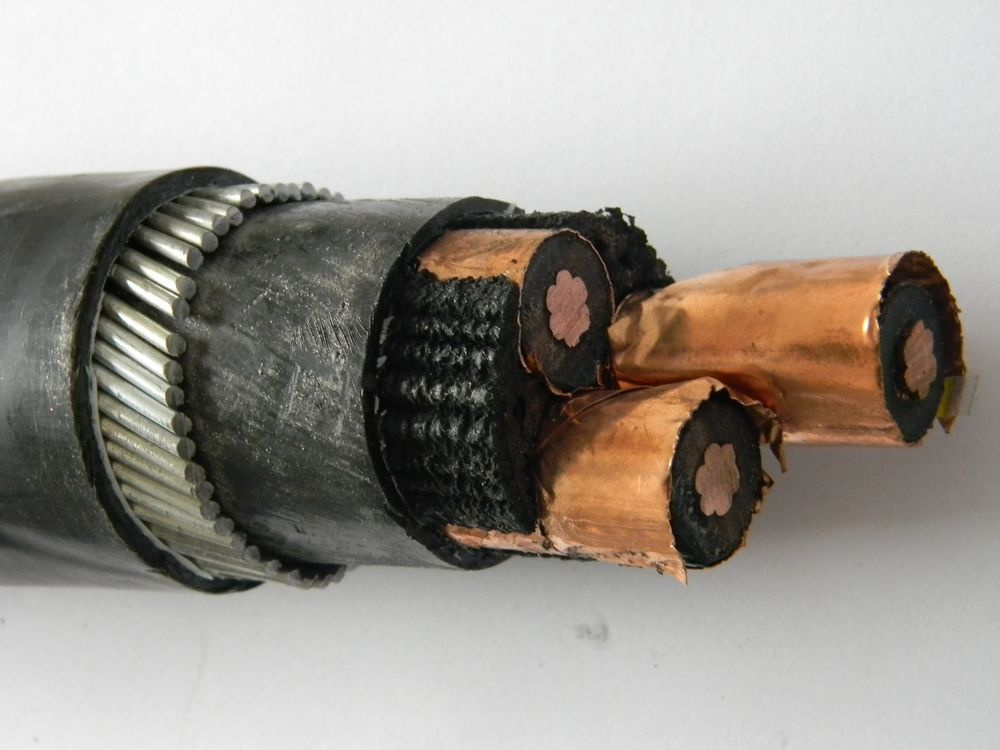

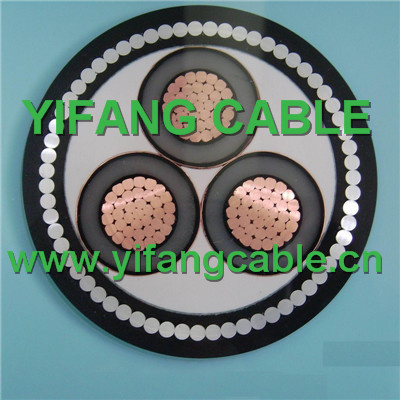

6. Cable Structure :
6.1 Single core or 3 Core
6.2 Copper or aluminium conductor
6.3 XLPE insulation
6.4 Copper tape or copper wire screen / Alu-Plastic Tape screen
6.5 Armoured with Galvanized steel wire / Steel tape / Aluminium Wire / Aluminium tape
6.6 Outer sheath with PVC / PE / LDPE / LLDPE

7.Export Areas: Philippines, Korea, Saudi Arab, Bangladesh, Singapore, Yemen, India, Iraq , Iran, UAE ,Jordan, Qatar, Indonesia, Syria , UK, Italy , Germany, Romania, Belgium, Russia, South Africa , Zambia ,Nigeria ,Guinea ,Gambia ,Ghana , Kenya, Rwanda, Côte d'Ivoire, Eritrea, Zimbabwe ,Mauritius, US, Peru, Canada, Mexico, Jamaica, Brazil, Chile, Bolivia, Ecutor , Dominican ,etc.

8.Certificate: ISO ,CE , SGS, SONCAP , BV , COC,ETC.

9.For other detailed information , pls contact us directly .

Prod Model:	MV Cable-B-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheath Colour:	Red, Black, Other as Per Requirement
Oil Resistant:	According to Requirements
Anti-Termite:	According to Requirements
Color:	Required
Name:	XLPE Medium Voltage Cable
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Sheath Material:	PVC or PE
Wire Core Material:	Copper or Aluminum
Model:	Power Cable
Brand:	Yifang

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
