Copper Conductor PVC Electric Wire for Building or Constrction

Name: Copper Conductor PVC Electric Wire for Building or Constrction
Brand: all-electronics-online.com
SKU: 619105232
Availability: InStock
Rating: 4.8 (85 reviews)

Price:	US $ 200-20000/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

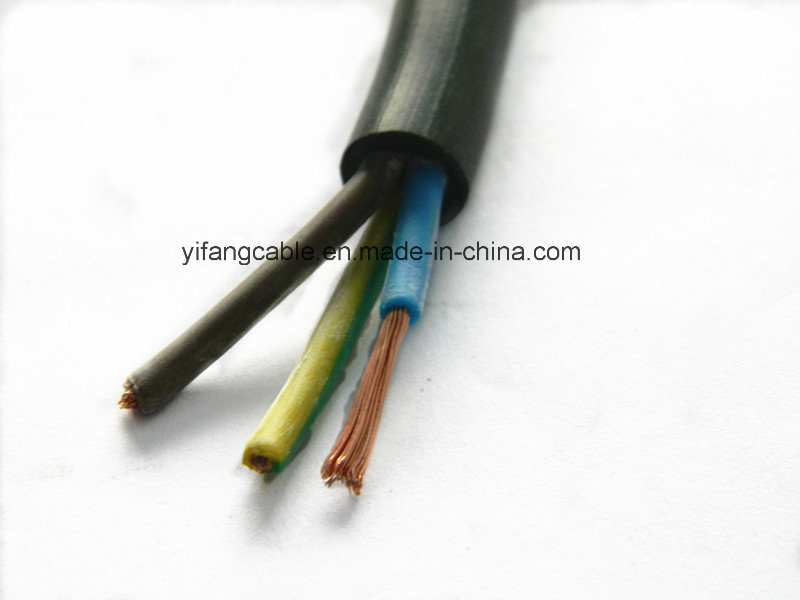

PVC insulated wire Rated 450/750V

Specification:

1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.

2. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0 degree.

3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.

4. Construction:
copper or aluminum conductor
PVC or XLPE insulated
Single or Multicore
flat or round Shape
5.packing:
Can be supplied in any length required .

Other special characteritics: design and manufacture according to customers' request .
YiFang cable open the world ,lighten the family.
Please contact us freely ; may be I will give you a big surprise !

Prod Model:	BV RV BLVVB RVV BVR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Required
Name:	Electric Wire
Voltage:	300/500V 450/750V
Insulation:	PVC or PE or HDPE or XLPE
Type:	Insulated
Conductor Material:	Copper
Certification:	ISO9001
Conductor Type:	Solid, Stranded, or Flexible
Application:	Building or Others
Sheath Material:	PVC or PE
Insulation Material:	XLPE, PVC, PE etc
Material Shape:	Round or Flat
Range Of Application:	Building or Others
Brand:	Yifang
