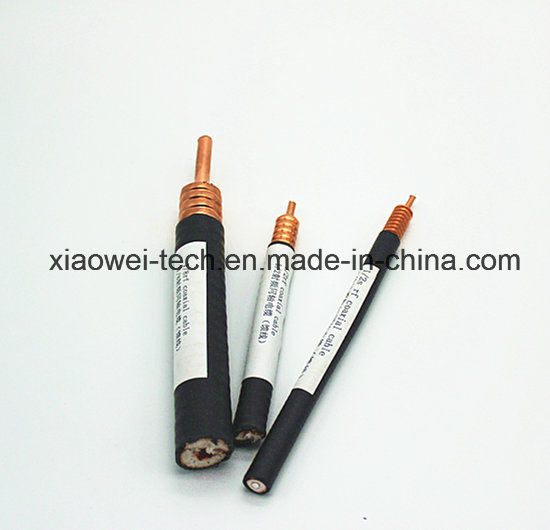

1-5/8" Radio Frequency RF Communication Coaxial Cable
| Price: |
US $ 1-1.5/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HHTAY(Z)-50-42 |
| Color: |
Black |
| Inner Conductor: |
Spiral Copper Tube |
| Outer Conductor: |
Copper |
| Weight: |
1.32 Kg/M |
| Application: |
RF Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PE |
| Type: |
Cat 1 |
| Certification: |
VDE |
| Model: |
Hhtay(Z)-50-42 |
| Brand: |
OEM |
Product Description
1-5/8" Radio Frequency rf Communication Coaxial Cable
Company profile
Shanghai Xiaowei Equipment Co., Ltd. located Shanghai, China which is branch for overseas market of Jiangsu Huacan Telecommunication Co., Ltd. We are specialist supplier of telecommunication equipment and the total solution for your project.
Jiangsu Huacan Telecommunicaton Co. Ltd is a Private Science and Technology Enterprises and National Hi-tech Enterprise which mainly deals with developing, producing and selling wireless base station antenna and antenna accessories. Founded in 2007, the company has an area of 160 thousand square meters, and more than 2000 staffs.Our company has four production bases: feeder accessories and telecommunication cables; basestation antennas and passive components; coaxial connectors and arrestors; cable assembly and indoor Distributed Antenna.
We are the supplier of civil system intergrators, such as Huawei, ZTE, because of the capacity of wireless communication accessories, and a higher products share. Thanks to high quality and thoughtful after-sales service, many system operators (China Mobile, China Unicom and China Telecom etc.) choose our products for their network.
Our companypassed the certification of ISO9001, ISO14001 and the occupational health system certification. As a member of China Communications Standards Association and with more than 140 patents of all kinds, we often participate in making draft and formulating mobile communication products industry standard.
Structure
1. Inner conductor material : Copper-clad Aluminum Wire, Solid bare copper, corrugated copper tube
2. Dielectric : FPE
3. Outer conductor material : Corrugated copper
4. Jacket : PE or LSZH PE
Characteristics & Applications
Big transmission power, low transmission attenuation, good humidity resistance. Main used in telecommunication, microwave and radar system.
Operation temperatures : - 55 ~ +85 degree
Installation temperatures : -20 ~ +60 degree
Storage temperatures : -55 ~ +85 degree
Structure and dimensions |
Inner conductor | |
Outer conductor | Copper |
O.D. of inner conductor (normal) | 17.3 mm |
O.D. of outer conductor (normal) | 46.5 mm |
O.D. of jacket (normal) | 49.6 mm |
| Cable weight | 1.32kg/m |
Mechanical Properties |
Minimum Bending Radius | 510 mm |
Number of Bends, Min | 15 |
Tensile strength | 363 kg |
Attenuation and Average Power |
| Attenuation (normal/max.) dB/100m | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
Note: The maximum attenuation above is according to YD/T 1092-2004, it can be adjusted after both-side permitted. |

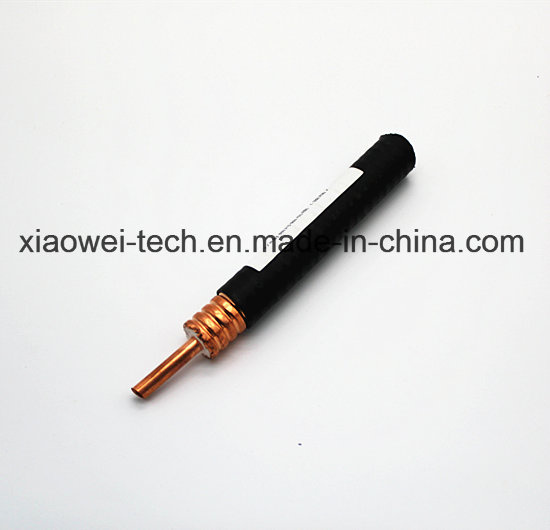

Detailed Images
Packing & Delivery Packing by Reels
The wood or plywood reels will be used, when the length of cable is more than 300m. The dimensions of these reels are shown in the following table1.
Reel Type | Flange dia (mm) | Max. Width (mm) |
M160 | 1600 | 1100 |
M160 | 1600 | 780 |
For more information, please contact us.
