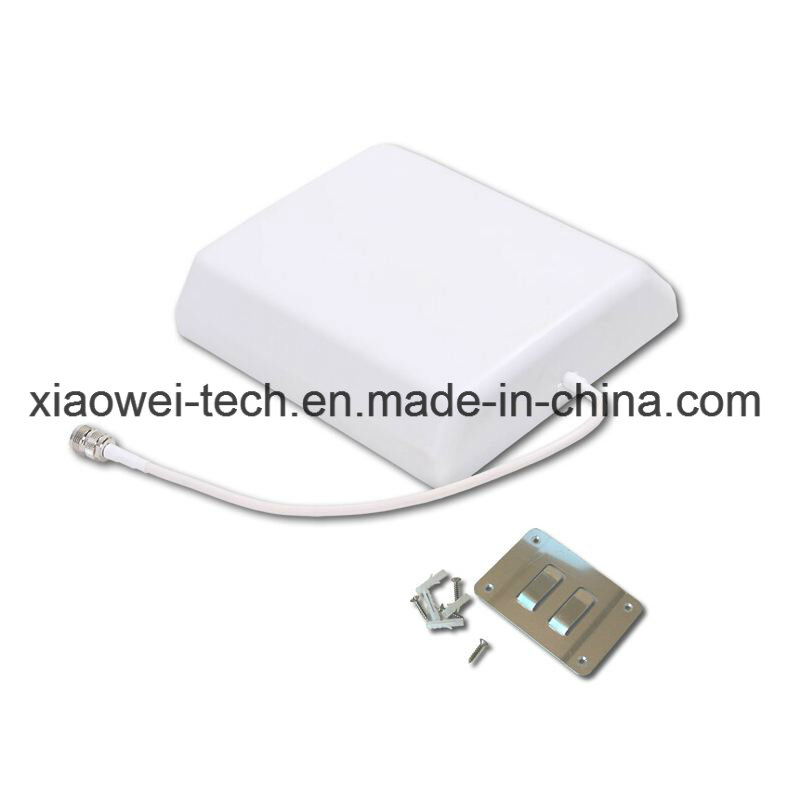

700-2700MHz 800-2500MHz Patch Panel Wall Mounted Directional Indoor Antenna
| Price: |
US $ 3-10/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
700-2700MHz 800-2500MHz Patch Panel Wall Mounted Directional Indoor Antenna
Company profile
Shanghai Xiaowei Equipment Co., LTD (Xiaowei) was established in 2011, Shanghai, which is a company covering cable and accessories manufacturing, engineering service and trading.
As a National wide wire & cable supplier Xiaowei continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grouding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable and outdoor fiber cable, splitter and coupler, Dual and trible band antanna, GPS antenna and GPS cable all the accessories in the telecom field.Xiaowei also supply VHF vabor phone, WLAN system.
Xiaowei have advance manufacturing product line, standard factory, we have long co-operation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.
Xiaowei particularly focused on the QoS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide. With the develop of the business, Xiaowei extend the service to the international trading.
Specification| Frequency Range | 698-960/1710-2700MHz |
| VSWR | ≤1.4 |
| Input Impedance | 50Ω |
| Gain | 7dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 90° |
| Vertical Beamwidth | 65° |
| Electrical Downtilt | 0° |
| Front to Back Ratio | ≥23dB |
| Max, power | 50W |
| Connector Type | N Female |
| Intermediation IM3 | ≤-107dBm |
| Lightning Protection | DC ground |
Mechanical Specifications |
| Height | 210mm×180mm×44mm |
| Weight | 0.6kg |
| Rated Wind Velocity | 210km/h |
| Diameter | UV Protected ABS |
1. Installation instruction:
In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling.
Screw the fixing nut to fasten the antenna on the ceiling. The ceiling's thickness is at most 20mm.
2. Storage and transportation:
A. The antenna must be stored in room temperature and dry environment;B,Handle the antenna with care
3. Attention: The antenna mustn't be near to fire.
Detailed Images
For more information, please feel free to contact us!!
| Prod Model: |
GDHC800/2700A-7/8 |
| Color: |
White |
| Gain: |
2 - 6 dBi |
| Polarization: |
Vertical |
| Radome Material: |
ABS |
| Usage: |
Communication Antenna |
| Material: |
Cu |
| Directionality: |
Directional Antenna |
| VSWR: |
1.5~2 |
| Operating Wavelength: |
Customization |
