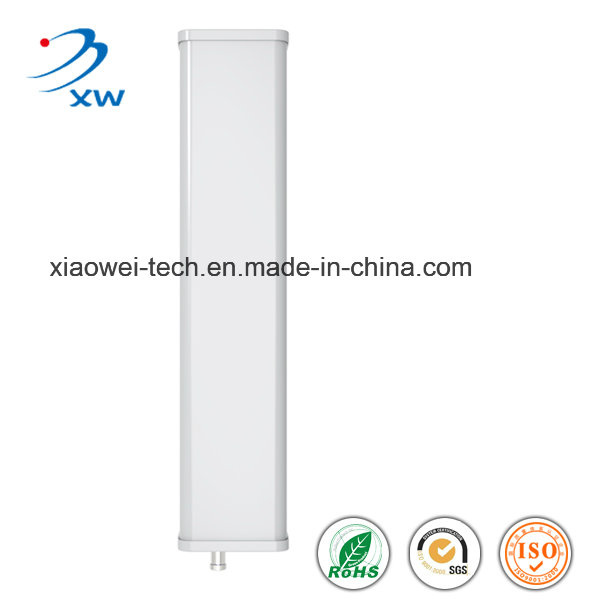

High Band 2g 3G 4G Base Station Antenna
| Price: |
US $ 30-200/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
High Band 2G 3G 4G Base Station Antenna
Company profile
Shanghai Xiaowei Equipment Co., LTD (Xiaowei) was established in 2011, Shanghai, which is a company covering cable and accessories manufacturing, engineering service and trading.
As a National wide wire &cable supplier Xiaowei continually provide different quality products in the telecom communication fields, the main product is 7/8 feeder cable, 1/2 feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connector feeder connector, feeder grouding kit, grounding bar, low loss 7/8 jumper cable and 1/2 jumper cable, indoor optic jumper cable and outdoor fiber cable, splitter and coupler, Dual and trible band antanna, GPS antenna and GPS cable all the accessories in the telecom field. Xiaowei also supply VHF vabor phone, WLAN system.
Xiaowei have advance manufacturing product line, stanard factory, we have long co-operation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.
Xiaowei particularly focused on the QoS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide. With the develop of the business, Xiaowei extend the service to the international trading.
Specification| Frequency Range (MHz) | 1710~2170 |
| Gain(dBi) | 15±0.5 |
| Horizontal Beam Width(°) | 65±6 |
| Vertical Beam Width(°) | 14±2 |
| Electrical Downtilt(°) | 0 |
| VSWR | ≤1.5 |
| Isolation between Ports(dB) | N/A |
| Cross Polarization Ratio(dB) | N/A |
| Upper Sidelobe Suppression(dB) | ≥15 |
| Null-Fill(dB) | / |
| Front to Back Ratio(dB) | ≥25 |
| Polarization | Vertical |
| Input Maximum CW Power(W) | 250 |
| PIMD 3th | ≤-107dBm(@20W) |
| Impedance(Ω) | 50 |
| Input Connector | 7/16DIN FEMALE or N female |
| Dimensions of Antenna(mm) | 570×180×80 |
| Weight of Antenna(kg) | 3.2 |
| Weight of Mounting Kits(kg) | 1.2 |
| Install Position Adjustment(°) | 0~10 |
| Temperature(ºC) | -40~+60 |
| Max Wind Speed (m/s) | 55 |
| Radome Material | (Plastic or FRP) |
| Diameter of Installation Pole( mm) | Φ50~Φ80 |
1. Installation instruction:
In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling.
Screw the fixing nut to fasten the antenna on the ceiling. The ceiling's thickness is at most 20mm.
2. Storage and transportation:
A. The antenna must be stored in room temperature and dry environment;B,Handle the antenna with care
3. Attention: The antenna mustn't be near to fire.Detailed Images
For more information, please feel free to contact us!!
| Prod Model: |
1710-2170MHz |
| Color: |
White |
| Gain: |
15 dBi |
| Polarization: |
Vertical |
| Radome Material: |
ABS |
| Usage: |
Communication Antenna |
| Material: |
Cu |
| Directionality: |
Directional Antenna |
| VSWR: |
1.5~2 |
| Operating Wavelength: |
Customization |
