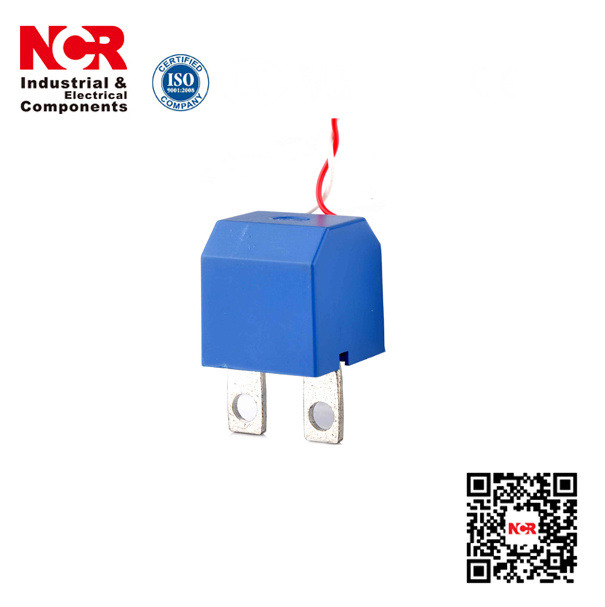

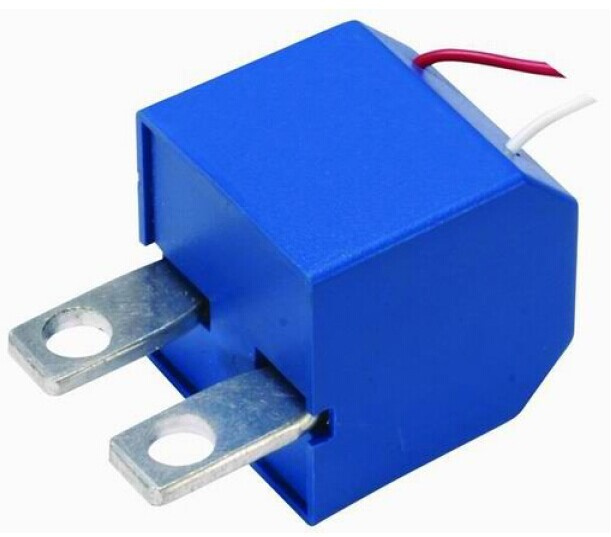

0.1 Class Current Transformer NRC07

Used for a current sensing device for utility energy meter.
Moisture-proof and vibration-resistant.
Encapsulation by epoxy resin, with high insulation ability.
Casing by flame retardant PBT.
DC-tolerance version available (IEC62053-21 standard).

Characteristics

Values

Operating frequency

50/60Hz

Operating temperature

-25 º C ~ 75 º C

Relative humidity

80% ~ 90%

Rated primary current I p

10 or 20A

Maximum primary operating current I max

100A

Rated secondary current I s

When I p =10A, I s =4mA
When I p =20A, I s =8mA

Turn ratio N

1: 2500

Testing current for DC component I test

I max /

Burden resistor R b

5 Ω , 10 Ω , 20 Ω

Accurate operating current range

5% I p ~ I max

Accuracy class

0.2%

Insulation intensity under power frequency

Without damage by 4000V for 1 min.

Insulation resistance

> 50M Ω

Prod Model:	NRC07
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	0.1, 0.2, 0.5 Class
Turn Ratio:	1:2000/1:3000
Working Temperautre:	-25~75
Relative Humidity:	80~90%

NCR Industrial:

A) P. C. B Relays for household appliance industry

B) Latching Relays/Shunts/C. T. For Energy meter industry

C) Eletricity Measuring Meters

With professional manufacturing and reliable design concept, NCR is supplying superior Latching Relay, Shunt and Current Transformer to worldwide meter producers.

With decades of manufacturing experience, we are now enjoying a high reputation in the metering field worldwide. Our product range include Latching Relay and Shunt/Current Transformer used for 60-200A single & three phase energy meter. We have over 10000sqm production facilities, several automatic and semi-automatic production lines. With strong R&D capability, we are offering our clients one-step customized solutions and service.

Based on ISO9000 quality standard, we have set up strict IQC, IPQC and FQC system in our manufacturing, to ensure quality meeting IEC62055-31 standard and customer's requirements.

We'll always keep the spirit "offering the best products and outstanding service", to go along with all our clients together. By continuous steps, NCR is efforting to offer better products and more professional solutions to our users.

"Nice, Content, Reliable. It's NCR. "
