10/100/1000 Base-T RJ45 Connector 30m SFP Optic Copper Transceiver
| Price: |
US $ 165-205/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

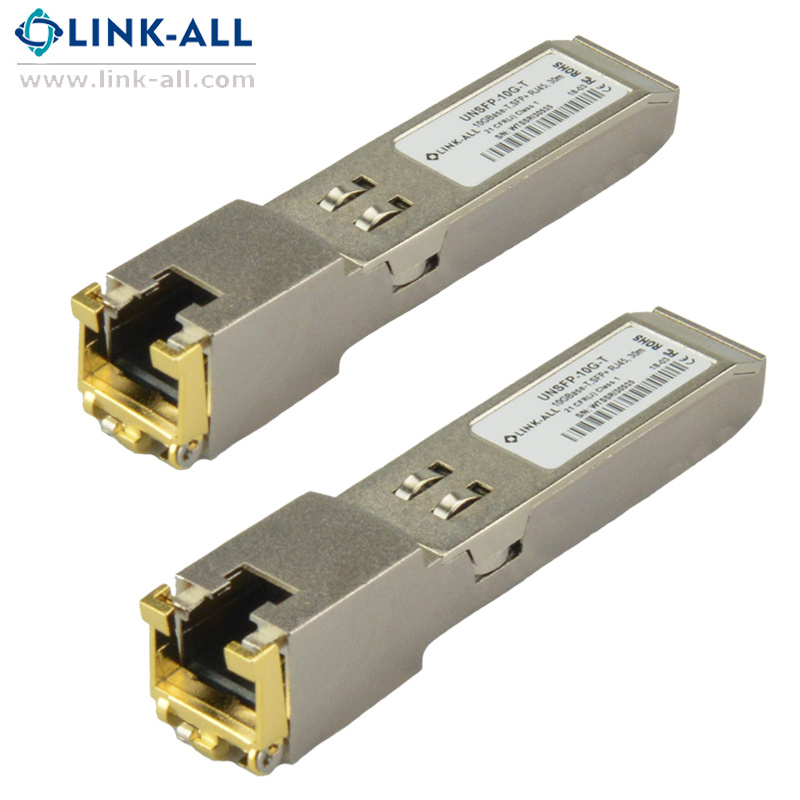

10/100/1000 Base-T RJ45 Connector 30m SFP Optic Copper Transceiver
Product Type: Copper Transceiver

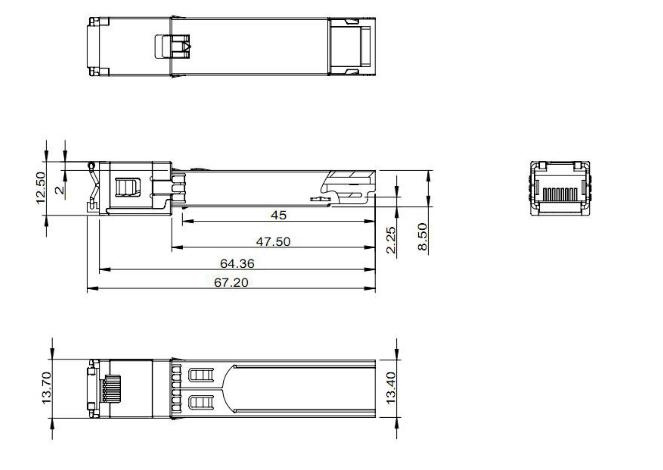

1) Model Number: UNSFP-10G-T
Features:
- Support 10GBASE-T Operation in Host Systems
- Support RX_LOS as Link indication function
- Hot-Pluggable SFP Footprint
- Compact RJ-45 Connector Assembly
- Compliant with SFP MSA
- Operating Case Temperature: 0ºC~70ºC
Application:
- 10G BASE-T IEEE 802.3an
- 1000BASE-T IEEE 802.3ab
- 100BASE-TX IEEE 802.3u
- 5G MGBASE-T
- 2.5G MGBASE-T
Product Description:
UNSFP-10G-T, 10G BASE-T Copper Small Form Pluggable (SFP) modules are based on the SFP Multi Source
Agreement (MSA). It is compliant with the 10G BASE-T, 1000BASE-T, 100BASE-TX standards as specified in
EEE STD 802.3an, 802.3ab and 802.3au.
Absolute Maximum Ratings:| Parameter | Symbol | Min | Type | Max | Units |
| Maximum Supply Voltage | Vcc | -0.5 | | 4.0 | V |
| Storage Temperature | TS | -40 | | 85 | °C |
Normal operating condition:
| Parameter | Symbol | Min | Type | Max | Units |
| Operating Case Temperature | Tc | UNSFP-10G-T | 0 | | 70 | °C |
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V |
Electrical Characteristics:
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
| +3.3 Volt Electrical Power Interface |
| Supply Current | Icc | | | 800 | mA | |
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Low-Speed Signals, Electronic Characteristics |
| SFP Output LOW | VOL | 0 | | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at
host side of connector |
| SFP Output HIGH |
OH | host_ Vcc -
0.5 | | host_ Vcc +
0.3 | V | 4.7k to 10k pull-up to host_Vcc, measured at
host side of connector |
| SFP Input LOW | VIL | 0 | | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP
side of connector |
| SFP Input HIGH | VIH | 2 | | Vcc + 0.3 | V | 4.7k to 10k pull-up to Vcc, measured at SFP
side of connector |
| High-Speed Electrical Interface, Transmission Line-SFP |
| Tx Output impedance | Zout,TX | | 100 | | Ohm | Differential, for all frequencies between
1MHz and 125MHz |
| Rx Input Impedance | Zin,RX | | 100 | | Ohm | Differential, for all frequencies between
1MHz and 125MHz |
| High-Speed Electrical Interface, Host-SFP |
Single ended data
input swing | Vin | 250 | | 1200 | mV | Single ended |
Single ended data
output swing | Vout | 350 | | 800 | mV | Single ended |
| Rise/Fall Time | Tr,Tf | | 20 | | psec | 20%-80% |
Tx Input
Impedance | Zin | | 50 | | Ohm | Single ended |
Rx Output
Impedance | Zout | | 50 | | Ohm | Single ended |
2) Model number: UNSFP-10G-C
Overview
The SFP+ cable assemblies are high-performance, cost effective I/O solutions for 10Gb Ethernet and 10G Fiber Channel
applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and
utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the
performance and reliability requirements stipulated by Gigabit Ethernet and Fiber Channel industry standard.
Features
1. Support multi-gigabit data rates up to 10.5Gbps
2. Support 1G/2G/4G/8G Fiber Channel data rates
3. Hot-pluggable SFP 20PIN footprint
4. Serial ID module on MOD (0-2)
5. AC coupling of PECL signals
6. EMI/EMC performance
7. Low Power Consumption < 0.5W
8. Power Supply: +3.3V
9. Compliant to SFP+ MSA
10. Temperature Range: 0~ 70 °C
11. ROHS Compliance
Applications
1. Storage Area Networks (SAN), Network Attached Storage and Storage Servers
2. 1G/2G/4G/8G Fiber Channel
3. Switched fabric I/O such as ultra high bandwidth switches and routers
4. Data center cabling infrastructure
5. High density connections among network equipments
Standards
Compliant with SFP MSA (INF-8074i)
Recommended Operating Conditions| Parameter | Symbol | Min | Typical | Max | Unit |
| Storage Ambient Temperature | | -40 | | +85 | °C |
| Operating Case Temperature | Tc | 0 | | +70 | °C |
| Power Supply Voltage | VCC3 | 3.14 | 3.3 | 3.47 | V |
| Power Dissipation | PD | | | 0.5 | W |
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks usually.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also
optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q7: What action will you take if there are some product problems?

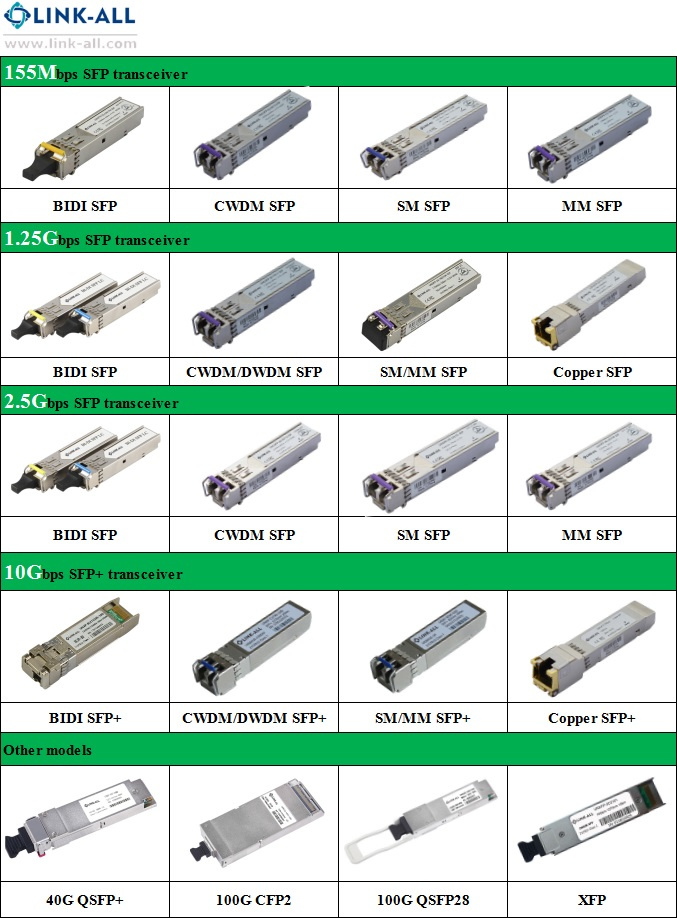

A: If there are defective ones in the batch of products, we will offer spare ones for you.Other SFP Transceiver Module for choosing
Please kindly send us INQUIRY if you are interested.
| Prod Model: |
UNSFP-10G-T/ UNSFP-10G-C |
| Product Name: |
Copper SFP Transceiver |
| Speed Rate: |
10gbase |
| Connector Type: |
RJ45 Connector |
| Transmitting Distance: |
30m |
| Communication Module: |
Hot Pluggable, SFP+ |
| Operating Temperature: |
0 to +70 Degree Centigrade |
| Interface Type: |
Plug-in Module |
| Usage: |
10g Base-T, Fiber Channel, Data Center |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
