Fiber Optic SFP Transceiver Optical Module
| Price: |
US $ 200-999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

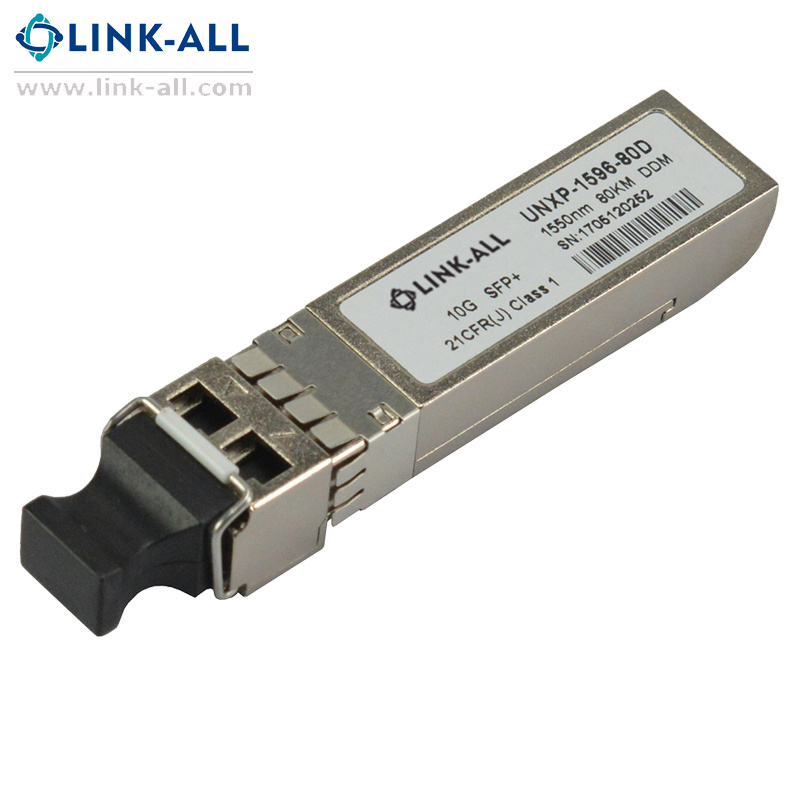

fiber optic SFP transceiver optical moduleData Rate: 10Gbps
1) Features - Up to 11.1Gbps Data Links
- Up to 10km transmission on SMF
- DFB Laser and PIN receiver
- Metal enclosure, for lower EMI
- 2-wire interface with integrated Digital Diagnostic monitoring
- Hot-pluggable SFP+ footprint
- Specifications compliant with SFF 8472
- Compliant with SFP+ MSA with LC connector
- Single 3.3V power supply
- Case operating temperature range:0°C to 70°C
- Power dissipation < 1.5 W
2) Application
- 10GBASE-LR/LW & 10G Ethernet
3) Standard- Compliant to SFF-8431
- Compliant to SFF 8472
- RoHS Compliant.
4) SpecificationAbsolute Maximum Ratings| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Storage Temperature | Ts | -40 | - | 85 | ºC | |
| Relative Humidity | RH | 5 | - | 95 | % | |
| Power Supply Voltage | VCC | -0.3 | - | 4 | V | |
| Signal Input Voltage | | Vcc-0.3 | - | Vcc+0.3 | V | |
Recommended Operating Conditions| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Case Operating Temperature | Tcase | 0 | - | 70 | ºC | Without air flow |
| Power Supply Voltage | VCC | 3.14 | 3.3 | 3.47 | V | |
| Power Supply Current | ICC | - | | 450 | mA | |
| Data Rate | BR | | 10.3125 | | Gbps | |
| Transmission Distance | TD | | - | 10 | km | |
| Coupled fiber | Single mode fiber | 9/125um SMF |
Optical Characteristics | Parameter | Symbol | Min | Typ | Max | Unit | NOTE |
| Transmitter | | | | | | |
| Output Opt. Power | POUT | -6 | | -0.5 | dBm | 1 |
| Optical Wavelength | λ | 1260 | 1310 | 1355 | nm | |
| Spectral Width (-20dB) | σ | | | 1 | nm | |
| Optical Extinction Ratio | ER | 3.5 | | | dB | |
| Output Eye Mask | Compliant with IEEE 802.3ae | |
| Receiver | | | | | | |
| Rx Sensitivity | RSENS | | | -14.4 | dBm | 2 |
| Input Saturation Power (Overload) | Psat | 0.5 | | | dBm | |
| Wavelength Range | λC | 1270 | | 1610 | nm | |
| LOS De -Assert | LOSD | | | -17 | dBm | |
| LOS Assert | LOSA | -30 | | | dBm | |
| LOS Hysteresis | | 0.5 | 1.0 | | dB | |
Notes: - Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
- Measured with a PRBS 231-1 test pattern, @10.325Gb/s, BER<10-12 .
Electrical Characteristics | Parameter | Symbol | Min | Typ | Max | Unit | NOTE |
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V | |
| Supply Current | Icc | | | 450 | mA | |
| Transmitter | | | | | | |
| Input differential impedance | Rin | | 100 | | Ω | 1 |
| Single ended data input swing | Vin,pp | 180 | | 700 | mV | |
| Transmit Disable Voltage | VD | Vcc-1.3 | | Vcc | V | |
| Transmit Enable Voltage | VEN | Vee | | Vee+ 0.8 | V | 2 |
| Transmit Disable Assert Time | | | | 10 | us | |
| Receiver | | | | | | |
| Differential data output swing | Vout,pp | 300 | | 850 | mV | 3 |
| Data output rise time | tr | 28 | | | ps | 4 |
| Data output fall time | tf | 28 | | | ps | 4 |
| LOS Fault | VLOS fault | Vcc-1.3 | | VccHOST | V | 5 |
| LOS Normal | VLOS norm | Vee | | Vee+0.8 | V | 5 |
| Power Supply Rejection | PSR | 100 | | | mVpp | 6 |
Notes:
1. Connected directly to TX data input pins. AC coupled thereafter.
2. Or open circuit.
3. Into 100 ohms differential termination.
4. 20 - 80 %.
5. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value
applied through the recommended power supply filtering network.
5) Other SFP Modules for choosing
For more products, please kindly check our website: www.link-all.com.
| Prod Model: |
10Gbps SM SFP+ transceiver |
| Package: |
SFP+ |
| Data Rate: |
10gbps |
| Wavelength: |
1310 Nm |
| Distance: |
10~80km |
| Output Power: |
-6 ~ -1dBm |
| Receive Sensitivity: |
- 10 dBm |
| Power Supply Voltage: |
3.3V |
| Connector: |
LC Duplex |
| Fiber Type: |
SMF |
| Operating Temperature: |
0~70 Degree |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Optic Transceiver |
