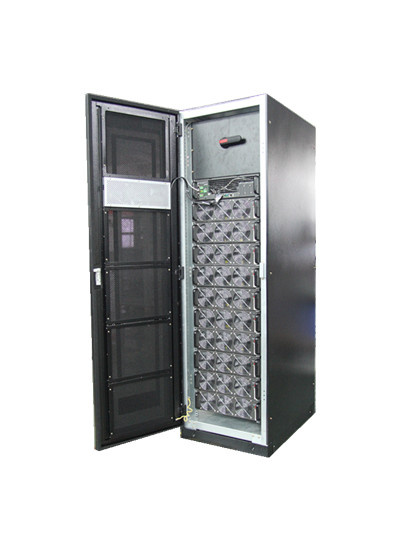

10-1200KVA PF 1.0 3Ph in/3Ph out Modular UPS MPS9335 SeriesKey Features:1. Superior energy saving and environment-friendly:
Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%
2. Superior capability of powering load:
Output PF is 1.0, no need of power deration with load of leading or lagging PF
3. Easy-to-install:
Top or bottom cabling, no need of input cabling cabinet.
4. Easy-to-maintain:
Full front access, UPS, failed part can be replaced shortly
5. Easy-to-modify:
The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the
legacy system; moreover, the battery cell can be replace in time when it fails without interrupting the normal
operation of UPS.
6. 6-inch extra large LCD
can display 12 language(Chinese,English,Russian,Spanish,French and so on )
Applications :IDC Internet Data Center, computing center, ISP (Internet Service Provider ), Telecom, Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.
Key Features
Module structure, be compose from 1 to 10 modules.
Redundant and scalable system, it can be upgraded
According to your requirement.
N + X redundancy, reliable performance.
Share battery pack.
Green and clean power, Input THDI≤ 3%, Input PF≥ 0.99. Can display 12 language (Chinese, English, Russian, French, Spanlish and so on)
Small size, light weight.
Easy maintenance, free replacement of the module.
System controller for communication and diagnosis.
Adopt centralized Static Switch module.

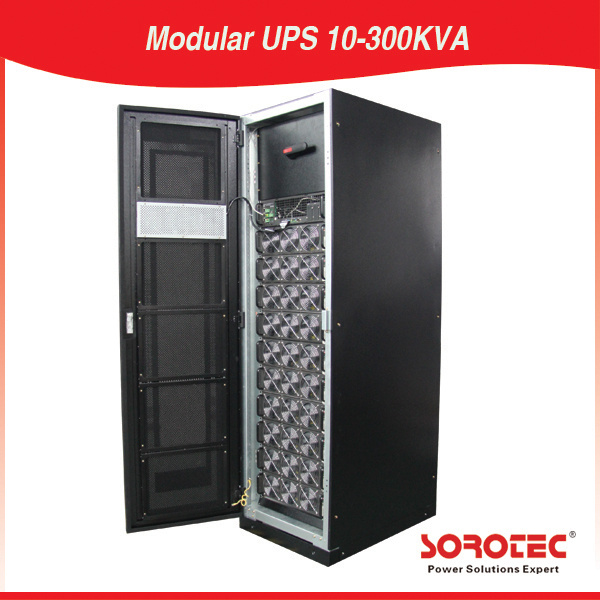

Technical Specifications of Modular UPS, MPS9335 10-300KVA
Model | MPS9335 10-300KVA |
| Capacity | 10-300KVA |
| Main input | |
| Input voltage | 380V/400V/415AC(Optional South America 208v) |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0. 98 |
| THDi | THDi <3% |
| Input power soft-start fantion | 5-30s settable |
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% |
| Frequency Range | 40-70Hz |
| Battery | |
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose |
| Charge Voltage accuracy | ± 1% |
| Bypass | |
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software |
| Overload Capacity | 150%,long term operation,150%1000% 100ms |
| Output | |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) |
| THDi | THD<1%(linear load), THD<3%(nonlinear load) |
| Power Factor | 1.0 |
| Three Phase Angle accuracy | 120°c ± 0.5°c |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 0ms,15ms(ECO Mode) |
| System | |
| Frequency | 50Hz/60Hz (Settable) |
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz |
| Protection Level | IP20 |
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port |
| System efficiency | > 96% at load above 50%, >95% at load above 25% |
| Operation Temperature | 0-40 °c |
| Storage Temperature | -25 °c -70 °c (without battery) |
| Humidity | 0-95%(no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| | 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG |
| | 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG |
| | module :PM10 | 10KVA power module :20KG |
| Weight | module :PM20 | 20KVA power module :21KG |
| | module :PM30 | 30KVA power module :32KG |
| Dimendion(W XD XH)mm | 5 module cabinet | 600X800X1400 |
| 10 module cabinet | 600X800X2100 |
| power module | 440X132X660(10KVA/20KVA/30KVA) |
