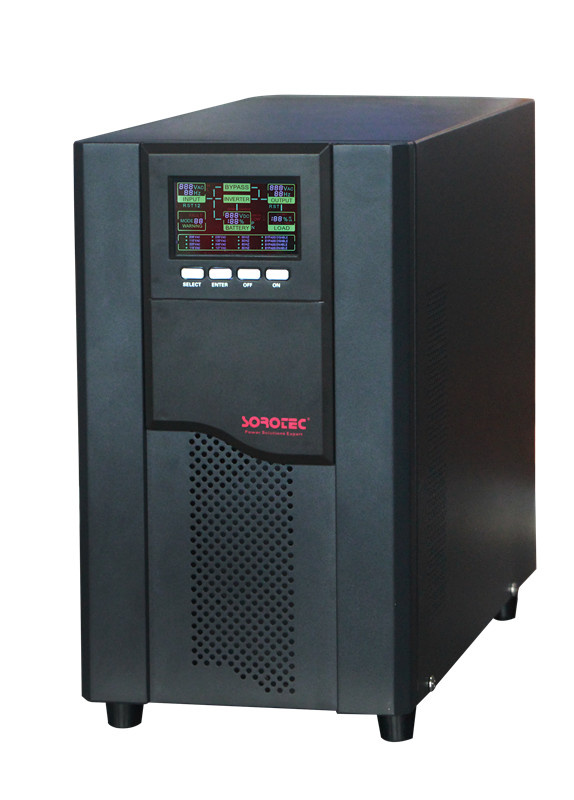

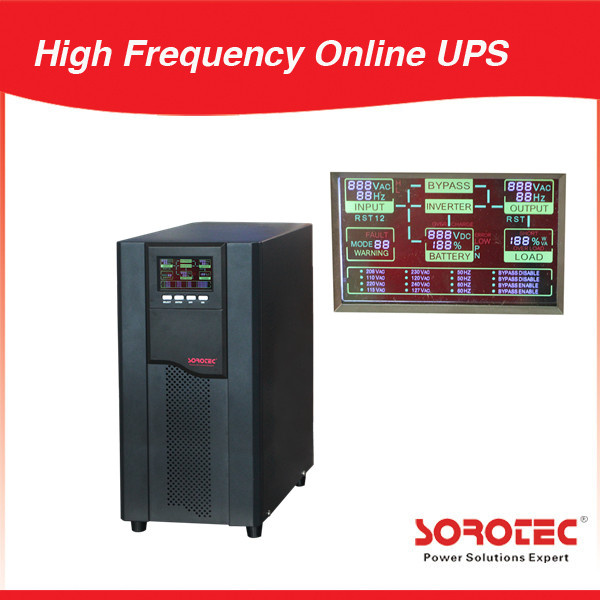

Single Phase High Frequency 1kVA - 20kVA Power Online UPS for Telecom
HP9116C /HP9316C 1-20KVA (1Ph in/1 Ph out& 3Ph in/1 Ph out) PLUS Series High Frequency Online UPS
Model :1kva-20kva
Nominal Voltage :220/230/240/380vac
Nominal Frequency:40-70hz
Output Power Factor :0.9
Parallel Working: Maximum 3PCS UPS
Application:
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System.
Muilti-function and Friendly Design
Advanced Parallel Technology
Stable parallel control technology make sure current sharing to 1%.
Select trip technology can avoid and isolation system fault then improved system availability.
Flexible extension capacity and redundance management that can satisfy all kinds of requirements.
Support maximum 3 units for parallel working Flexible strategy.
Flexible Strategy
On line mode provides higher system availability.
High efficiency mode provides more economic operation.
Frequency conversion provides more stable output.
More Flexible and Powerful Extendable Capacity
Battery Type Can Be Choice
1.Battery voltage can be choice depend on capacity , can satisfy different requirement.
2.Convenience to get more back up time and lower system invests.
3.Convenience to save cost of battery.
4.Intelligent battery monitors Charge current can be adjust.
Charge Current Can Be Adjust
Standant charge current 4A.
Support more discharge time and more capacity battery for 8A charger Input topology design.
Input Technology Design
1.Support three phase input or single phase input for three phase UPS
2.Super wide input voltage and frequency range suitable for bad power electirc environment
3.Digital control DSP technology and best power component make the system safe and reliable
Higher Power Factor /Higher Efficiency /Support Three Phase Input
Output Power Factor Up To 0.9
Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
Input power factors up to 0.99
Three phase input model support three phase PFC , input THDI<5%
Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%
Efficiency up to 93.5%when take the 30%load
ECO mode efficiency up to 98%
Technical Specifications:
| Model | HP9116C/HP9316C 10-20KVA PLUS |
| 10KT-XL | 15KT-XL | 20KT-XL |
| Rated Power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW |
| Rated Voltage | 220VAC/380VAC 3phase with ground |
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) |
| Input |
| Voltage Range | Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load) |
| Power Factor | >0.95(Three phase) | ≥0.99 |
| Output |
| Voltage Regulation | 208/220/230/240VAC (±1%) |
| Frequency Regulation | 50/60HZ±0.05 Hz |
| Power Factor | 0.9 |
| Voltage Distortion | Linear load<2% ,Non-Linear load<5% |
| Overload Capability | 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms |
| Current Crest Ratio | 3:01 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 192VDC | 192/216V/240VDC |
| Recharge Current | 4A | 4A (8A optional) |
| Display |

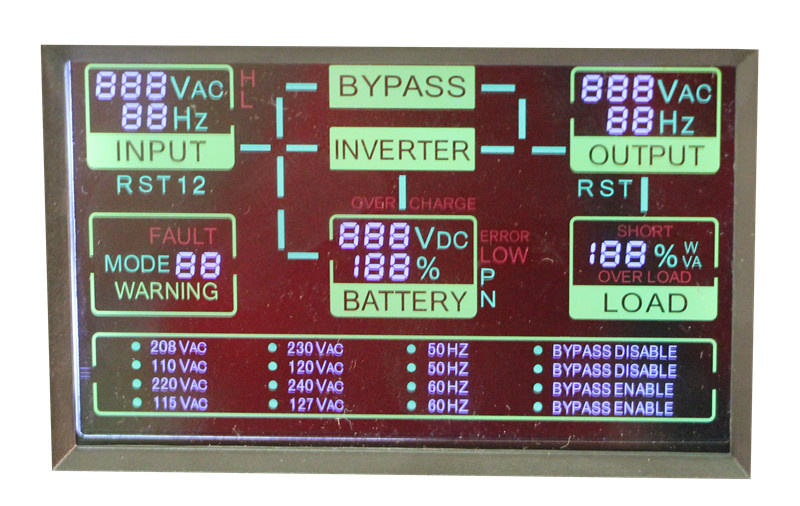

| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. |
| Communication |

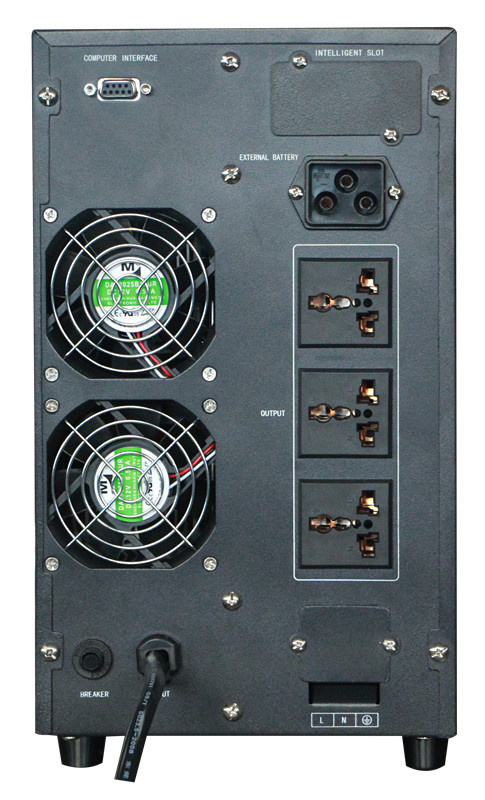

| Interface | Smart RS232,SNMP card (optional) USB (optional) |
| Environment |
| Operation Temperature | 0~40ºC |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Sea Level Elevation | <1500m |
| Noise Level (1m) | <55dB |
| Physics Characteristic |
| Weight(KG) | 16.9 | 31 |
| Dimensions :(Wx D x H)mm | 212X420X500 | 248X565X500 |
